Range of sizes 8 standard colors
※ All custom RAL available
Drawer load capacities up to 150kg
Bespoke service for over-sized carts
Fully customizable to meet your specific needs
PRODUCT INFORMATION
-Made from selected thickened steel sheets for strong load-bearing capacity.
-The drawers can be freely partitioned internally.
-Equipped with ABS transparent label holders with a flip-cover design for clear identification at a glance.
-Includes 2 fixed casters and 2 swivel casters with brakes.
-This professional service trolley is mainly used in production plants, service stations, and tool workshops.
PRODUCT SPECIFICATIONS
T1005 Series Heavy Duty Tool Cart
| Model No. | Size(mm) | Drawer Qty | Slide | Single Drawer Load | Drawer Extension | N.W./G.W. | CBM(m³） |
| T100508504EM | W1000*D500*H720+130 | 3 | Single Slide | 100KG | 85% | 72.2KG/80KG | 0.45 |
| T100508504VM | W1000*D500*H720+130 | 3 | Double Slide | 150KG | 100% | 79.2KG/87KG | 0.45 |

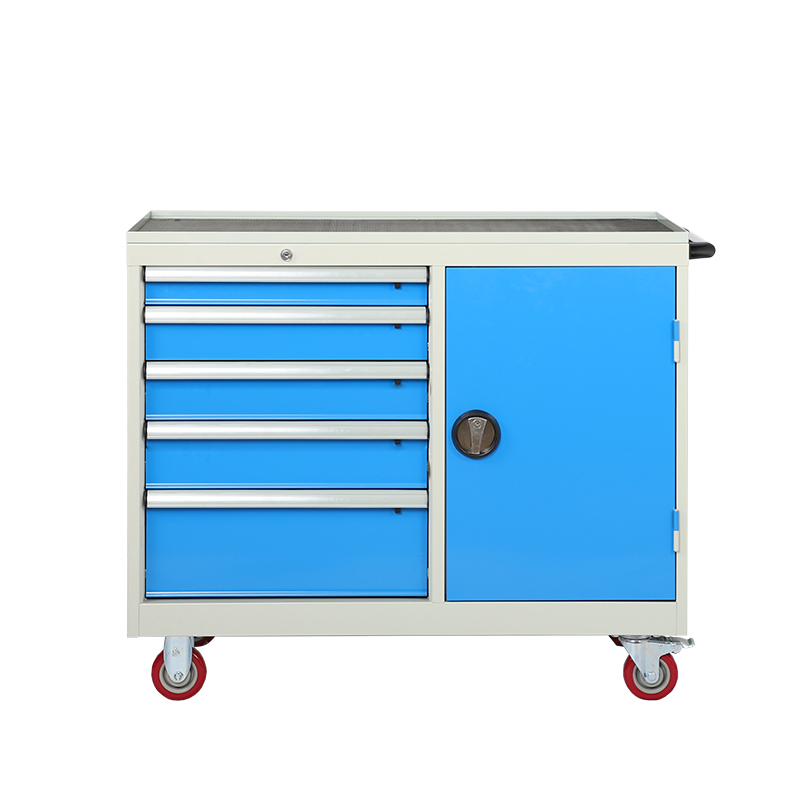

| T100508505EM | W1000*D500*H720+130 | 4 | Single Slide | 100KG | 85% | 77.2KG/85KG | 0.45 |
| T100508505VM | W1000*D500*H720+130 | 4 | Double Slide | 150KG | 100% | 84.2KG/92KG | 0.45 |
| GT100508504EM | W1000*D500*H720+130+450 | 3 | Single Slide | 100KG | 85% | 73.2KG/81KG | 0.45 |

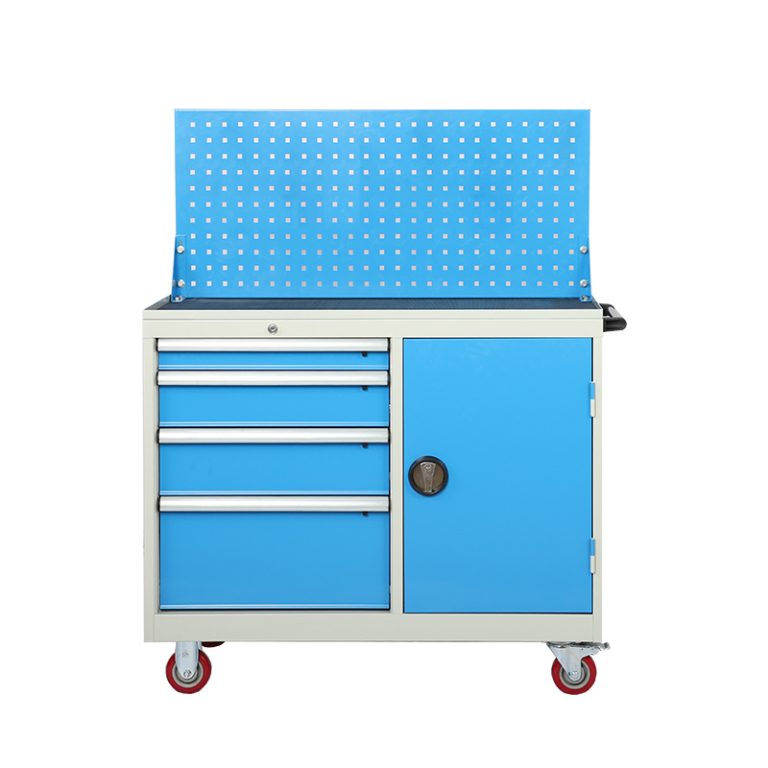

| GT100508504VM | W1000*D500*H720+130+450 | 3 | Double Slide | 150KG | 100% | 80.2KG/86KG | 0.45 |
| GT100508505EM | W1000*D500*H720+130+450 | 4 | Single Slide | 100KG | 85% | 78.2KG/86KG | 0.45 |

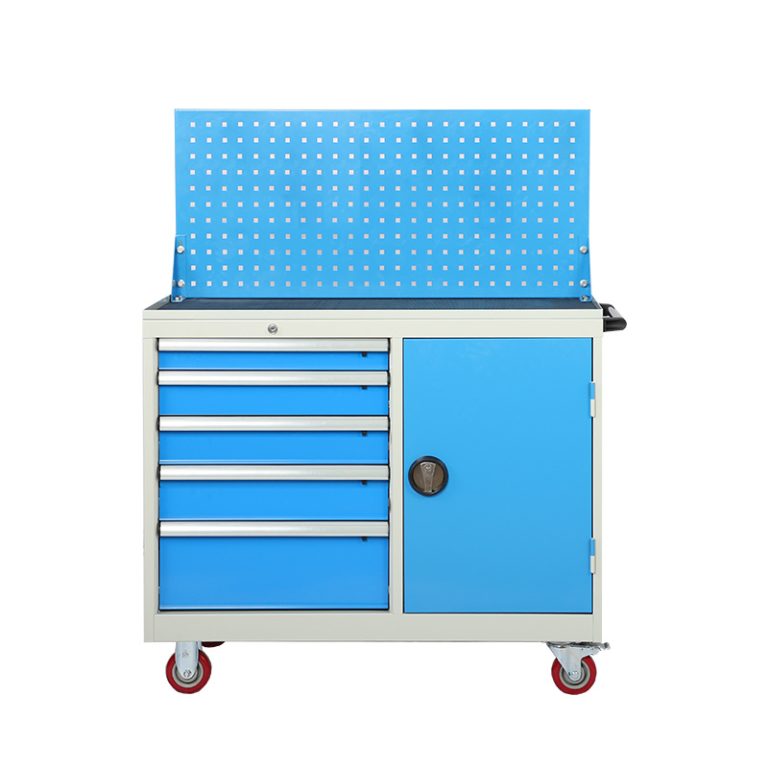

| GT100508505VM | W1000*D500*H720+130+450 | 4 | Double Slide | 150KG | 100% | 85.2KG/93KG | 0.45 |
PRODUCT FEATURES
Non-slip rubber
Anti-slip and wear-resistant rubber mats, quiet, anti-slip and wear-resistant, more worry about storing tools.
Drawer divider (optional)
Pre-formed divider holes are reserved in the drawer, and optional front-to-back adjustable dividers can be configured. Supports 3×3, 3×4, 3×5, and other customized partition layouts. The drawer space can be freely organized to maximize space utilization.
Single and double slide rail
Single slide drawer:
Supports up to 100 kg with 85% smooth extension, ideal for standard industrial storage.
Double slide drawer:
Double-slide design supports 150 kg with 100% full extension, perfect for heavy-duty storage and access.
Centralized lock
Equipped with a central locking system, all drawers can be locked or unlocked with a single lock. Each lock comes with two keys.
Self-locking system
Equipped with self-locking buckle design, effectively preventing drawers from sliding off accidentally.
Wheel base
Made of 2mm steel plate stamped at one time, it can be installed and used with 3-inch,4-inch,5-inch,6-inch,and 8-inch casters.
CRAFTED FOR PROFESSIONALS
Whether for small components or larger tools, our tool cabinets are designed to deliver reliable and efficient storage solutions, meeting the unique needs of workshops and industrial facilities with precision and excellence.
Trust ROCKSHELL for heavy-duty drawers that are built to endure and elevate your workspace efficiency.
