Range of sizes 8 standard colors
※ All custom RAL available
Bespoke service for over-sized cabinets
Can be fully personalised
Safe, neat and orderly storage
Long-Lasting Warranty
PRODUCT INFORMATION
1.This workstation integrates a variety of efficient storage solutions, including a seven-drawer tool cabinet with sturdy slide rails and a single drawer that can support 45KG to meet daily storage needs.
2.It also includes a six-drawer tool cart with a black striped non-slip pad on the top to increase stability when placing tools. The front of the tool cart is equipped with two ergonomically designed bridge handles for users to easily push or pull it.
3.Four industrial-grade 4×1.25-inch casters are installed on the bottom, including two fixed wheels and two universal wheels with independent brakes, which take into account the convenience of movement and safety when fixed.
4.The tool door cabinet adopts a sturdy and durable double door structure with adjustable shelves reserved inside to improve storage efficiency.
5.The top cabinet with hinged doors provides ample space for storing large tools. The hanging backboard behind the workbench effectively expands the vertical storage space for tools.
6.The standard footprint is 2040x500x30 mm. To better meet your specific needs, we also offer personalized services including size customization and material selection.
PRODUCT SPECIFICATIONS

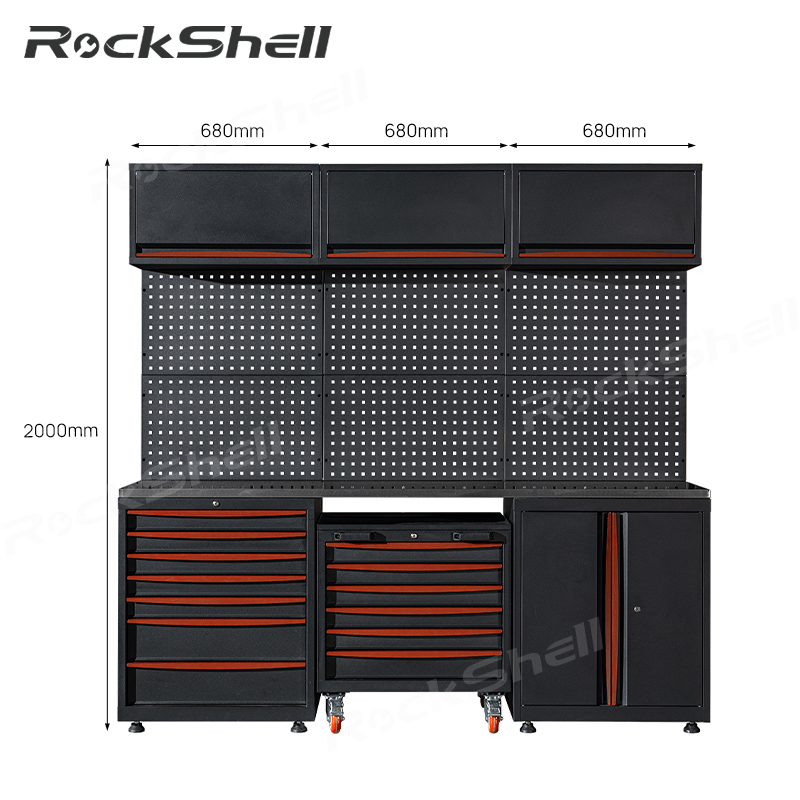

WB-17 Series Industrial Storage Cabinet
| Model No. | Size(mm) | Number Of Configurations | Total Table Load | N.W./G.W. | CBM(m³） |
| WB-17 | W2037*D540*H（850+1150） | 17 | 500KG | 220.6KG/241.3KG | 1.16 |
PRODUCT FEATURES
Top hanging cabinet
The top cabinet are equipped with free-stop flap stay hardware, allowing the door to stop at any position.
Three section ball bearing rail
Ball slide bearing drawer load capacity 45kg.100% extension,50,000 time opening and closing.
30mm stainless steel countertop
The front and rear integrated shelf brackets, the distance between the shelves can be freely adjusted up and down, flexibly adapting to the storage needs of different items.
Air drum cabinet
Operates freely within a 10-meter range, with adjustable length that can be fixed at any position after pulling out.
Adjustable Shelf
Adjustable shelves inside,allowing height adjustment according to needs.
REGARDING PRODUCT FAQS
Yes, this is welcomed here, no matter our regular model or new custom type, we can make sample firstly and deliver it to you.
We are a professional metal furniture manufacturer with 19 years experience.
Our products are packed in 5-layer corrugated cartons. For larger quantities, we use pallets for unified handling. For heavy-duty or oversized items, the cartons are additionally reinforced with wooden frames after packing to ensure safe transportation.
