Module combination
Table height adjustment
Non-standard customization
Integral anti-static
Strong bearing
PRODUCT INFORMATION
-Humanized design, comfortable and beautiful, in line with ergonomic principles, improve work efficiency.
-Modular design, flexible and changeable, a variety of accessories can be combined at will.
-Standardized design, can meet customers’ customized products according to their needs.
-Imported high-quality countertops, with overall anti-static, fire-proof and wear-resistant characteristics.
-The metal surface is processed by pickling, phosphating, high-voltage electrostatic powder spraying and other processes, which is smooth and beautiful.
-The overall anti-static design fundamentally eliminates the threat of static electricity to the product.
PRODUCT SPECIFICATIONS
GWJ②-3222001 Series ESD Workbenches
| Model No. | Size(mm) | Number Of Configurations | Total Table Load | N.W./G.W. | CBM(m³） |
| GWJ15075②-3222001 | W1500*D750*H（670+1050） | 29 | 500KG | 109KG/114.5KG | 0.4 |

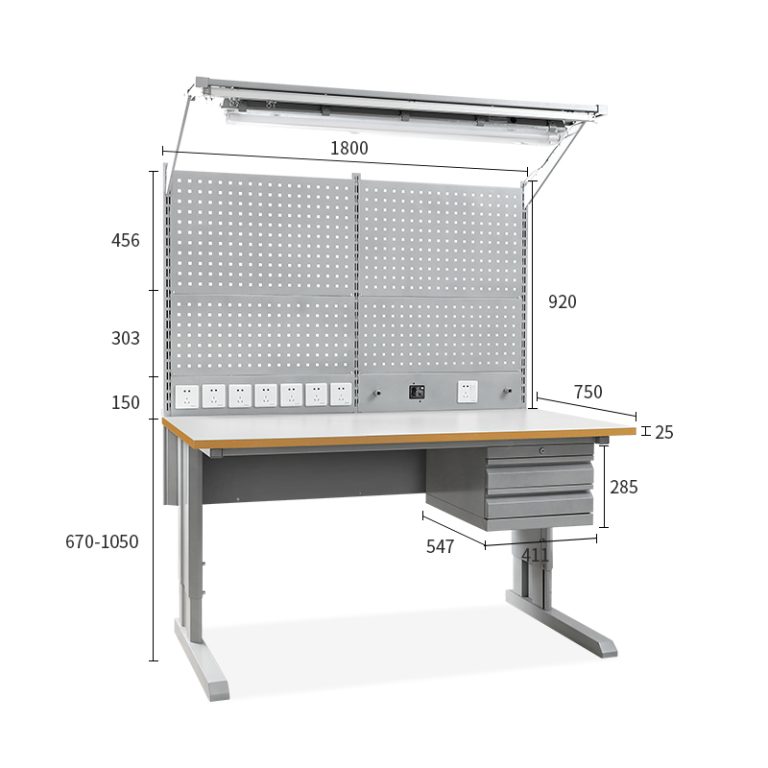

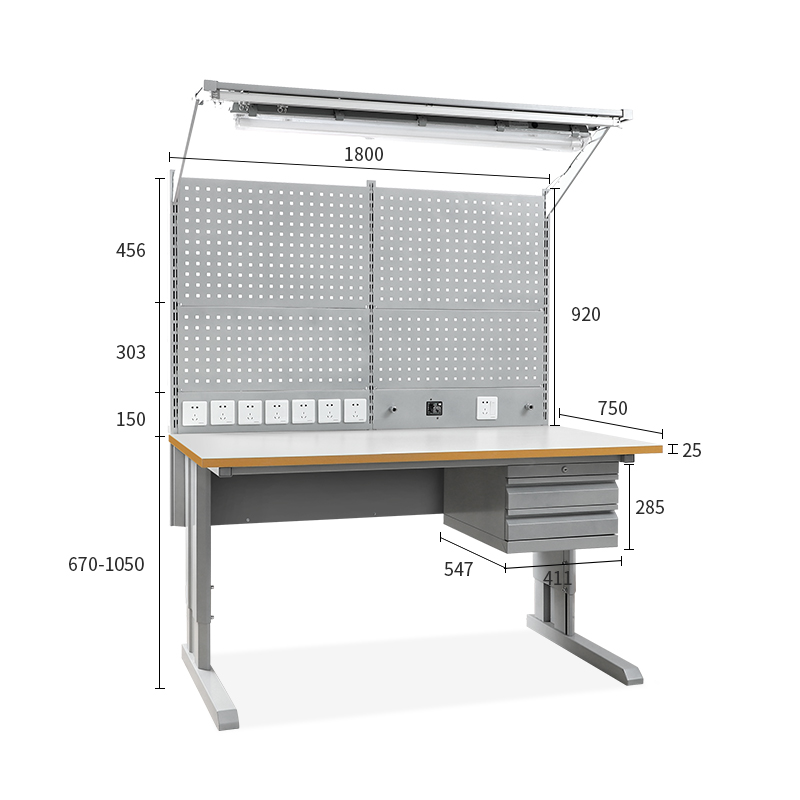

| GWJ18075②-3222001 | W1800*D750*H（670+1050） | 29 | 500KG | 113KG/118.5KG | 0.4 |
| GWJ15075②-3222201 | W1500*D750*H（670+1050） | 32 | 500KG | 120.8KG/126.8KG | 0.44 |

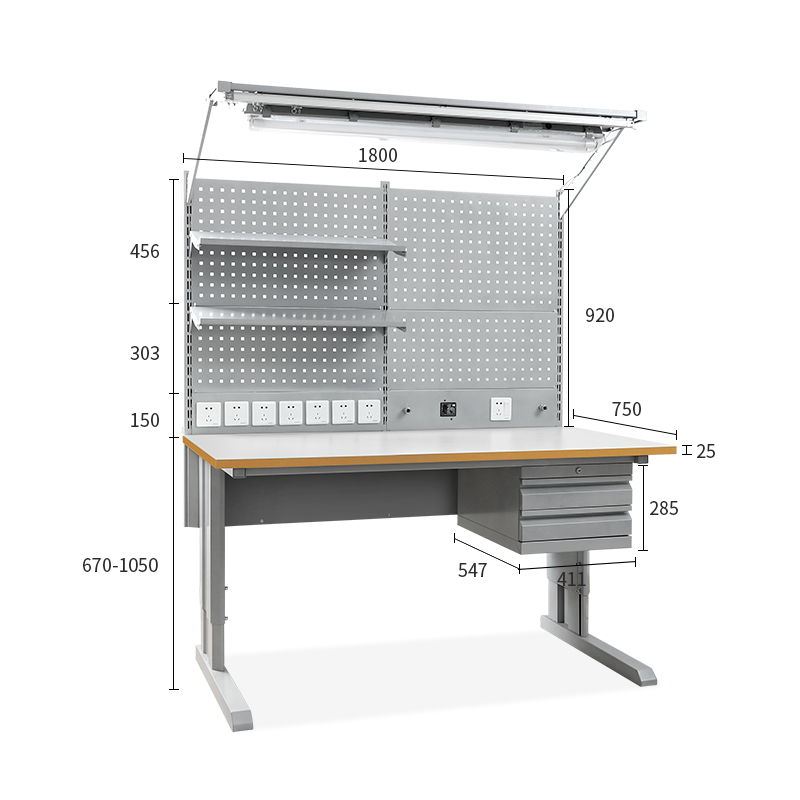

| GWJ18075②-3222201 | W1800*D750*H（670+1050） | 32 | 500KG | 125.6KG/131.6KG | 0.44 |
PRODUCT FEATURES
Countertop material
25mm german-imported countertop,providing excellent resistance to acids,alkalis, wear, oil, and impact whileeffectively dissipating static electricity.
Hanging panel
1.Pegboard/Louvered panel/Document hanging panel are optional.
2.Two standard size(Support customization).
Adjustable tilted shelf (optional)
The shelf height is adjustable, with a 15°tilt angle adjustable and a 20mm foldededge.
Hanging light board and rail system (Optional)
1.The lamp board is adjustable in height, front and back.
2.Light panel, tri-proof lamp(Tri-proof light: dustproof, waterproof, and corrosion-proof), and slide are optional.
Two drawer hanging cabinet
1.Refined three-stage rail bead slide bearing drawer load 45kg.100% extension, 50000 times opening and closing.
2.One-piece pull panel.
I-beam table legs
Height is adjustable by 350mm, with a load capacity up to 500kg.
REGARDING PRODUCT FAQS
We are a factory, so we can provide you competitive price.
The size of your shipment and the shipping method will determine the cost. We hope that you will provide us with your preferred shipping method (air or ocean) and your assigned port or airport when we ask for the shipping cost. We would appreciate it if you could take a few minutes to help us estimate the cost based on the information you provide.
Qingdao port is the nearest, Shanghai or other port is also available.
