Module combination
Table height adjustment
Non-standard customization
Integral anti-static
Strong bearing
PRODUCT INFORMATION
-Humanized design, comfortable and beautiful, in line with ergonomic principles, improve work efficiency.
-Modular design, flexible and changeable, a variety of accessories can be combined at will.
-Standardized design, can meet customers’ customized products according to their needs.
-Imported high-quality countertops, with overall anti-static, fire-proof and wear-resistant characteristics.
-The metal surface is processed by pickling, phosphating, high-voltage electrostatic powder spraying and other processes, which is smooth and beautiful.
-The overall anti-static design fundamentally eliminates the threat of static electricity to the product.
PRODUCT SPECIFICATIONS
GWJ②-3220100 Series ESD Workbenches
| GWJ15075②-3220100 | W1500*D750*H（670+1050） | 27 | 500KG | 93.5KG/99KG | 0.4 |

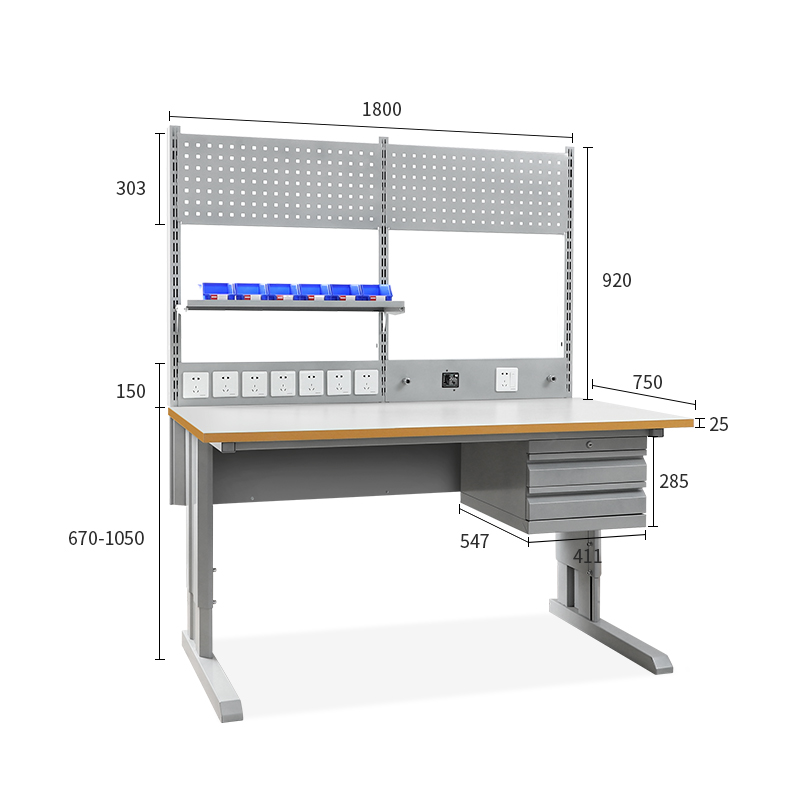

| GWJ18075②-3220100 | W1800*D750*H（670+1050） | 27 | 500KG | 103.7KG/109.7KG | 0.4 |

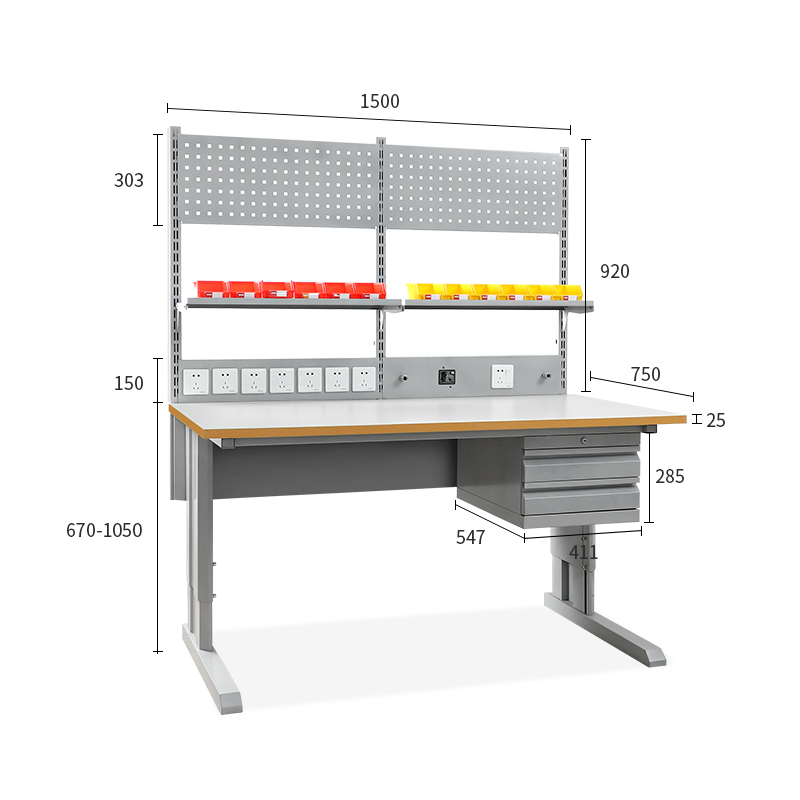

| GWJ15075②-3220200 | W1500*D750*H（670+1050） | 28 | 500KG | 95.5KG/101KG | 0.4 |
| GWJ18075②-3220200 | W1800*D750*H（670+1050） | 28 | 500KG | 105.4KG/111.4KG | 0.4 |
PRODUCT FEATURES
Countertop material
25mm german-imported countertop,providing excellent resistance to acids,alkalis, wear, oil, and impact whileeffectively dissipating static electricity.
Hanging panel
1.Pegboard/Louvered panel/Document hanging panel are optional.
2.Two standard size(Support customization).
Adjustable tilted shelf (optional)
The shelf height is adjustable, with a 15°tilt angle adjustable and a 20mm foldededge.
Hanging light board and rail system (Optional)
1.The lamp board is adjustable in height, front and back.
2.Light panel, tri-proof lamp(Tri-proof light: dustproof, waterproof, and corrosion-proof), and slide are optional.
Two drawer hanging cabinet
1.Refined three-stage rail bead slide bearing drawer load 45kg.100% extension, 50000 times opening and closing.
2.One-piece pull panel.
I-beam table legs
Height is adjustable by 350mm, with a load capacity up to 500kg.
REGARDING PRODUCT FAQS
Qingdao port is the nearest, Shanghai or other port is also available.
For products in stock, samples can be provided at the regular price. For out-of-stock or custom sample products, a sample fee of twice the regular price will be charged.
If you have a drawing of your wanted workbench, You can show the drawing to our salesman, then will discuss with our engineer about the produce process, get the Detailed Quotation list.
If you do not have the drawing, pleas tell our salesman what the workbench size, functions, configurations and special needs, Our sales man will make a Drawing with our engineer. We will give you the quotation list when you confirm the drawing and details.
