Range of sizes 8 standard colors
※ All custom RAL available
Bespoke service for over-sized cabinets
Can be fully personalised
Safe, neat and orderly storage
Long-Lasting Warranty
PRODUCT INFORMATION
1.High-Capacity Eight-Drawer Tool Cabinet: The heavy-duty industrial storage cabinet features an integrated eight-drawer tool cabinet, significantly increasing storage capacity and enabling refined tool management.

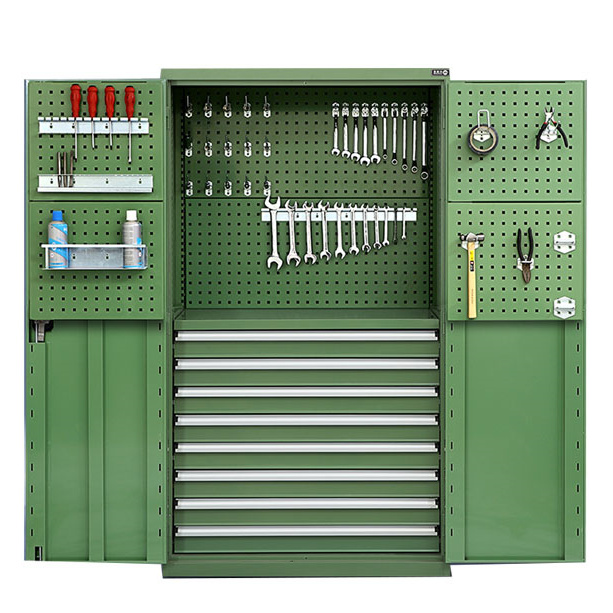

2.Extensive Hanging Space: Four standard square hole hanging boards are located inside the cabinet doors, and two reinforced square hole hanging boards are on the back, providing ample and convenient space for hanging various tools with hooks, improving visibility and access.
3.Adjustable and Robust Internal Shelf: The cabinet includes a high-strength internal shelf capable of safely and stably supporting heavy equipment or materials, with flexible height adjustment to maximize internal space utilization.
4.Enhanced Security with Multi-Point Locking: The cabinet employs a precise cylindrical lock linked to locking rods at the top and bottom, creating a multi-point locking mechanism that ensures smooth operation and protects the security of stored items.
PRODUCT SPECIFICATIONS
GF18042 Series Industrial Storage Cabinet
| Model No. | Size(mm) | Number Of Configurations | Total Weight of Laminate | N.W./G.W. | CBM(m³） |

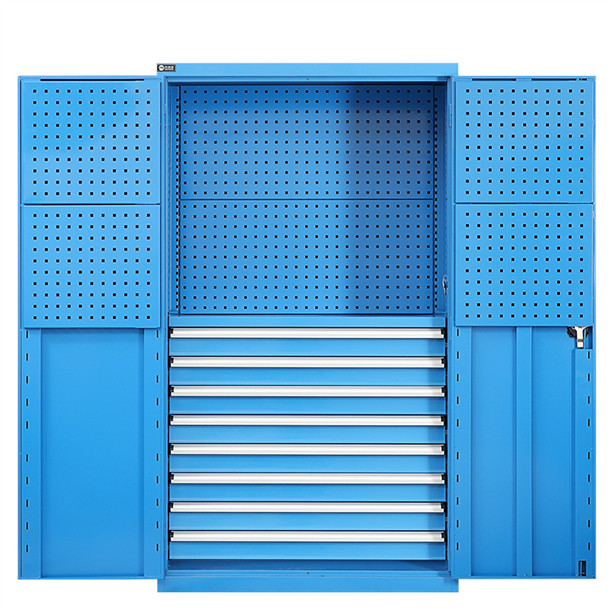

| GF18042-5015 | W1023*D500*H1800 | 16 | 100KG | 155.7KG/160KG | 0.93 |

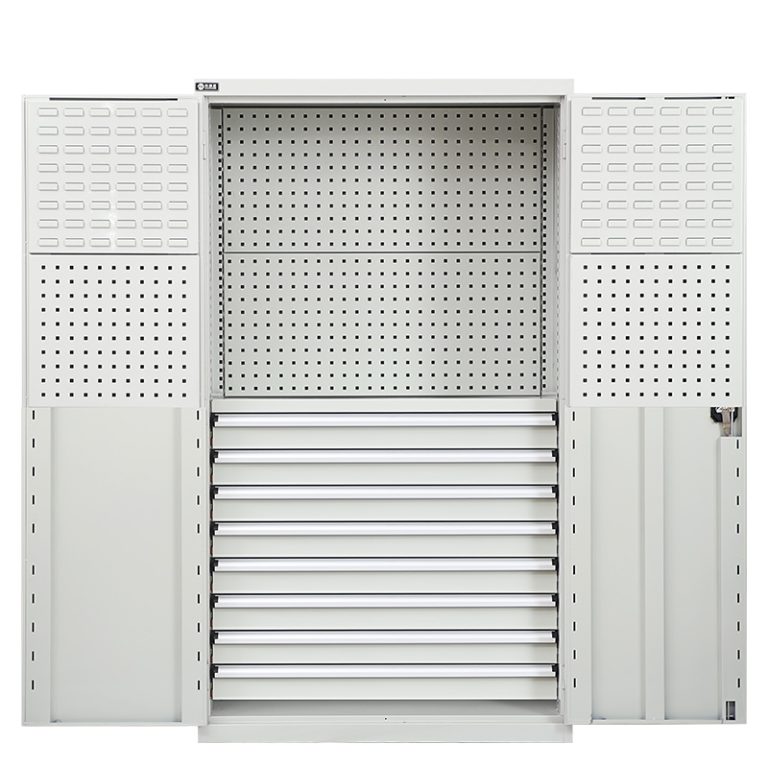

| GF18222-7035 | W1023*D500*H1800 | 16 | 100KG | 155.7KG/160KG | 0.93 |

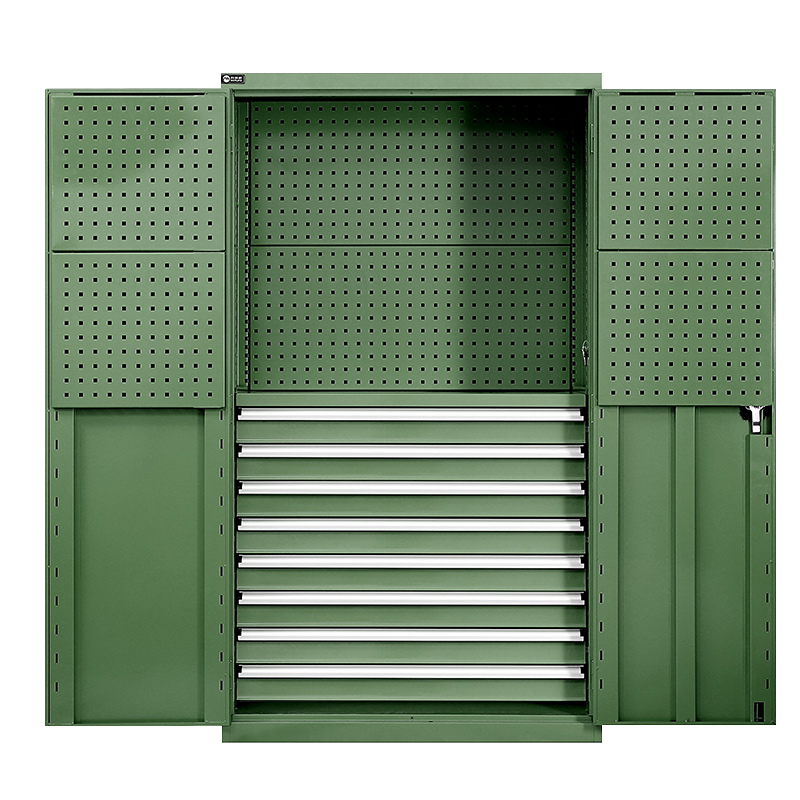

| GF18042-6011 | W1023*D500*H1800 | 16 | 100KG | 155.7KG/160KG | 0.93 |
PRODUCT FEATURES
Patented modular design
The hanging panel, louvered panel, and square-hole pegboard are freely removable and interchangeable. The back pegboard, adjustable shelf, and drawers can be configured as needed.
Drawer load capacity
The slide rail is made of 3mm high-quality cold-rolled steel plate. Standard single drawer has a load capacity of 100kg and 85% extension for daily access. For special applications, full-extension(100%) drawers are available with a 150kg load capacity.
Adjustable shelf
The shelf is supported by integrated front and rear laminate brackets. It can be adjusted up and down, with a maximum load capacity of 150 kg per shelf.
Refined copper core round lock
Brass lock cylinder, with the upper and lower lock rod connected locking mechanism, to ensure the smooth operation of the lock, high security.
Adjustable feet
Used to compensate for uneven floors and ensure stable placement of the storage cabinet.Adjustable range: 40–80 mm.
REGARDING PRODUCT FAQS
Yes, we offer customization services and can design and manufacture cabinets to meet specific needs, including size, material, color, internal configuration, etc.
T/T 30% deposit in advance, with the remaining 70% balance payable before shipment.
For most standard products, we have ready stock available.
For customized products, the lead time is 15–20 days.
For large orders, please contact us directly to confirm the lead time.
