Range of sizes 8 standard colors
※ All custom RAL available
Bespoke service for over-sized cabinets
Can be fully personalised
Safe, neat and orderly storage
Long-Lasting Warranty
PRODUCT INFORMATION
1.Adjustable and Heavy-Duty Interior: The cabinet features a high-strength, adjustable interior divider capable of withstanding a uniform load of up to 100 kg, allowing users to optimize vertical storage space.
2.Secure and Convenient Door Design: It has a single sliding door with a reliable three-point locking system that enhances anti-theft security and prevents accidental opening.
3.Integrated High-Capacity Drawers: There are 4 robust drawers beneath the cabinet, each with a load capacity of 150 kg, facilitating organized storage of various items.

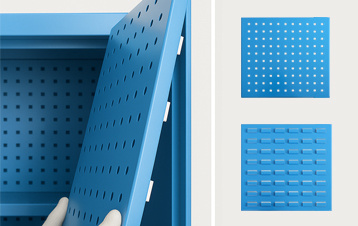

4.Optional Modular Rear Hanging Board: For increased flexibility and visual management, a modular rear hanging board system is available, allowing users to customize tool organization with different hooks and accessories.
PRODUCT SPECIFICATIONS

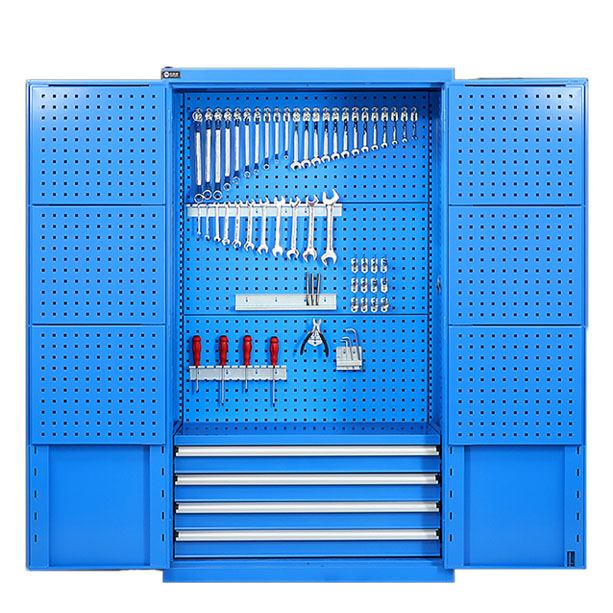

14063 Series Industrial Cabinet
| Model No. | Size(mm) | Number Of Configurations | Total Weight of Laminate | N.W./G.W. | CBM(m³） |
| GF14063-5015 | W1023*D500*H1800 | 15 | 100KG | 135.7KG/140KG | 0.93 |
| GF14243-7035 | W1023*D500*H1800 | 15 | 100KG | 135.7KG/140KG | 0.93 |
| GF14603-6011 | W1023*D500*H1800 | 15 | 100KG | 135.7KG/140KG | 0.93 |
PRODUCT FEATURES
Patented modular design
Made from 3mm thick high-strength stamped steel, it is durable and offers a load-bearing capacity of up to 150 kg. The drawer can be fully extended for easy access to items and can also be replaced with load-bearing tracks to flexibly adapt to different needs.

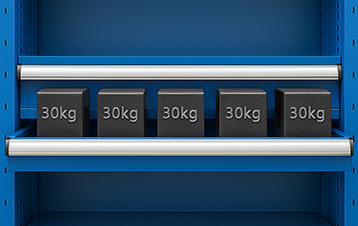

Drawer load capacity
The slide rail is made of 3mm high-quality cold-rolled steel plate. Standard single drawer has a load capacity of 100kg and 85% extension for daily access. For special applications, full-extension(100%) drawers are available with a 150kg load capacity.

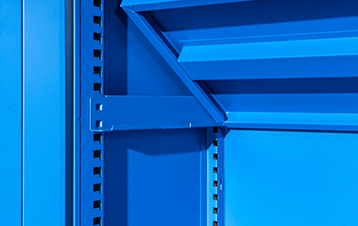

Adjustable shelf
The shelf is supported by integrated front and rear laminate brackets. It can be adjusted up and down, with a maximum load capacity of 150 kg per shelf.

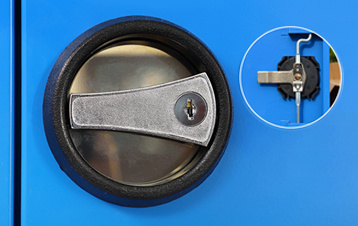

Refined copper core round lock
Brass lock cylinder, with the upper and lower lock rod connected locking mechanism, to ensure the smooth operation of the lock, high security.

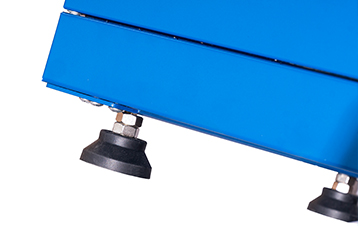

Adjustable feet
Used to compensate for uneven floors and ensure stable placement of the storage cabinet.Adjustable range: 40–80 mm.
REGARDING PRODUCT FAQS
Periodically wipe the inside and outside of the cabinet with a damp cloth to remove dirt, dust, and other debris. Use a mild soap solution if necessary, but avoid abrasive cleaners that can damage the surface. Next, lubricate the cabinet’s locks, hinges, and moving parts frequently to prevent rust and ensure smooth operation. From time to time, inspect the cabinets for signs of wear and tear, looking for dents, scratches, or corrosion. If you find any problems, address them promptly to prevent further damage. Finally, make sure to occasionally move adjustable shelves to accommodate changes in the size and number of stored items.
12 or 24 inches is the standard depth for tall cabinets. They usually match the depth of the base cabinets.
Yes, We can customize in terms of size, color, and material.
