Range of sizes 8 standard colors
※ All custom RAL available
Bespoke service for over-sized cabinets
Can be fully personalised
Safe, neat and orderly storage
Long-Lasting Warranty
PRODUCT INFORMATION
1.Adjustable Shelving for Flexible Storage: The industrial storage cabinet features height-adjustable shelves, allowing users to customize the spacing based on the size and type of stored items to maximize vertical space utilization.
2.Durable and Corrosion-Resistant Construction: The main body of the shelves is made of 1.0mm thick high-quality cold-rolled steel plate with a 1.5mm thick electrostatic spray coating, enhancing load-bearing capacity, impact resistance, and providing excellent anti-corrosion properties.
3.Customizable Number of Shelves: Users can easily add or remove shelves to create personalized storage solutions based on their specific needs.
4.High-Strength Overall Structure: The entire cabinet structure is constructed from high-strength cold-rolled steel, ensuring long-term stability and durability in industrial settings.
PRODUCT SPECIFICATIONS
F40000 Series Industrial Cabinet
| Model No. | Size(mm) | Number Of Configurations | Total Weight of Laminate | N.W./G.W. | CBM(m³） |

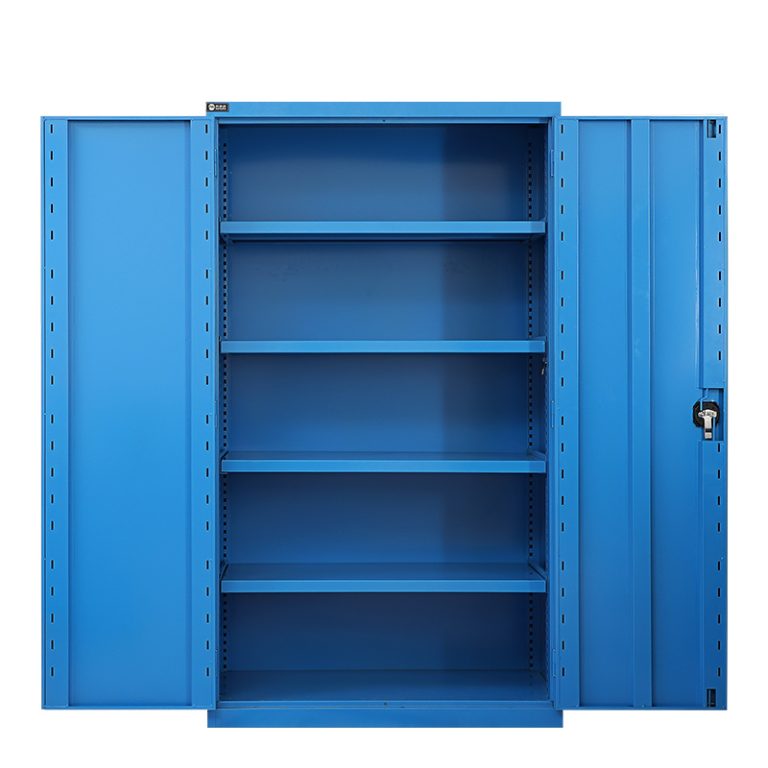

| GF40000-5015 | W1023*D500*H1000 | 5 | 150KG | 92.8KG/97KG | 1.00 |
| GF40000-7035 | W1023*D500*H1000 | 5 | 150KG | 92.8KG/97KG | 1.00 |
| GF40000-6011 | W1023*D500*H1000 | 5 | 150KG | 92.8KG/97KG | 1.00 |
| GF60000-5015 | W1023*D500*H1000 | 7 | 150KG | 104.2KG/108KG | 1.00 |

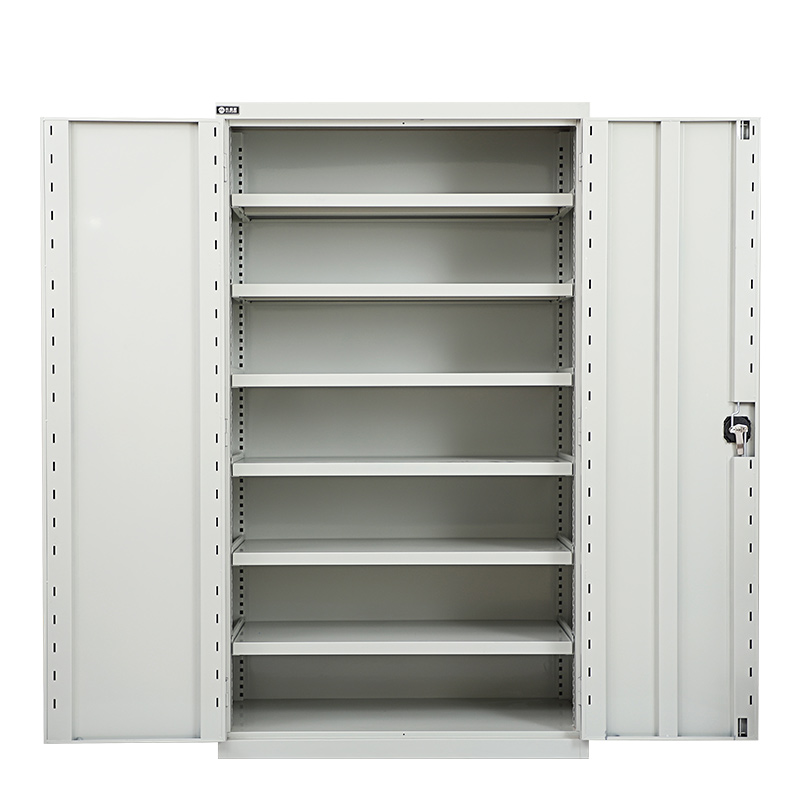

| GF60000-7035 | W1023*D500*H1000 | 7 | 150KG | 104.2KG/108KG | 1.00 |
| GF60000-6011 | W1023*D500*H1000 | 7 | 150KG | 104.2KG/108KG | 1.00 |
| GF80000-5015 | W1023*D500*H1000 | 9 | 150KG | 115.6KG/120KG | 1.00 |
| GF80000-7035 | W1023*D500*H1000 | 9 | 150KG | 115.6KG/120KG | 1.00 |

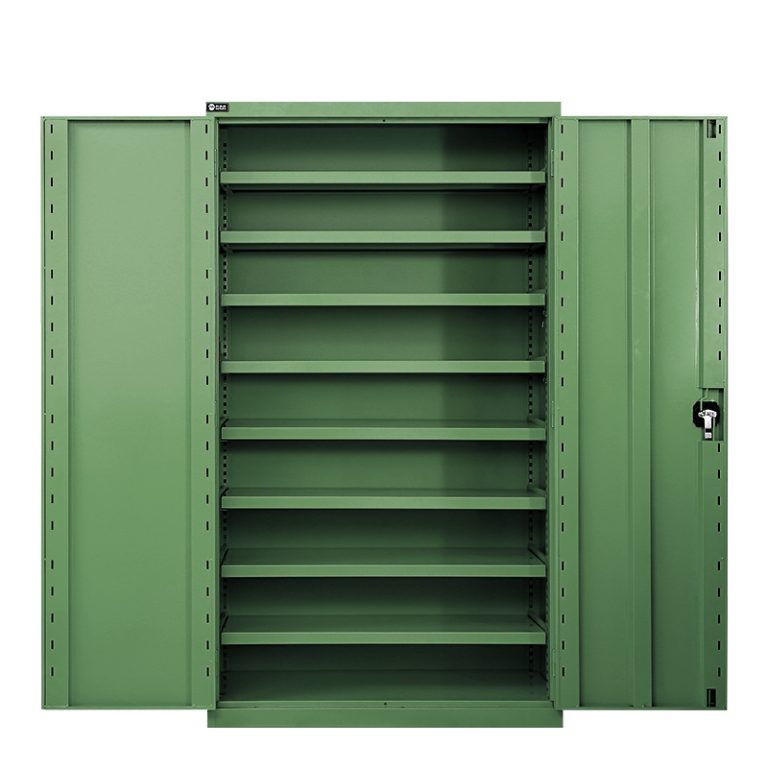

| GF80000-6011 | W1023*D500*H1000 | 9 | 150KG | 115.6KG/120KG | 1.00 |
PRODUCT FEATURES
Patented modular design
The hanging panel, louvered panel, and square-hole pegboard are freely removable and interchangeable. The back pegboard, adjustable shelf, and drawers can be configured as needed.
Drawer load capacity
The slide rail is made of 3mm high-quality cold-rolled steel plate. Standard single drawer has a load capacity of 100kg and 85% extension for daily access. For special applications, full-extension(100%) drawers are available with a 150kg load capacity.
Adjustable shelf
The shelf is supported by integrated front and rear laminate brackets. It can be adjusted up and down, with a maximum load capacity of 150 kg per shelf.
Refined copper core round lock
Brass lock cylinder, with the upper and lower lock rod connected locking mechanism, to ensure the smooth operation of the lock, high security.
Adjustable feet
Used to compensate for uneven floors and ensure stable placement of the storage cabinet.Adjustable range: 40–80 mm.
REGARDING PRODUCT FAQS
Our factory has gained 1S09001-2018 authentication. Quality makes us who we are today, We focus on quality from the very beginning to the end.
Yes, of course. There are already many customers cooperating with us in this way
We have over 20 years in the business with extensive knowledge of technology and market
Our staff will take photos in each section: cutting plate, bending, welding, painting, assembling, packing, loading, etc. And we will send you the latest news in each section with detailed photos, for your better knowledge of your order status.
