Range of sizes 8 standard colors
※ All custom RAL available
Bespoke service for over-sized cabinets
Can be fully personalised
Safe, neat and orderly storage
Long-Lasting Warranty
PRODUCT SPECIFICATIONS
F21002 Series Industrial Cabinet
| Model No. | Color | Size(mm) | Style | Shelf Load Capacity | Single Drawer Load | Drawer Extension | N.W./G.W. | CBM(m³） |
| GF21002-5015 | LIGHT BLUE | W1023*D500*H1800 | 1 Drawer & 2 Shelves & 2 Back panel | 100KG | 150KG | 100% | 98.9KG/103KG | 1.00 |
| GF21002-7035 | LIGHT GRAY | W1023*D500*H1800 | 1 Drawer & 2 Shelves & 2 Back panel | 100KG | 150KG | 100% | 98.9KG/103KG | 1.00 |
| GF21002-6011 | MACHINE GREEN | W1023*D500*H1800 | 1 Drawer & 2 Shelves & 2 Back panel | 100KG | 150KG | 100% | 98.9KG/103KG | 1.00 |

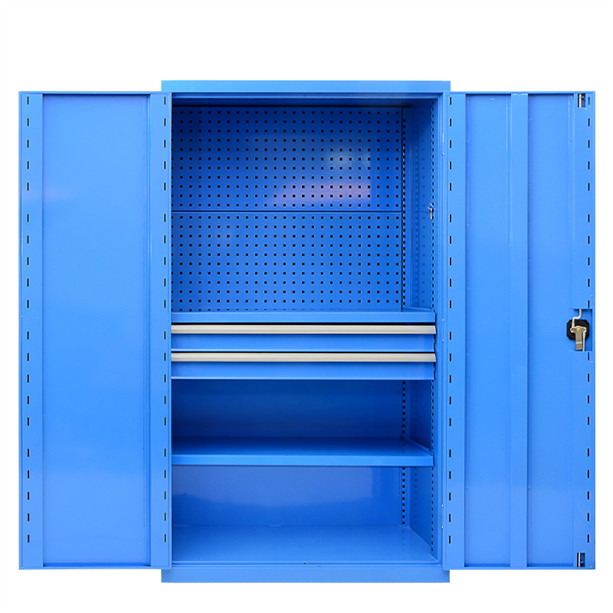

| GF22002-5015 | LIGHT BLUE | W1023*D500*H1800 | 2 Drawer & 2 Shelves & 2 Back panel | 100KG | 150KG | 100% | 106.4KG/110KG | 1.00 |
| GF22002-7035 | LIGHT GRAY | W1023*D500*H1800 | 2 Drawer & 2 Shelves & 2 Back panel | 100KG | 150KG | 100% | 106.4KG/110KG | 1.00 |
| GF22002-6011 | MACHINE GREEN | W1023*D500*H1800 | 2 Drawer & 2 Shelves & 2 Back panel | 100KG | 150KG | 100% | 106.4KG/110KG | 1.00 |
| GF23002-5015 | LIGHT BLUE | W1023*D500*H1800 | 3 Drawer & 2 Shelves & 2 Back panel | 100KG | 150KG | 100% | 113.9KG/118KG | 1.00 |

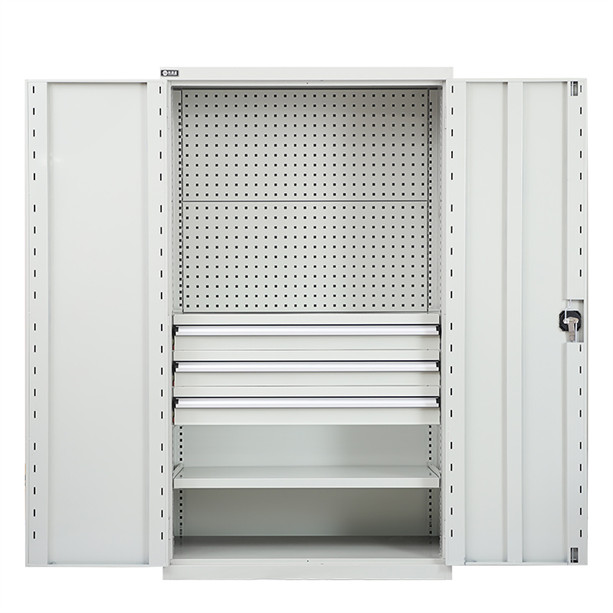

| GF23002-7035 | LIGHT GRAY | W1023*D500*H1800 | 3 Drawer & 2 Shelves & 2 Back panel | 100KG | 150KG | 100% | 113.9KG/118KG | 1.00 |
| GF23002-6011 | MACHINE GREEN | W1023*D500*H1800 | 3 Drawer & 2 Shelves & 2 Back panel | 100KG | 150KG | 100% | 113.9KG/118KG | 1.00 |
PRODUCT INFORMATION
1.Stable and Durable Structure: The cabinet features a high-strength integrated structure for excellent stability and long-lasting use.
2.Customizable Rear Hanging Boards: The rear of the cabinet has two detachable hanging boards that can be replaced with either square hole or louver hanging boards for personalized tool organization.
3.Adaptable Multi-Drawer Tool Cabinet: The internal multi-drawer tool cabinet offers a customizable number of layers to optimize tool storage, ensuring clear arrangement and preventing accidental drops. Each drawer has a high-quality bearing with a 150 kg load capacity.
4.Adjustable Interior Shelving: The number of internal shelves is flexible, and their height can be finely adjusted in 25 mm increments to accommodate items of various sizes.
PRODUCT FEATURES
Patented modular design
The hanging panel, louvered panel, and square-hole pegboard are freely removable and interchangeable. The back pegboard, adjustable shelf, and drawers can be configured as needed.
Drawer load capacity
The slide rail is made of 3mm high-quality cold-rolled steel plate. Standard single drawer has a load capacity of 100kg and 85% extension for daily access. For special applications, full-extension(100%) drawers are available with a 150kg load capacity.
Adjustable shelf
The shelf is supported by integrated front and rear laminate brackets. It can be adjusted up and down, with a maximum load capacity of 150 kg per shelf.
Refined copper core round lock
Brass lock cylinder, with the upper and lower lock rod connected locking mechanism, to ensure the smooth operation of the lock, high security.
Adjustable feet
Used to compensate for uneven floors and ensure stable placement of the storage cabinet.Adjustable range: 40–80 mm.
REGARDING PRODUCT FAQS
Can be opened 180°.
Yes, The color of products can be customized if you can meet our MOQ.
Since these are painted metal shelves, they will not rust for some time. However, if exposed to the sun, abrasion from windblown sand, etc., the paint will eventually wear thin, deteriorate, and the cabinet will rust. The length of time it will take to rust depends on the location.
