Range of sizes 8 standard colors
※ All custom RAL available
Bespoke service for over-sized cabinets
Can be fully personalised
Safe, neat and orderly storage
Long-Lasting Warranty
PRODUCT INFORMATION
1.Adjustable and Expandable Shelving: The industrial storage cabinet features adjustable shelf heights for flexible storage, and the number of shelves can be increased to maximize storage space.
2.Space-Saving Integrated Multi-Drawer Tool Cabinet: The design incorporates a multi-drawer tool cabinet, saving space while providing ample and organized storage for tools and documents.
3.Heavy-Duty Drawers with Safety Features: The drawers have a heavy-duty structure and high-quality ball bearings, allowing smooth operation under loads up to 150 kg with 100% full pull-out. A safety buckle prevents accidental drawer fall-off, and an internal interface allows for optional partition systems for refined tool organization.
4.Durable Cabinet Door with External Hinges: The cabinet door is connected with sturdy external hinges, ensuring stability and preventing deformation or sagging even with prolonged heavy use.
PRODUCT SPECIFICATIONS
31042 Series Industrial Cabinet
| Model No. | Size(mm) | Number Of Configurations | Total Weight of Laminate | Drawer Extension | N.W./G.W. | CBM(m³） |

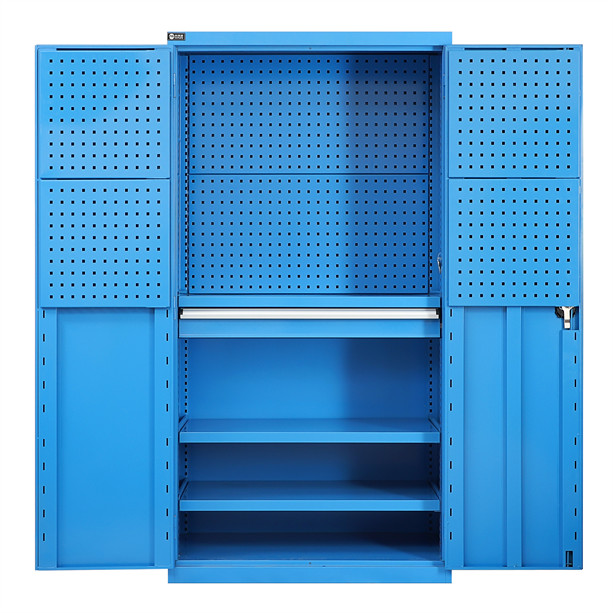

| GF31042-5015 | W1023*D500*H1800 | 11 | 150KG | 100% | 114.6KG/140KG | 1.00 |
| GF31042-7035 | W1023*D500*H1800 | 11 | 150KG | 100% | 114.6KG/140KG | 1.00 |
| GF31042-6011 | W1023*D500*H1800 | 11 | 150KG | 100% | 114.6KG/140KG | 1.00 |
| GF22042-5015 | W1023*D500*H1800 | 11 | 150KG | 100% | 114.6KG/140KG | 1.00 |
| GF22042-7035 | W1023*D500*H1800 | 11 | 150KG | 100% | 114.6KG/140KG | 1.00 |
| GF22042-6011 | W1023*D500*H1800 | 11 | 150KG | 100% | 114.6KG/140KG | 1.00 |
| GF23222-5015 | W1023*D500*H1800 | 12 | 150KG | 100% | 124.3KG/128KG | 1.00 |
| GF23222-7035 | W1023*D500*H1800 | 12 | 150KG | 100% | 124.3KG/128KG | 1.00 |

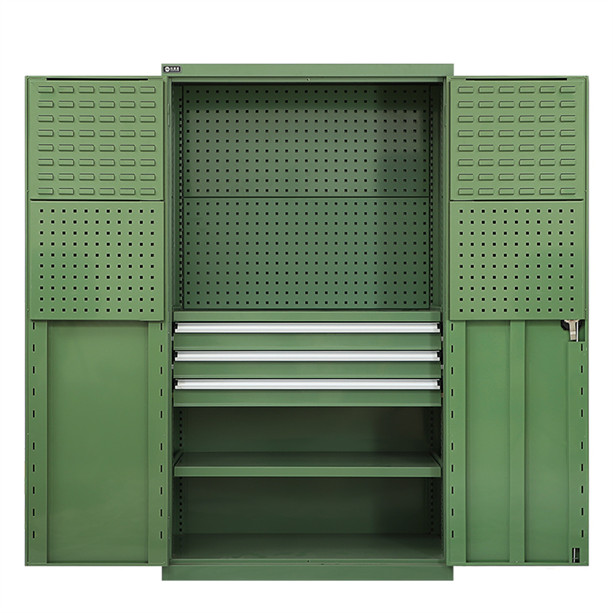

| GF23222-6011 | W1023*D500*H1800 | 12 | 150KG | 100% | 124.3KG/128KG | 1.00 |
PRODUCT FEATURES
Patented modular design
The hanging panel, louvered panel, and square-hole pegboard are freely removable and interchangeable. The back pegboard, adjustable shelf, and drawers can be configured as needed.
Drawer load capacity
The slide rail is made of 3mm high-quality cold-rolled steel plate. Standard single drawer has a load capacity of 100kg and 85% extension for daily access. For special applications, full-extension(100%) drawers are available with a 150kg load capacity.
Adjustable shelf
The shelf is supported by integrated front and rear laminate brackets. It can be adjusted up and down, with a maximum load capacity of 150 kg per shelf.
Refined copper core round lock
Brass lock cylinder, with the upper and lower lock rod connected locking mechanism, to ensure the smooth operation of the lock, high security.
Adjustable feet
Used to compensate for uneven floors and ensure stable placement of the storage cabinet.Adjustable range: 40–80 mm.
REGARDING PRODUCT FAQS
This storage cabinet is not designed for use with casters. For safety reasons, it is not recommended that casters be installed on this cabinet as they may cause it to tip over.
To clean this industrial storage cabinet, please wipe it with a soft cloth. Do not use hard objects to avoid scratching the surface coating. Our lockers are double-coated, and minor surface scratches will not cause rust and do not require special treatment. If the scratches are deep, it is recommended to use appropriate paint to seal and protect the cabinet.
