Range of sizes 8 standard colors
※ All custom RAL available
Bespoke service for over-sized cabinets
Can be fully personalised
Safe, neat and orderly storage
Long-Lasting Warranty
PRODUCT SPECIFICATIONS

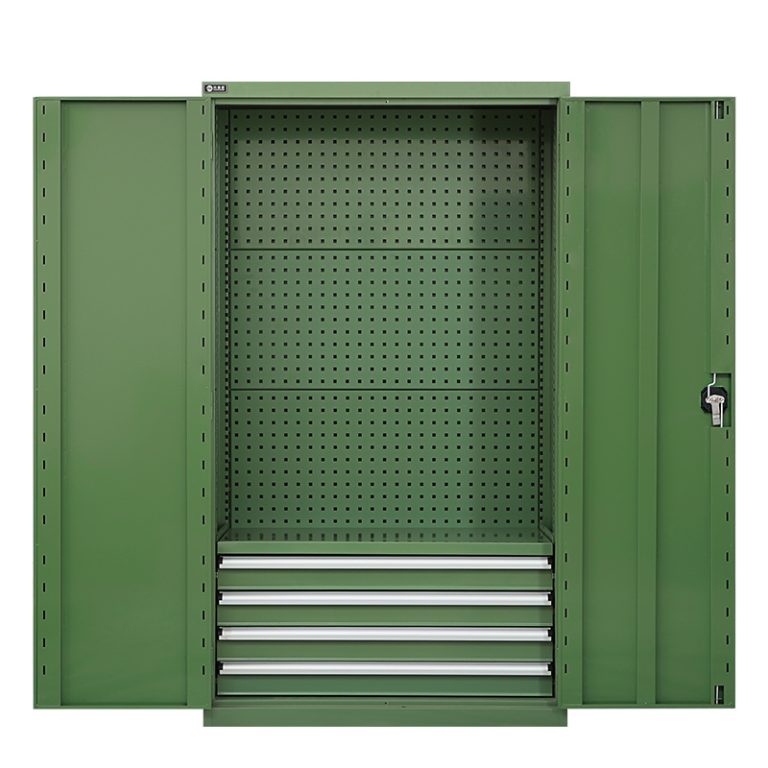

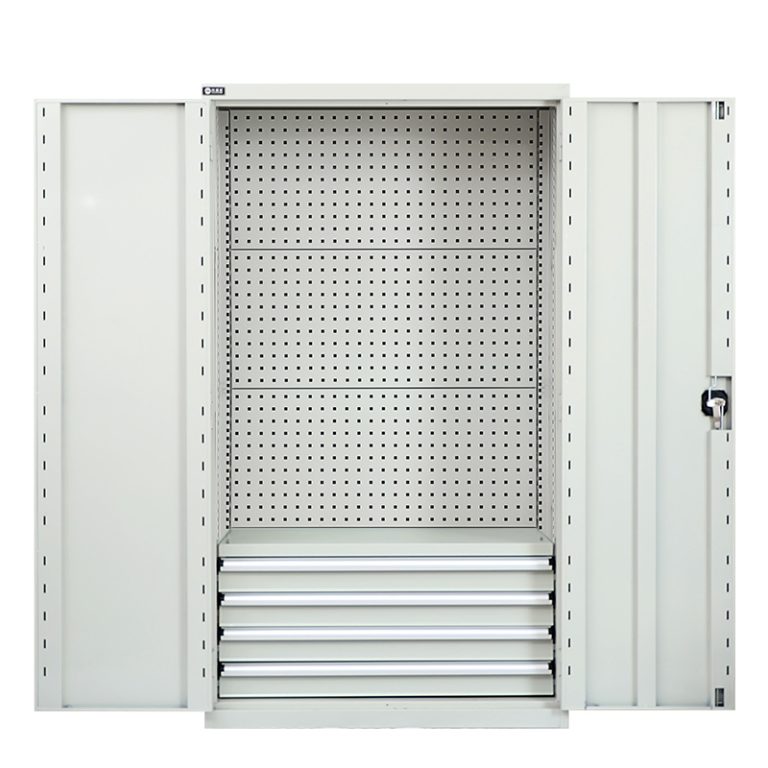

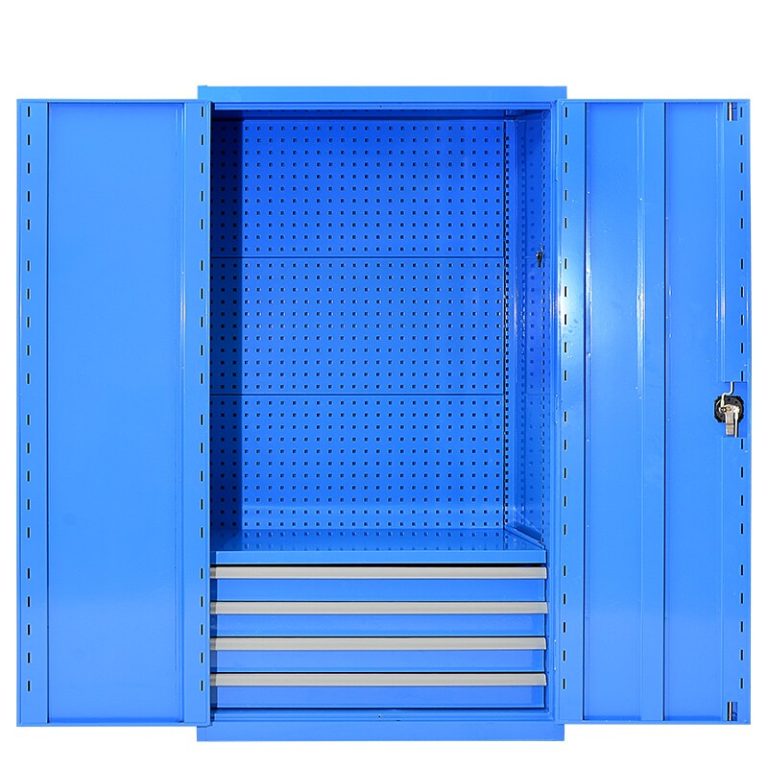

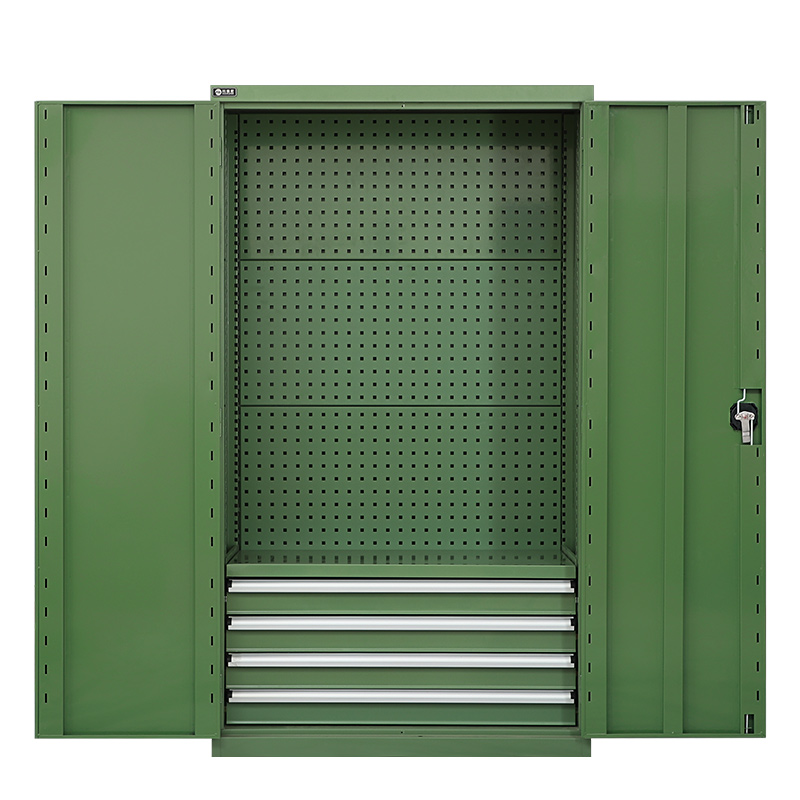

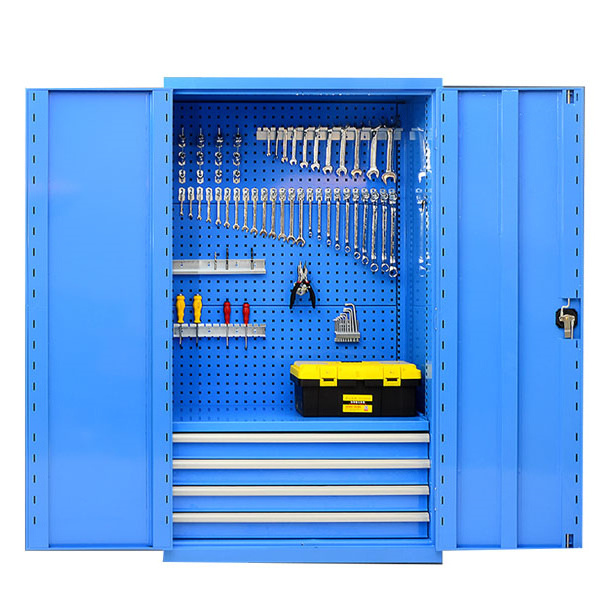

14003 Series Industrial Cabinet
| Model No. | Color | Size(mm) | Style | Shelf Load Capacity | Single Drawer Load | Drawer Extension | N.W./G.W. | CBM(m³） |
| GF14003-5015 | LIGHT BLUE | W1023*D500*H1800 | 4 Drawer & 1 Shelves & 3 Back panel | 150KG | 150KG | 100% | 120.7KG/125KG | 1.00 |
| GF14003-7035 | LIGHT GRAY | W1023*D500*H1800 | 4 Drawer & 1 Shelves & 3 Back panel | 150KG | 150KG | 100% | 120.7KG/125KG | 1.00 |
| GF14003-6011 | MACHINE GREEN | W1023*D500*H1800 | 4 Drawer & 1 Shelves & 3 Back panel | 150KG | 150KG | 100% | 120.7KG/125KG | 1.00 |
| GF18002-5015 | LIGHT BLUE | W1023*D500*H1800 | 8 Drawer & 1 Shelves & 2 Back panel | 150KG | 150KG | 100% | 145.7KG/150KG | 1.00 |
| GF18002-7035 | LIGHT GRAY | W1023*D500*H1800 | 8 Drawer & 1 Shelves & 2 Back panel | 150KG | 150KG | 100% | 145.7KG/150KG | 1.00 |
| GF18002-6011 | MACHINE GREEN | W1023*D500*H1800 | 8 Drawer & 1 Shelves & 2 Back panel | 150KG | 150KG | 100% | 145.7KG/150KG | 1.00 |
PRODUCT INFORMATION
1. Adjustable Storage: The industrial storage cabinet has a height-adjustable shelf for flexible storage of items of different sizes.
2 . Enhanced Tool Management: A separate multi-drawer tool cabinet option is available, featuring:
·Drawers with sturdy construction due to 3mm thick high-strength steel and precision-stamped bearings.
·Strong load-bearing capacity for tools.
·Back panel quantity that increases with drawer cabinet specifications, providing more space for hanging and storing tools.
3. Customizable Aesthetics: The overall color of the industrial storage cabinet can be personalized to match the work environment or individual preferences.
PRODUCT FEATURES
Patented modular design
The hanging panel, louvered panel, and square-hole pegboard are freely removable and interchangeable. The back pegboard, adjustable shelf, and drawers can be configured as needed.
Drawer load capacity
The slide rail is made of 3mm high-quality cold-rolled steel plate. Standard single drawer has a load capacity of 100kg and 85% extension for daily access. For special applications, full-extension(100%) drawers are available with a 150kg load capacity.
Adjustable shelf
The shelf is supported by integrated front and rear laminate brackets. It can be adjusted up and down, with a maximum load capacity of 150 kg per shelf.
Refined copper core round lock
Brass lock cylinder, with the upper and lower lock rod connected locking mechanism, to ensure the smooth operation of the lock, high security.
Adjustable feet
Used to compensate for uneven floors and ensure stable placement of the storage cabinet.Adjustable range: 40–80 mm.
REGARDING PRODUCT FAQS
1. We keep good quality and competitive prices to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
T/T 30% deposit in advance, with the remaining 70% balance payable before shipment.
Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
