Customizable worktops
Weather-resistant coating
With robust, ergonomic push bar
PRODUCT INFORMATION
– Thickened steel sheet, more than 0.8mm.
-Ball bearing slides, can load more than 45kg per drawer.
-Mechanical lock, one lock controls all drawers or 2PCS keys available for the key.
-Plastic abs worktop and abs protection cover.
-Square hole panel, can hang hooks.
-φ125mm mute wheel, 2PCS fixed and 2PCS swivel (with brakes).
PRODUCT SPECIFICATIONS
KX-1027X Series Tool Cart
| Model No. | Size(mm) | Drawer Qty | Slide | Single Drawer Load | Drawer Extension | N.W./G.W. | CBM(m³） |

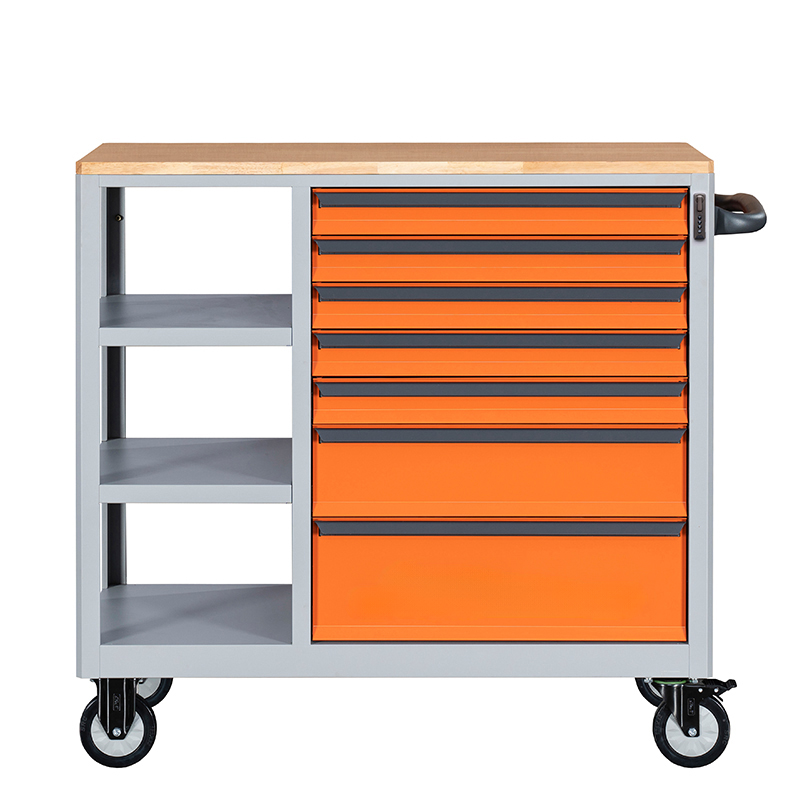

| KX-1027X | W1023*D480*H988 | 7 | Three Section Slide | 45KG | 100% | 73.72KG/78.22KG | 0.54 |

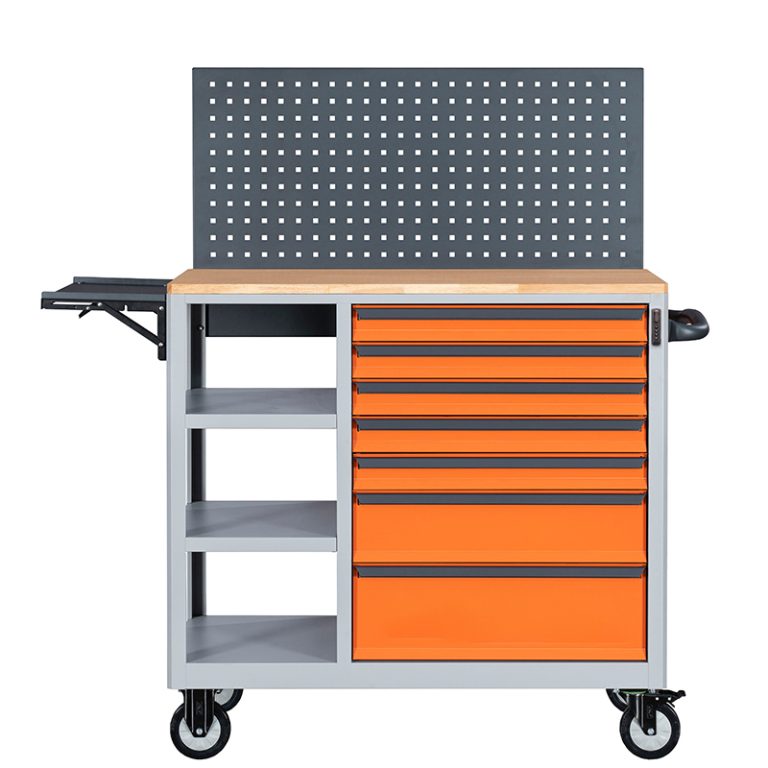

| KX-1027XH | W1023*D480*H（988+450） | 7 | Three Section Slide | 45KG | 100% | 81.72KG/86.22KG | 0.54 |
PRODUCT FEATURES
ABS top table
Wear-resistant and durable, high load-bearing capacity, divided storage,neat and beautiful, strong and durable.
Three section ball bearing rail
Ball slide bearing drawer load capacity 45kg.100% extension,50,000 time opening and closing.
Self-locking system
Equipped with self-locking buckle design, effectively preventing drawers from sliding off accidentally.
Drawer divider (optional)
Pre-formed divider holes are reserved in the drawer, and optional front-to-back adjustable dividers can be configured. Supports 3×3, 3×4, 3×5, and other customized partition layouts. The drawer space can be freely organized to maximize space utilization.
Heavy wheel
2 braked universal wheels and 2 directional wheels make pushing more effortless and more durable.
Each caster supports up to 160 KG, with a total load capacity of 500 KG.
REGARDING PRODUCT FAQS
A: This tool roller cabinet has a net weight of 73.72KG.
A: Yes, it is possible to use it without wheels; however, please be aware that there is no padding.
A: Yes, we have two pre-sized holes in this product, so you can change the wheel size according to your needs.
