Durable and Sturdy
Easy Installation, Excellent Service
Versatility
PRODUCT INFORMATION
– Thickened steel sheet, more than 0.8mm.
-Ball bearing slides, can load more than 45kg per drawer.
-Mechanical lock, one lock controls all drawers or 2PCS keys available for the key.
-Plastic abs worktop and abs protection cover.
-Square hole panel, can hang hooks.
-φ125mm mute wheel, 2PCS fixed and 2PCS swivel (with brakes).
PRODUCT SPECIFICATIONS

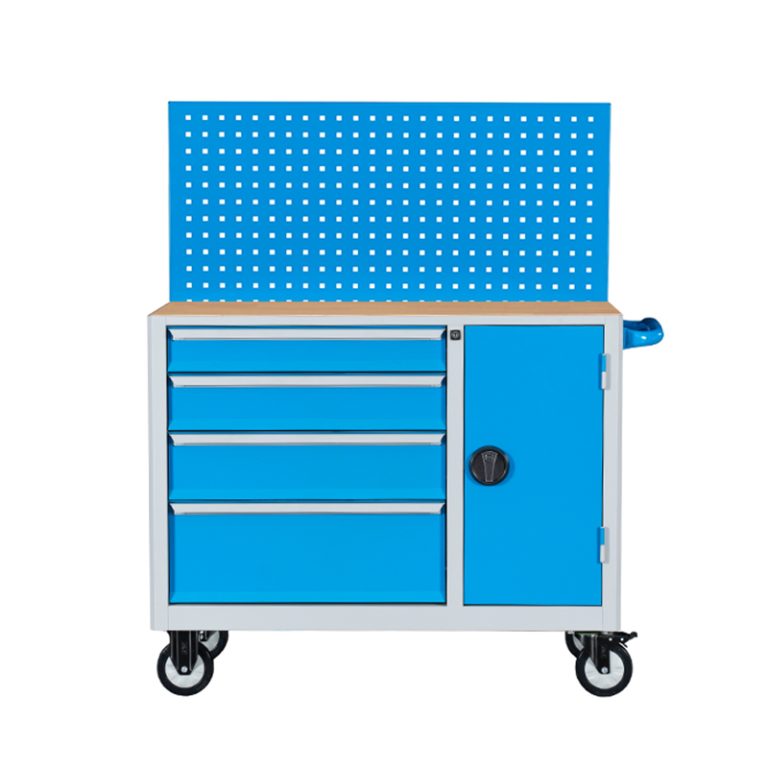

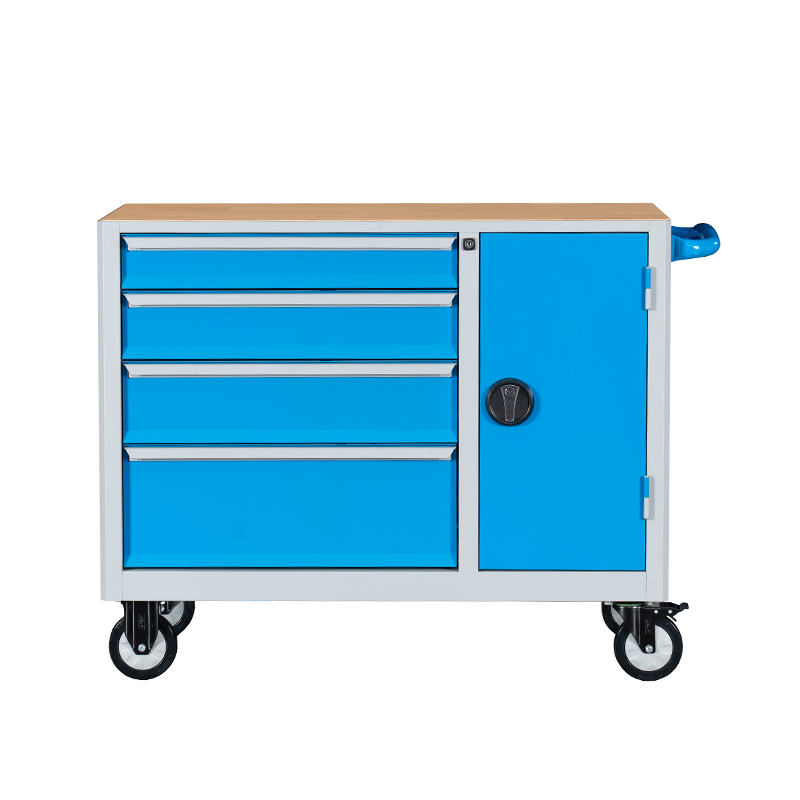

KX-1024X Series Tool Cart
| Model No. | Size(mm) | Drawer Qty | Slide | Single Drawer Load | Drawer Extension | N.W./G.W. | CBM(m³） |
| KX-1024X | W1023*D480*H816 | 4 | Three Section Slide | 45KG | 100% | 62.04KG/66.54KG | 0.44 |
| KX-1024XH | W1023*D480*H（816+450） | 4 | Three Section Slide | 45KG | 100% | 68.04KG/72.54KG | 0.48 |
PRODUCT FEATURES
Ergonomic handle
Portable design makes carrying tools no longer a chore and can be easily moved.
Three section ball-bearing slides
100% extension.all ball-bearing drawer slides allow for smooth and effortless opening and closing of the drawers.
Drawer divider (optional)
Pre-formed divider holes are reserved in the drawer, and optional front-to-back adjustable dividers can be configured. Supports 3×3, 3×4, 3×5, and other customized partition layouts. The drawer space can be freely organized to maximize space utilization.
Centralized lock
Equipped with a central locking system, all drawers can be locked or unlocked with a single lock. Each lock comes with two keys.
Self-locking system
Equipped with self-locking buckle design, effectively preventing drawers from sliding off accidentally.
Heavy wheel
2 braked universal wheels and 2 directional wheels make pushing more effortless and more durable.
Each caster supports up to 160 KG, with a total load capacity of 500 KG.
REGARDING PRODUCT FAQS
A: The size of your shipment and the shipping method will determine the cost. We hope that you will provide us with your preferred shipping method (air or ocean) and your assigned port or airport when we ask for the shipping cost. We would appreciate it if you could take a few minutes to help us estimate the cost based on the information you provide.
A: Sample order takes 3 days for our standard products, and batch orders take 15-20 days.
A: Yes, we specialize in producing customized tool carts/cabinets. Just provide us with your design, specifications, or requirements, and our team will work with you to develop the ideal solution.
