Exceptional Strength and Stability
Premium and Sustainable Materials
Tailored to Your Comfort
Pre-drilled holes for hanging and fixed cabinet mounting, left and right can be added
Adjustable working height
PRODUCT INFORMATION
-Humanized design, comfortable and beautiful, in line with ergonomic principles, improve work efficiency.
-Modular design, flexible and changeable, a variety of accessories can be combined at will.
-Standardized design, can meet customers’ customized products according to their needs.
-Imported high-quality countertops, with overall anti-static, fire-proof and wear-resistant characteristics.
-The metal surface is processed by pickling, phosphating, high-voltage electrostatic powder spraying and other processes, which is smooth and beautiful.
-The overall anti-static design fundamentally eliminates the threat of static electricity to the product.
PRODUCT SPECIFICATIONS
GXW Series Workbenches
| Model No. | Size(mm) | Total average load | N.W./G.W. | CBM(m³） |

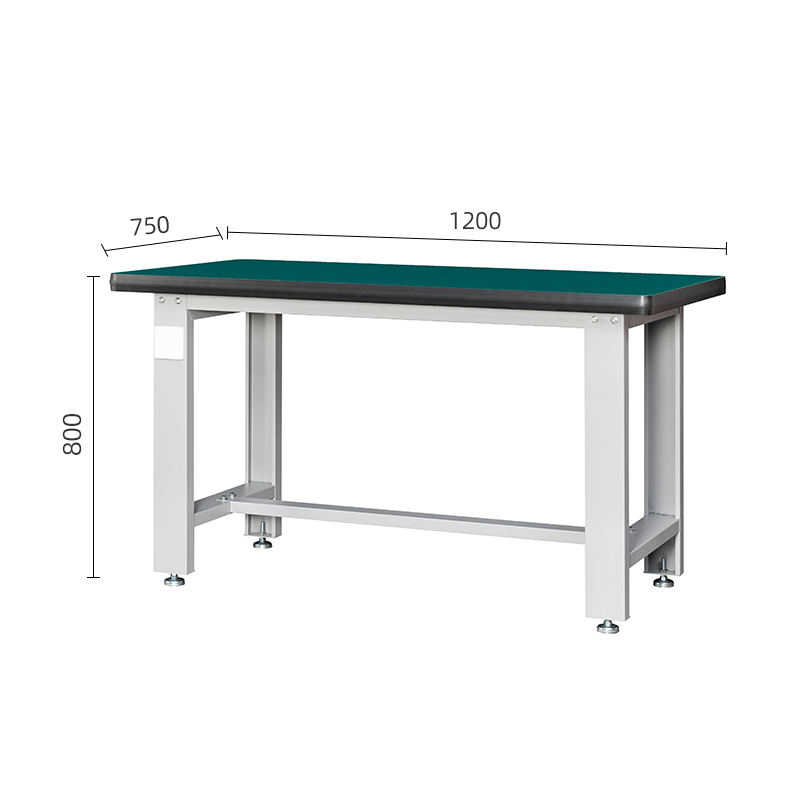

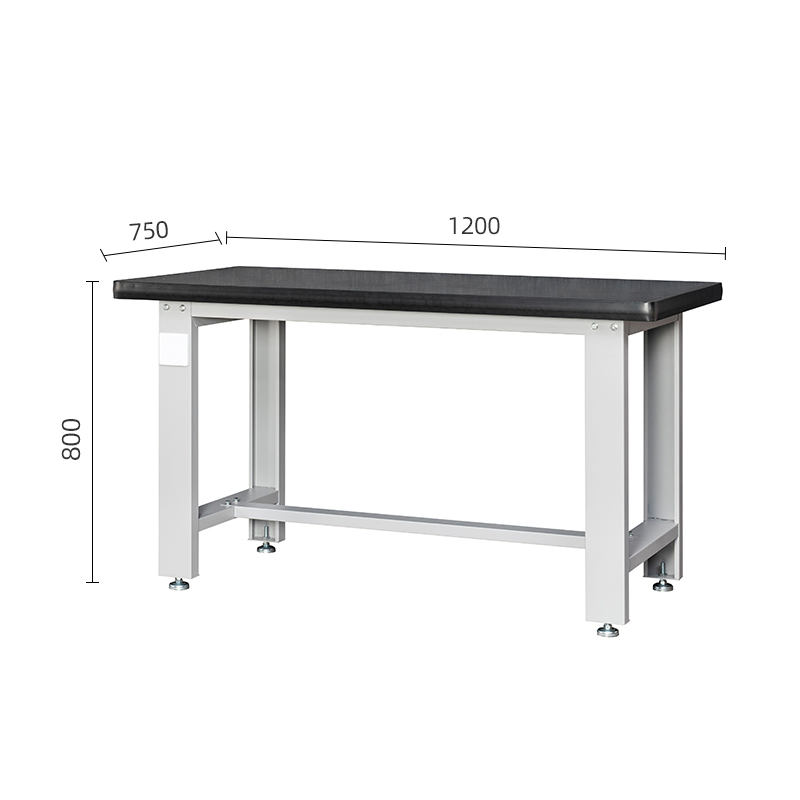

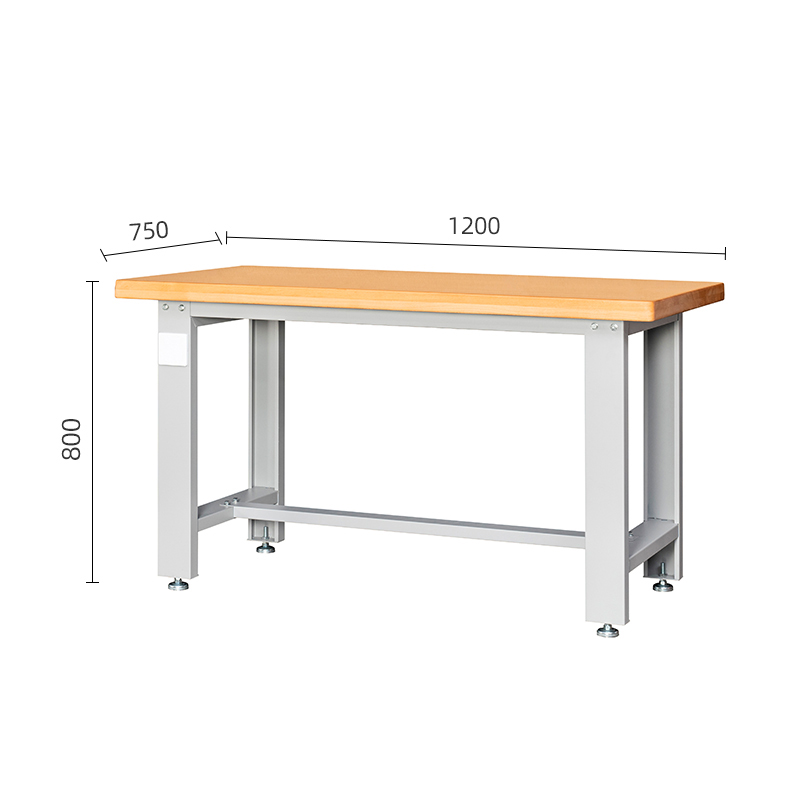

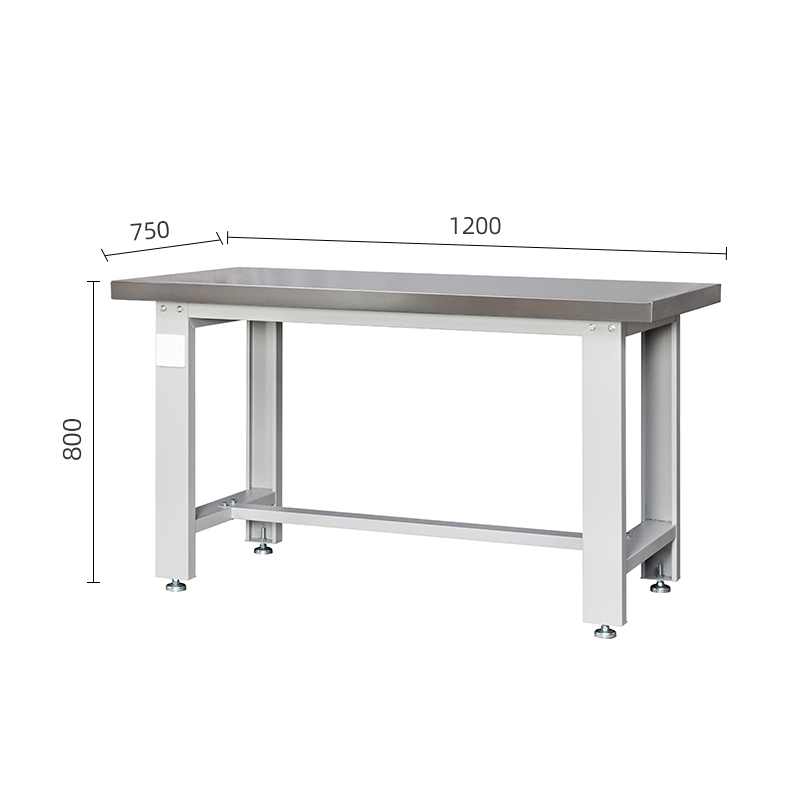

| GXW12 | W1200*D750*H800 | 1000KG | 45KG/50KG | 0.72 |
| GXW15 | W1500*D750*H800 | 1000KG | 69KG/63KG | 0.9 |
| GXW18 | W1800*D750*H800 | 1000KG | 73KG/79KG | 1.08 |
| GXW21 | W2100*D750*H800 | 1000KG | 83KG/90KG | 1.26 |
| GXW12B | W1200*D750*H800 | 1000KG | 50KG/55KG | 0.72 |
| GXW15B | W1500*D750*H800 | 1000KG | 69KG/75KG | 0.9 |
| GXW18B | W1800*D750*H800 | 1000KG | 80KG/87KG | 1.08 |
| GXW21B | W2100*D750*H800 | 1000KG | 88KG/96KG | 1.26 |
| GXW12G | W1200*D750*H800 | 1000KG | 80KG/85KG | 0.72 |
| GXW15G | W1500*D750*H800 | 1000KG | 105KG/111KG | 0.9 |
| GXW18G | W1800*D750*H800 | 1000KG | 123KG/130KG | 1.08 |
| GXW21G | W2100*D750*H800 | 1000KG | 142KG/150KG | 1.26 |
| GXW12X | W1200*D750*H800 | 1000KG | 54KG/59KG | 0.72 |
| GXW15X | W1500*D750*H800 | 1000KG | 73KG/79KG | 0.9 |
| GXW18X | W1800*D750*H800 | 1000KG | 84KG/91KG | 1.08 |
| GXW21X | W2100*D750*H800 | 1000KG | 95KG/103KG | 1.26 |
PRODUCT FEATURES

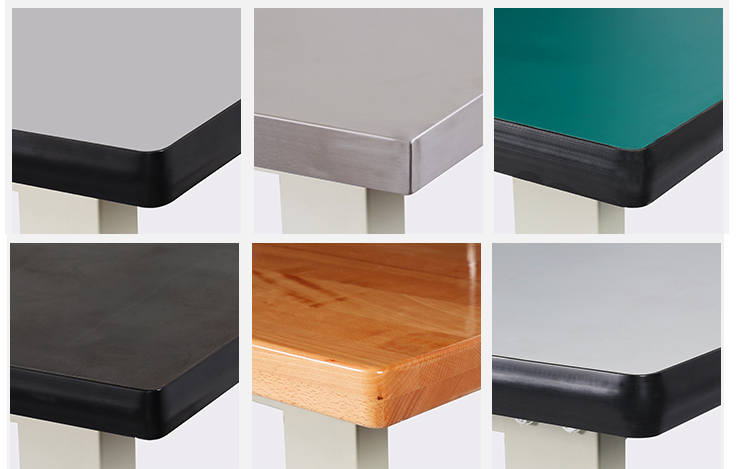

Customizable countertop
The composite worktop is wear-resistant.Oil-resistant,and impact-resistant.Additionally, options for steel plates,stainless steel, rubber wood, and otherworktops are available.
Hanging Panel
The lamp board is adjustable in heightpegboard/louvered panel/document hanging panel are optional. Customization is available.
Adjustable tilted shelf (optional)
The shelf height is adjustable, with a 15°tilt angle adjustable and a 20mm foldededge.
Heavy-duty steel frame
Pre-drilled holes have been reserved for hanging cabinets and fixedcabinetshanging and fixed cabinets can be installed on the left and right sides.
Castor (optional)
Casters can be added to the bottom ofcabinet, using high-quality 4-inchpolyurethane casters with a load capacityof 1000kg.
Steel anti-slip adjustable feet
Made of steel, high load capacity, non-slip and safer.
REGARDING PRODUCT FAQS
A: Yes, just provide the dimensions you require and we will assist you in planning the structure accordingly!
A: You could place the order directly or we can send you the proforma invoice with our bank details. After we received the down payment, we will start the production.
A: Sure, welcome you at any time!
