Strong load-bearing capacity, stable structure
Bearing rails
Customizable Workbench Top
Ease of assembly
Eco-friendly powder coating, odorless and fade-resistant.
PRODUCT INFORMATION
-Humanized design, comfortable and beautiful, in line with ergonomic principles, improve work efficiency.
-Modular design, flexible and changeable, a variety of accessories can be combined at will.
-Standardized design, can meet customers’ customized products according to their needs.
-Imported high-quality countertops, with overall anti-static, fire-proof and wear-resistant characteristics.
-The metal surface is processed by pickling, phosphating, high-voltage electrostatic powder spraying and other processes, which is smooth and beautiful.
-The overall anti-static design fundamentally eliminates the threat of static electricity to the product.
PRODUCT SPECIFICATIONS

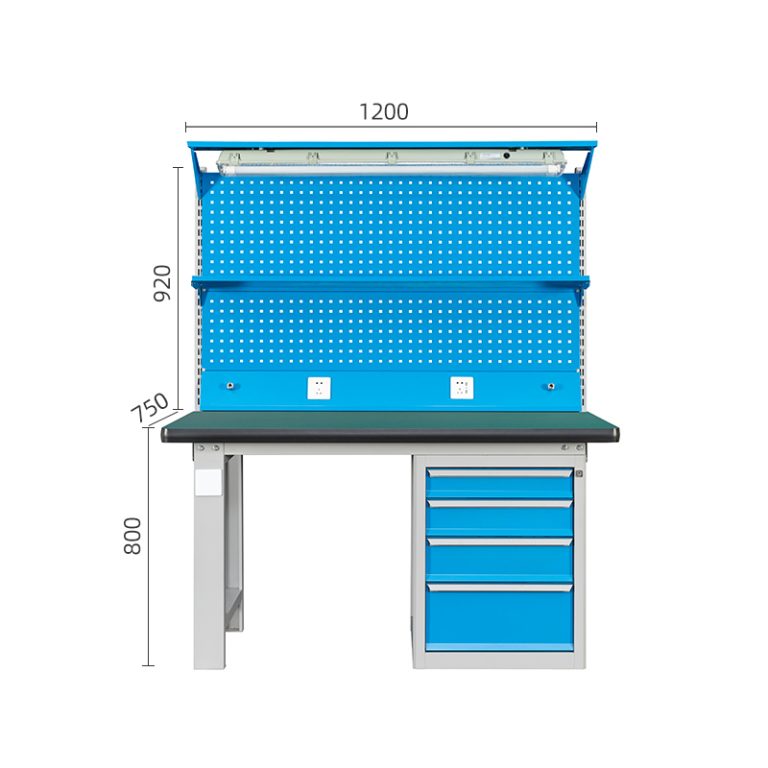

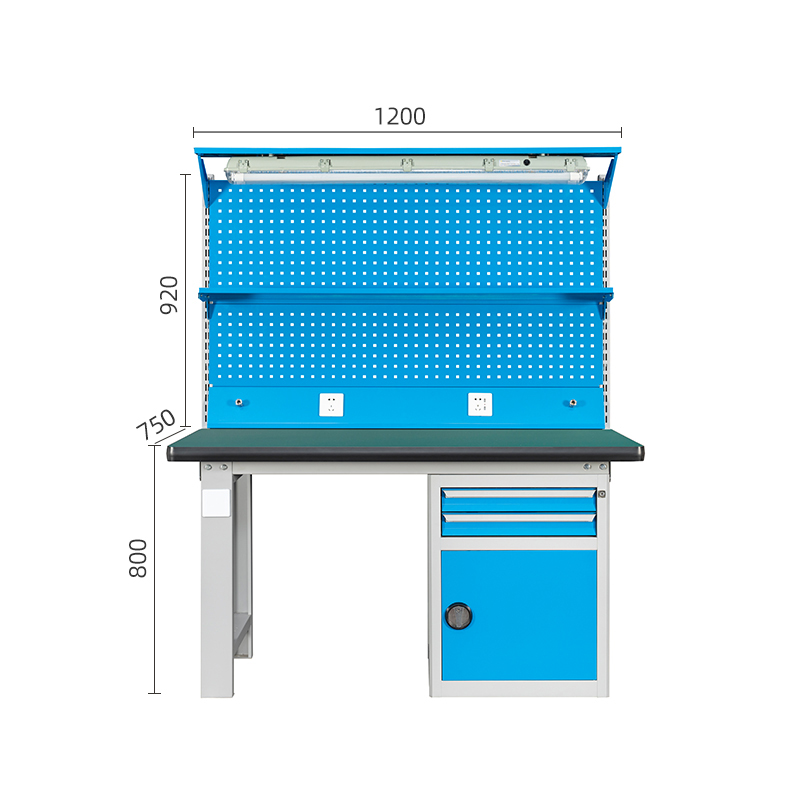

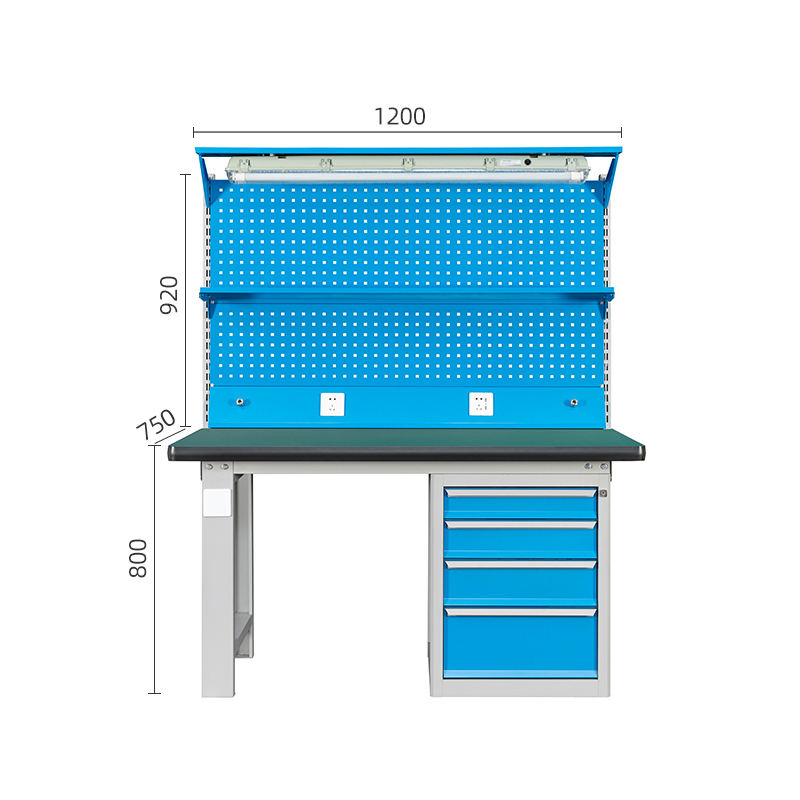

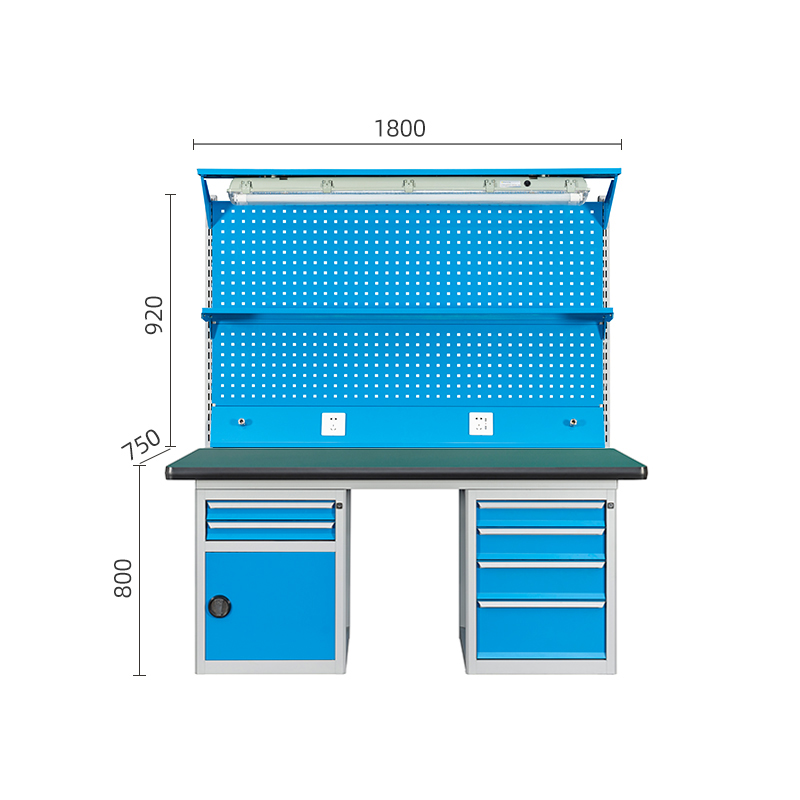

GXWⅠ-91FFDP Series Workbenches
| Model No. | Size(mm) | Drawer Qty | Slide | Single Drawer Load | Drawer Extension | N.W./G.W. | CBM(m³） |
| GXW18ⅡⅣ | W1200*D750*H（800+920） | 2 | Double Slide | 150KG | 100% | 91KG/96KG | 1.55 |
| GXW21ⅡⅣ | W1500*D750*H（800+920） | 2 | Double Slide | 150KG | 100% | 115KG/120KG | 1.94 |
| GXW21ⅡⅣ | W1800*D750*H（800+920） | 2 | Double Slide | 150KG | 100% | 130KG/136KG | 2.33 |
| GXW21ⅡⅣ | W2100*D750*H（800+920） | 2 | Double Slide | 150KG | 100% | 147KG/153KG | 2.71 |
| GXW21ⅡⅣ | W1200*D750*H（800+920） | 4 | Double Slide | 150KG | 100% | 101KG/106KG | 1.55 |
| GXW21ⅡⅣ | W1500*D750*H（800+920） | 4 | Double Slide | 150KG | 100% | 125KG/130KG | 1.94 |
| GXW21ⅡⅣ | W1800*D750*H（800+920） | 4 | Double Slide | 150KG | 100% | 140KG/146KG | 2.33 |
| GXW21ⅡⅣ | W2100*D750*H（800+920） | 4 | Double Slide | 150KG | 100% | 157KG/163KG | 2.71 |
| GXW21ⅡⅣ | W1800*D750*H（800+920） | 6 | Double Slide | 150KG | 100% | 162KG/170KG | 2.33 |
| GXW21ⅡⅣ | W2100*D750*H（800+920） | 6 | Double Slide | 150KG | 100% | 179KG/187KG | 2.71 |
PRODUCT FEATURES
Customizable countertop
The composite worktop is wear-resistant.Oil-resistant,and impact-resistant.Additionally, options for steel plates,stainless steel, rubber wood, and otherworktops are available.
Hanging Panel
The lamp board is adjustable in heightpegboard/louvered panel/document hanging panel are optional. Customization is available.
Adjustable tilted shelf (optional)
The shelf height is adjustable, with a 15°tilt angle adjustable and a 20mm foldededge.
Heavy-duty steel frame
Pre-drilled holes have been reserved for hanging cabinets and fixedcabinetshanging and fixed cabinets can be installed on the left and right sides.
Castor (optional)
Casters can be added to the bottom ofcabinet, using high-quality 4-inchpolyurethane casters with a load capacityof 1000kg.
Steel anti-slip adjustable feet
Made of steel, high load capacity, non-slip and safer.
REGARDING PRODUCT FAQS
A:For most standard products, we have ready stock available.
For customized products, the lead time is 15–20 days.
For large orders, please contact us directly to confirm the lead time.
A: Our products are packed in 5-layer corrugated cartons. For larger quantities, we use pallets for unified handling. For heavy-duty or oversized items, the cartons are additionally reinforced with wooden frames after packing to ensure safe transportation.
A: 1. We maintain good quality and competitive prices to ensure customer benefits;
2. We respect each customer as our friend, we do business in good faith, make friends with them,No matter where they come from.
