Range of sizes 8 standard colors
※ All custom RAL available
Drawer load capacities up to 150kg
Bespoke service for over-sized cabinets
Fully customizable to meet your specific needs
All tool cabinets are also available as mobile cabinets
FULL-EXTENSION DRAWER
Free configuration of slide rails
The drawer slides of the tool cabinet offer multiple extension options and load capacities depending on the tools or equipment stored. Industrial-grade tool cabinets can be flexibly configured with two different functions to meet diverse needs.
Single slide drawer：Supports up to 100 kg with 85% smooth extension, ideal for standard industrial storage.
Double slide drawer：Double-slide design supports 150 kg with 100% full extension, perfect for heavy-duty storage and access.
OPTIMIZED DRAWER INTERIOR SPACE
Optimum order and organisation
Dividers, partition boxes, and separator slots help maximize the internal space of each drawer in the tool cabinet. By using these accessories, work efficiency and speed are significantly improved, allowing each drawer to neatly store a specific set of tools, spare parts, and small components.

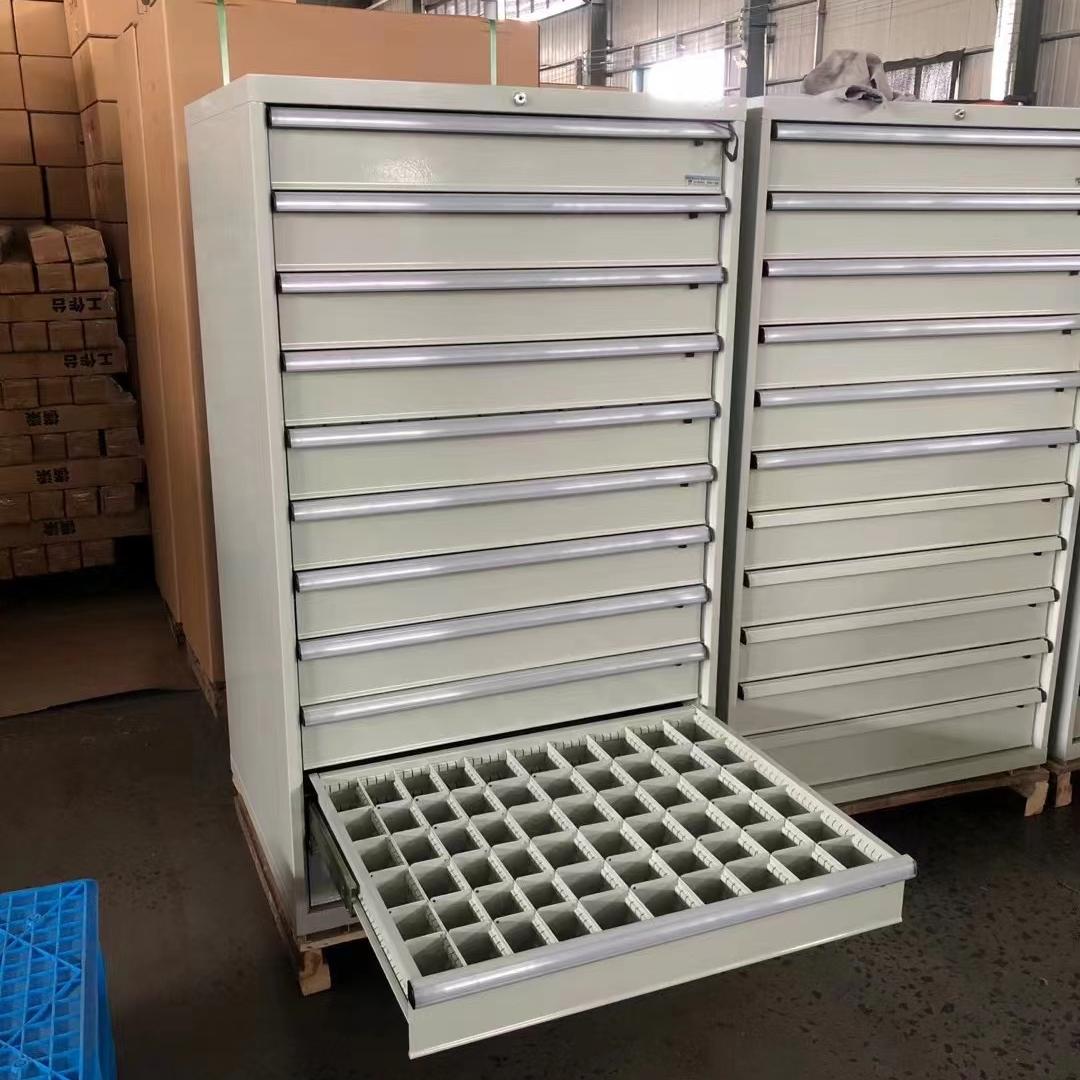

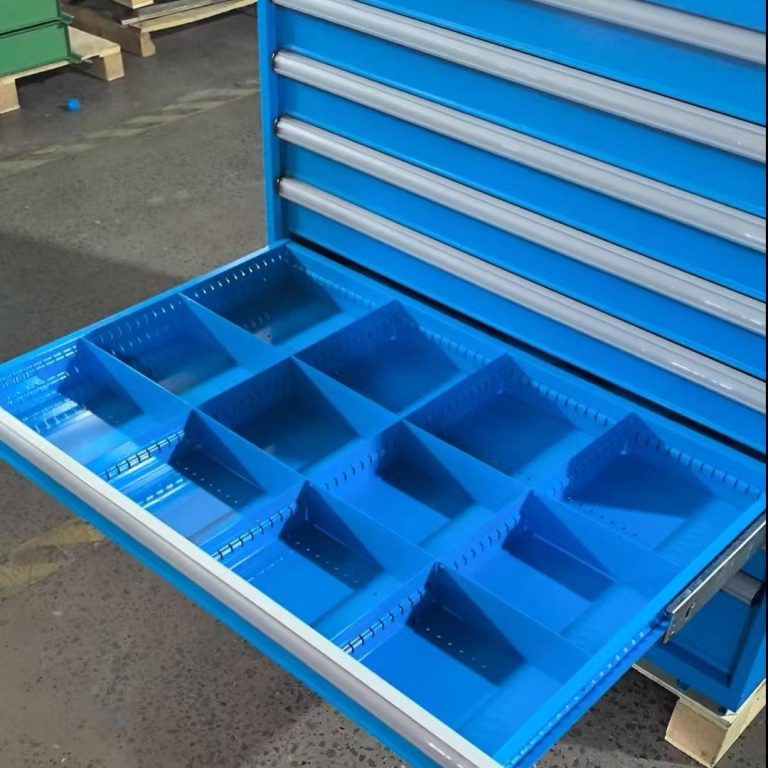

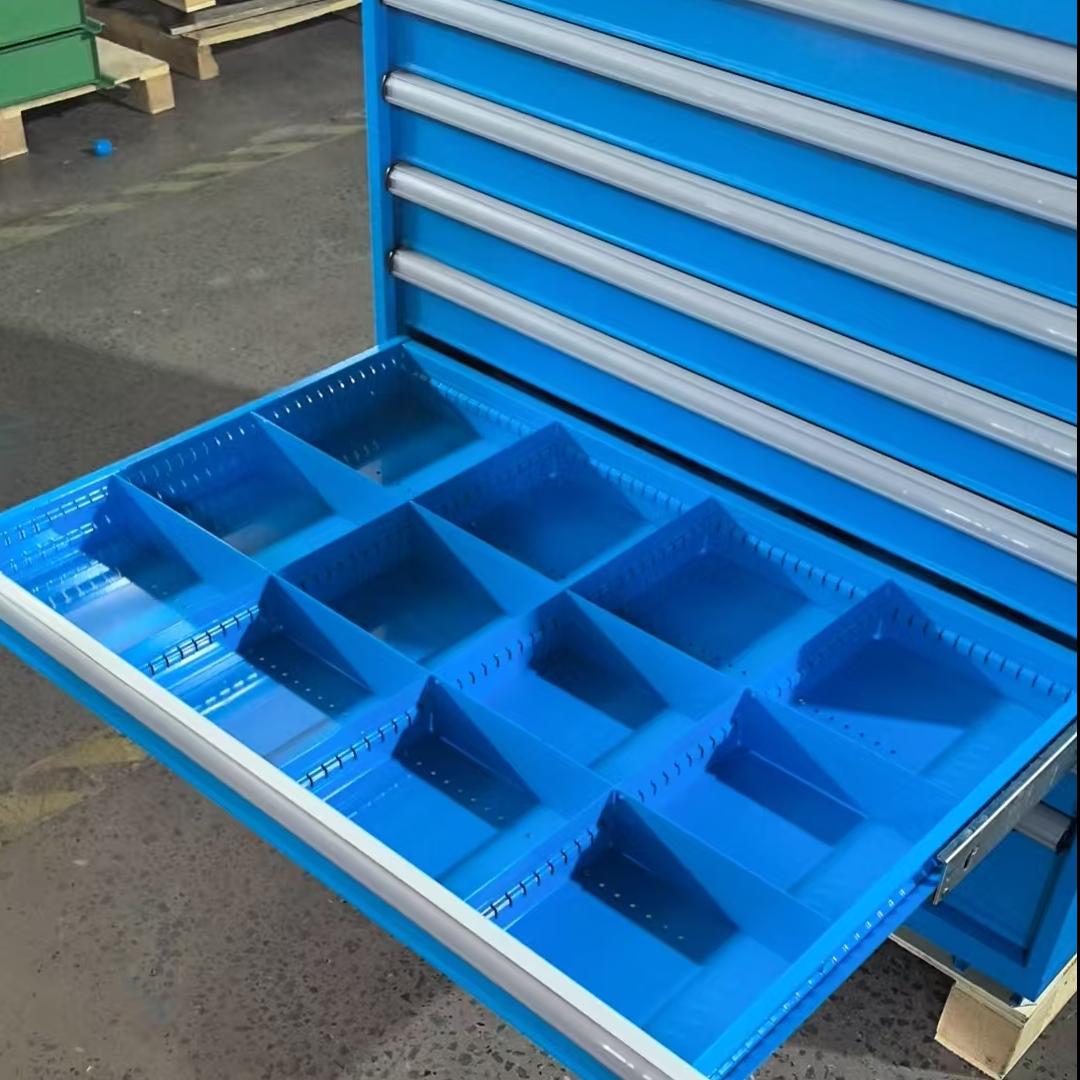

Drawer divider：Pre-formed divider holes are reserved in the drawer, and optional front-to-back adjustable dividers can be configured. Supports 3×3, 3×4, 3×5, and other customized partition layouts.
Divider box：Made of one-piece molded ABS material. Classification boxes can be selected according to usage needs and part sizes, enhancing the convenience of tool management.
SECURE STORAGE
Outstanding safety features
Depending on different scenarios and security requirements, the tool cabinet can be equipped with three types of locking systems to prevent loss and ensure safe and reliable storage and use.
Centralized lock：Equipped with a central locking system, all drawers can be locked or unlocked with a single lock. Each lock comes with two keys.
Self-locking system：Equipped with self-locking buckle design, effectively preventing drawers from sliding off accidentally.
Interlocking system(optional)：Ensures that only one drawer can be opened at a time, thus preventing tipping and enhancing stability, providing additional security.
TOP WORK SURFACE
Sturdy and durable
A workbench can be installed on top of the tool cabinet to enhance strength and durability, providing support for repairs and other tasks. Tool cabinets with drawers can also be flexibly equipped with four different types of work surfaces to meet diverse usage needs.
PRODUCT SPECIFICATIONS
GT87 Series Heavy Duty Tool Cabinet

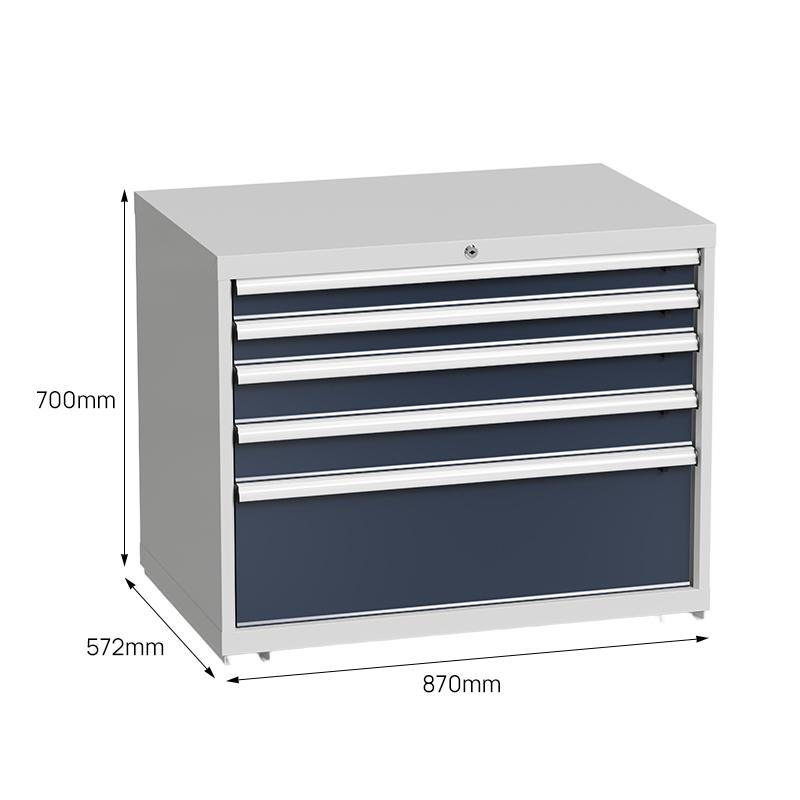

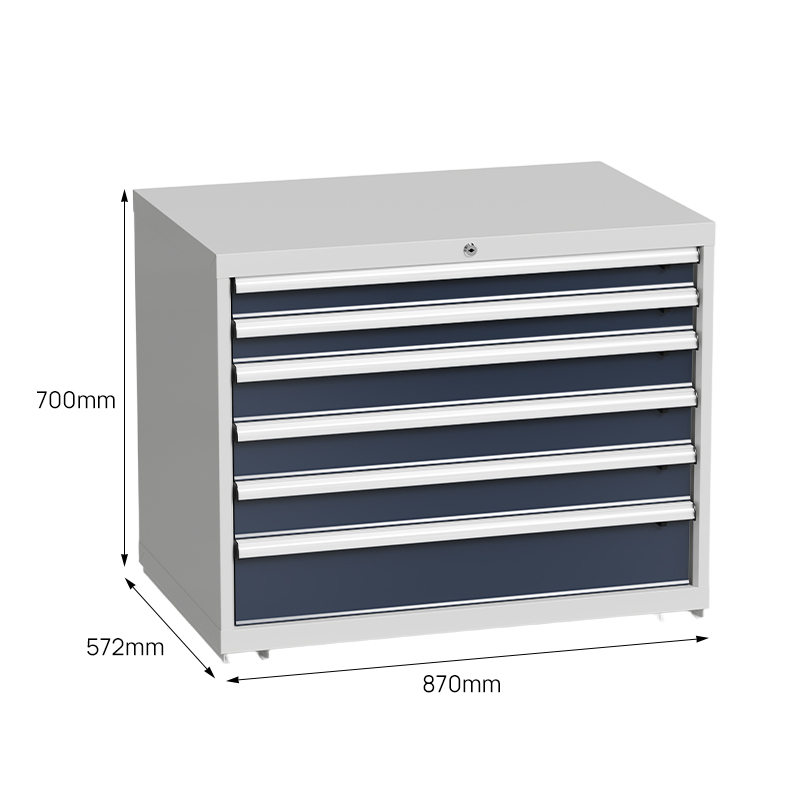

870 × 572 × 700 mm / 34.3″ × 22.5″ × 27.6”
| Model No. | Drawer Qty | Slide | Single Drawer Load | Drawer Extension | N.W./G.W. | CBM(m³） |
| GT87077003E | 3 | Single Slide | 100KG | 85% | 62KG/67KG | 0.44 |
| GT87077003V | 3 | Double Slide | 150KG | 100% | 76KG/81KG | 0.44 |

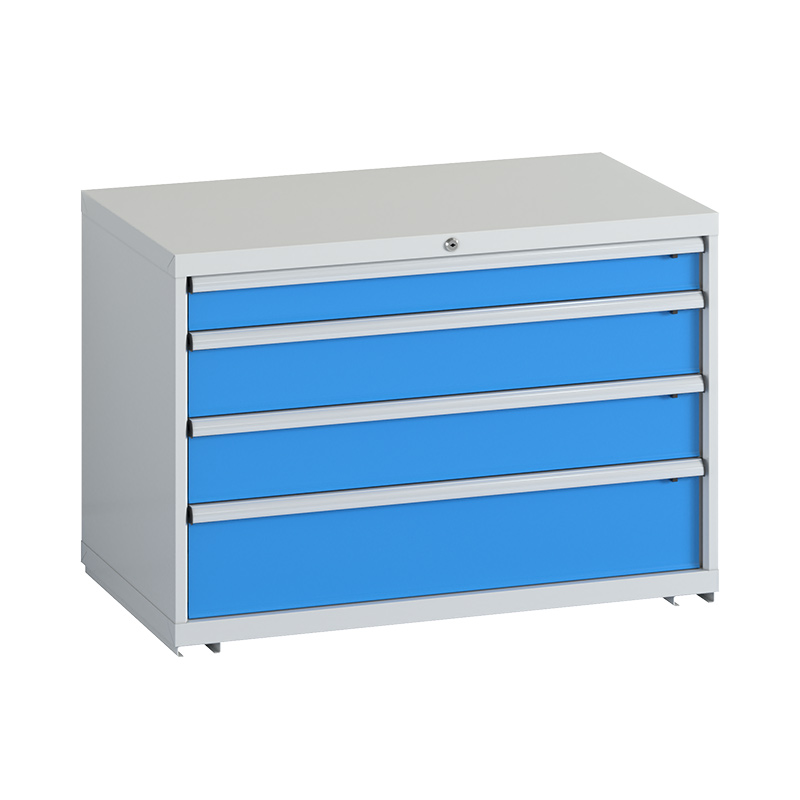

| GT87077004E | 4 | Single Slide | 100KG | 85% | 68KG/73KG | 0.44 |
| GT87077004V | 4 | Double Slide | 150KG | 100% | 88KG/95KG | 0.44 |
| GT87077005E | 5 | Single Slide | 100KG | 85% | 76KG/81KG | 0.44 |
| GT87077005V | 5 | Double Slide | 150KG | 100% | 99KG/104KG | 0.44 |

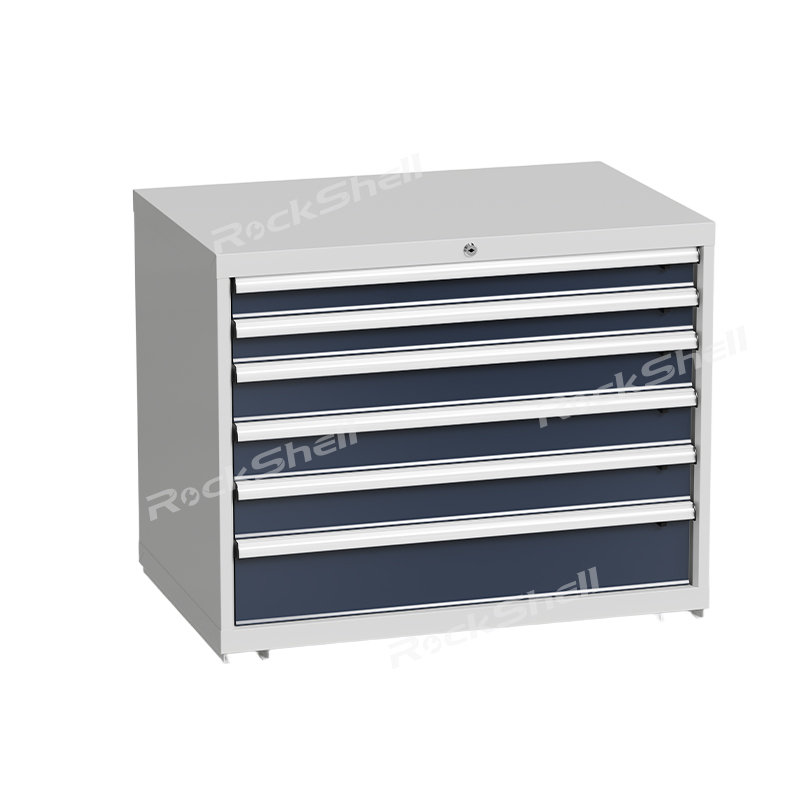

| GT87077006E | 6 | Single Slide | 100KG | 85% | 83KG/87KG | 0.44 |
| GT87077006V | 6 | Double Slide | 150KG | 100% | 110KG/115KG | 0.44 |
870 × 572 × 850 mm / 34.3″ × 22.5″ × 33.5”
| Model No. | Drawer Qty | Slide | Single Drawer Load | Drawer Extension | N.W./G.W. | CBM(m³） |
| GT87078505E | 5 | Single Slide | 100KG | 85% | 81KG/87KG | 0.50 |
| GT87078505V | 5 | Double Slide | 150KG | 100% | 106KG/114KG | 0.50 |
| GT87078506E | 6 | Single Slide | 100KG | 85% | 86KG/91KG | 0.52 |
| GT87078506V | 6 | Double Slide | 150KG | 100% | 114KG/119KG | 0.52 |

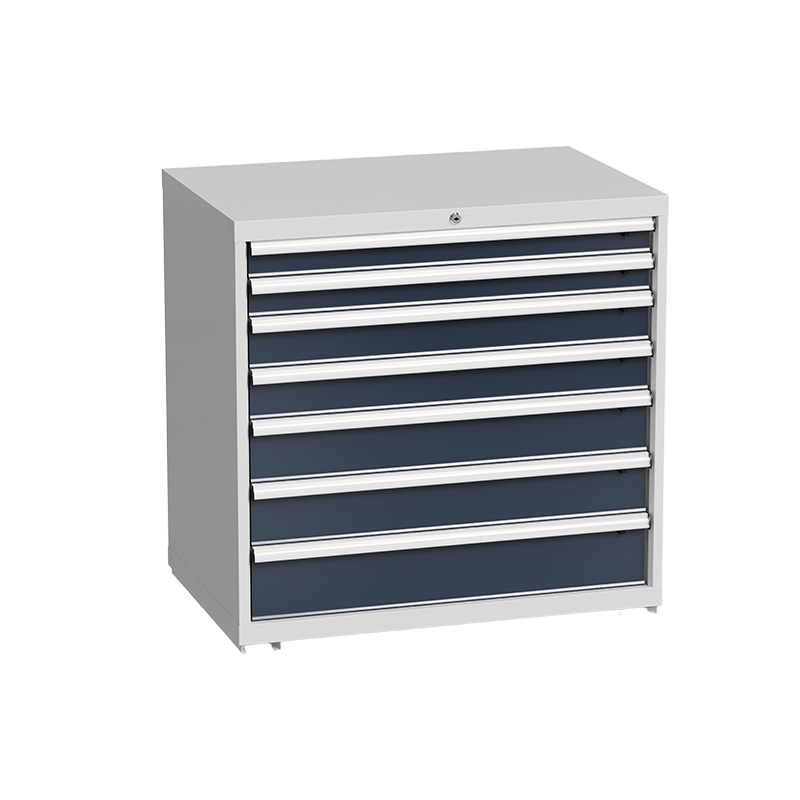

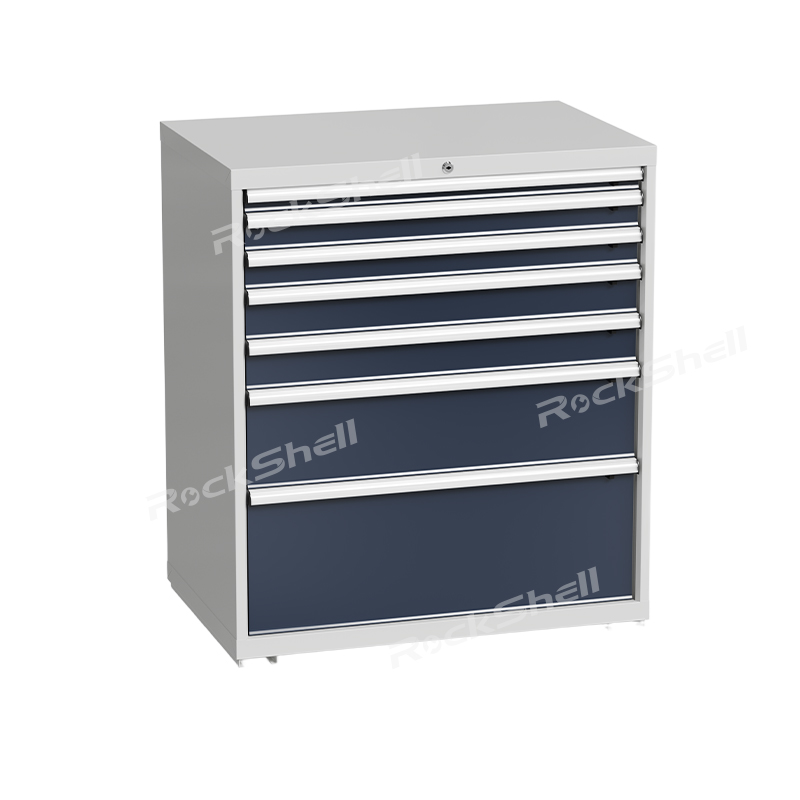

| GT870728507E | 7 | Single Slide | 100KG | 85% | 95KG/100KG | 0.60 |
| GT87028507V | 7 | Double Slide | 150KG | 100% | 122KG/127KG | 0.60 |
| GT87028508E | 8 | Single Slide | 100KG | 85% | 101KG/106KG | 0.60 |
| GT87028508V | 8 | Double Slide | 150KG | 100% | 137KG/142KG | 0.60 |
870 × 572 × 1000 mm / 34.3″ × 22.5″ × 39.4”
| Model No. | Drawer Qty | Slide | Single Drawer Load | Drawer Extension | N.W./G.W. | CBM(m³） |
| GT870710006E | 6 | Single Slide | 100KG | 85% | 92.KG/97KG | 0.60 |
| GT870710006V | 6 | Double Slide | 150KG | 100% | 119KG/124KG | 0.60 |
| GT870710007E | 7 | Single Slide | 100KG | 85% | 98KG/103KG | 0.60 |
| GT870710007V | 7 | Double Slide | 150KG | 100% | 125KG/130KG | 0.60 |
| GT870710008E | 8 | Single Slide | 100KG | 85% | 104KG/110KG | 0.60 |
| GT870710008V | 8 | Double Slide | 150KG | 100% | 127KG/132KG | 0.60 |
| GT870210009E | 9 | Single Slide | 100KG | 85% | 111KG/117KG | 0.60 |
| GT870210009V | 9 | Double Slide | 150KG | 100% | 153KG/158KG | 0.60 |
| GT8702100010E | 10 | Single Slide | 100KG | 85% | ||
| GT8702100010V | 10 | Double Slide | 150KG | 100% |
870 × 572 × 1450mm / 34.3″ × 22.5″ × 57”
| Model No. | Drawer Qty | Slide | Single Drawer Load | Drawer Extension | N.W./G.W. | CBM(m³） |
| GT870714509E | 9 | Single Slide | 100KG | 85% | 126KG/131KG | 0.84 |
| GT870714509V | 9 | Double Slide | 150KG | 100% | 167KG/172KG | 0.84 |
| GT8702145011E | 13 | Single Slide | 100KG | 85% | 153KG/158KG | 0.84 |
| GT8702145011V | 13 | Double Slide | 150KG | 100% | 212KG/217KG | 0.84 |
REGARDING PRODUCT FAQS
A： Flexible adjustment of the partition structure.
A： Our product line includes models optimized for light-, medium-, and heavy-duty applications. Depending on your specific operational needs—such as load capacity, usage frequency, and working environment， we offer tailored solutions.
A： It’s suitable for garages or workshops and can hold tools like screwdrivers, drills, etc. The layered design helps with organization.
