Range of sizes 8 standard colors
※ All custom RAL available
Drawer load capacities up to 150kg
Bespoke service for over-sized cabinets
Fully customizable to meet your specific needs
All tool cabinets are also available as mobile cabinets
PRODUCT INFORMATION
– Every tool box has a locking mechanism that allows all drawers to be locked at the same time.
–Accessories include different organizers for drawers, such as tool trays, dividers, and interiors, as well as rubber mats.
–Single slide rail can open 85%, load capacity is 100kg.
–Double slide rail with 100% extension, load capacity up to 150kg.
–All drawers are equipped with an ABS safety buckle to prevent drawers from opening on its own.
–Multi adjustable metal dividers allow easily adaptable layouts.
–Ergonomic full width aluminum pull handles, PVC handle protector, identification labels.
PRODUCT SPECIFICATIONS

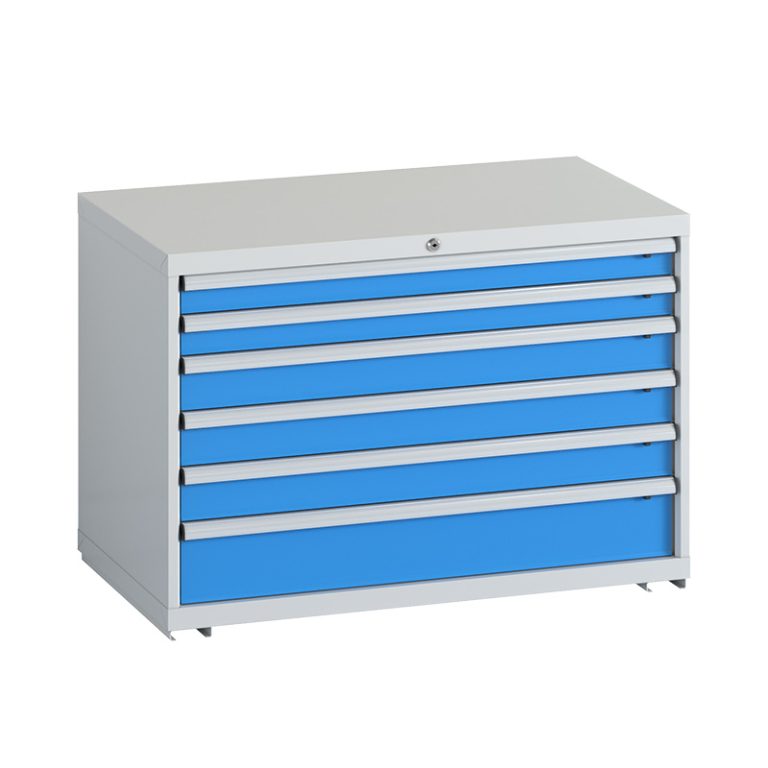

GT102 Series Heavy Duty Tool Cabinet
| Model No. | Size(mm) | Drawer Qty | Slide | Single Drawer Load | Drawer Extension | N.W./G.W. | CBM(m³） |

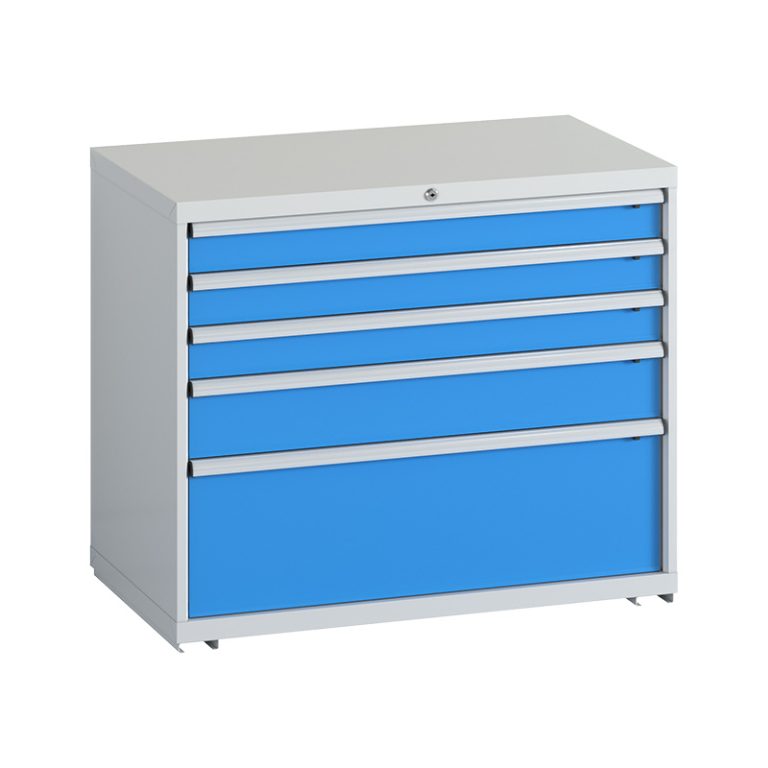

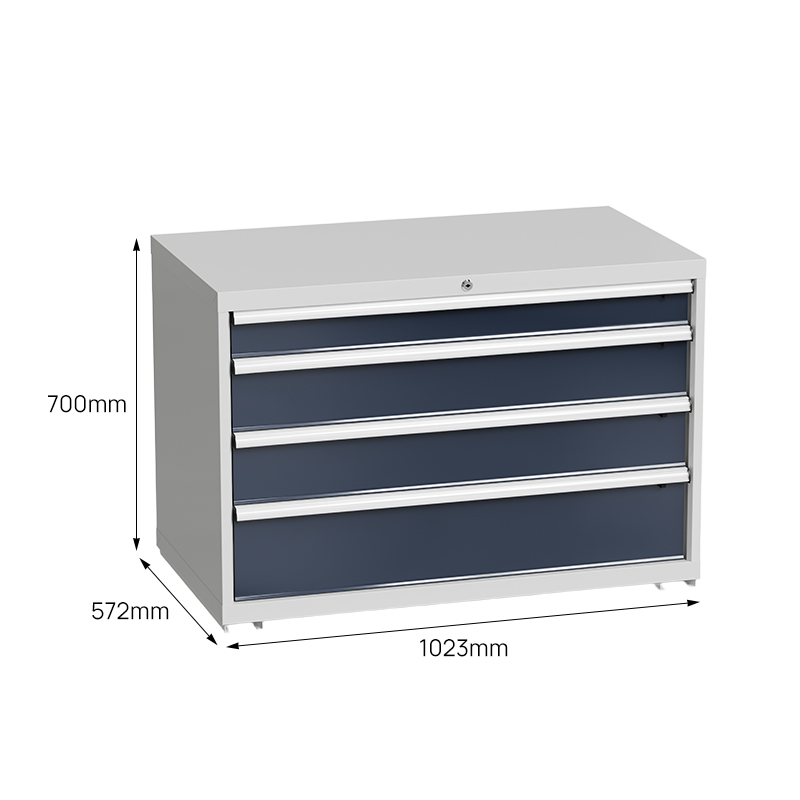

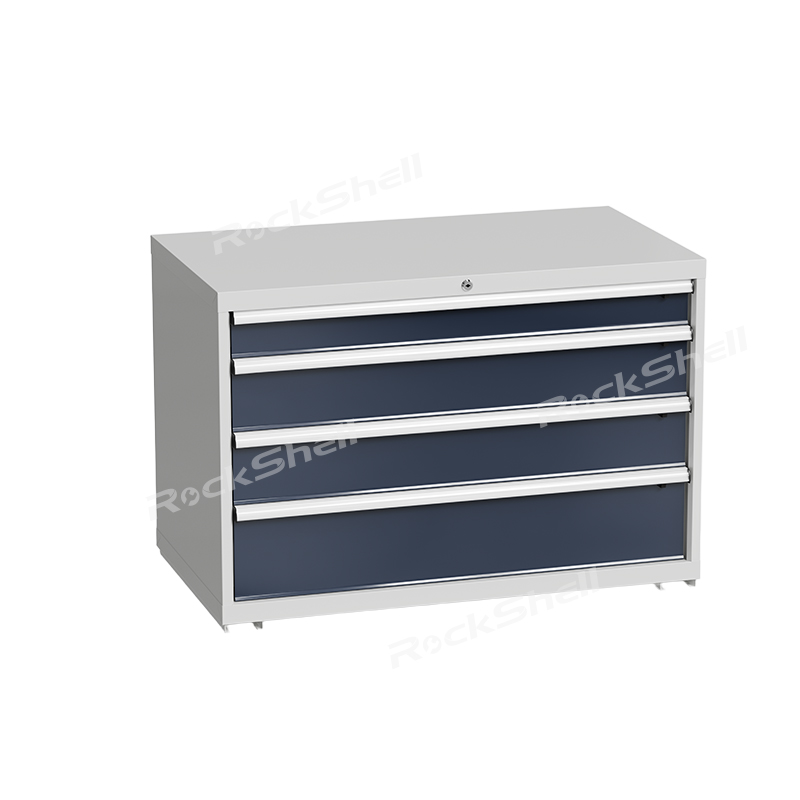

| GT102577004E | W1023*D572*H700 | 4 | Single Slide | 100KG | 85% | 89.4KG/95KG | 0.51 |
| GT102577004V | W1023*D572*H700 | 4 | Double Slide | 150KG | 100% | 103KG/108KG | 0.51 |

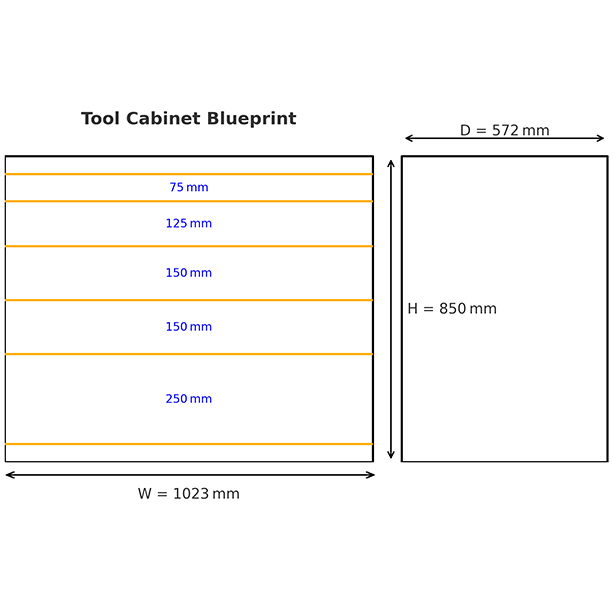

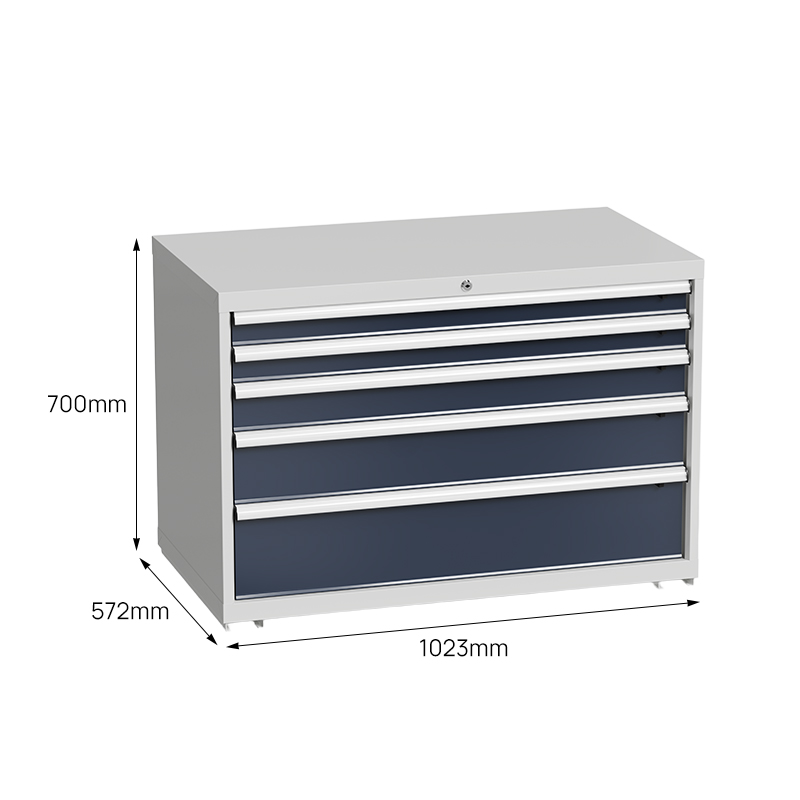

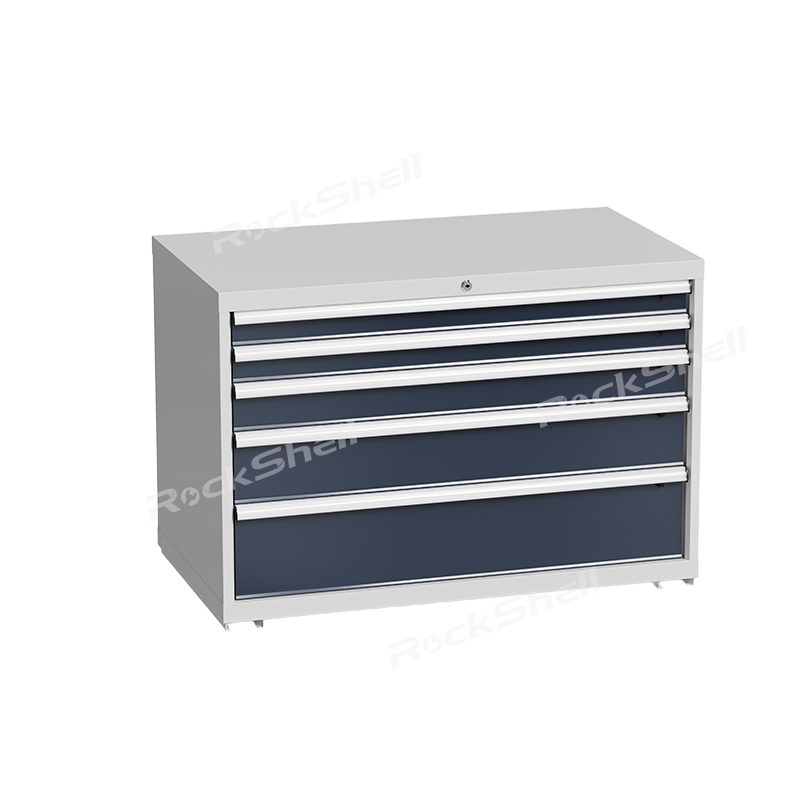

| GT102578505E | W1023*D572*H850 | 5 | Single Slide | 100KG | 85% | 96.8KG/103KG | 0.60 |
| GT102578505V | W1023*D572*H850 | 5 | Double Slide | 150KG | 100% | 113.8KG/120KG | 0.60 |

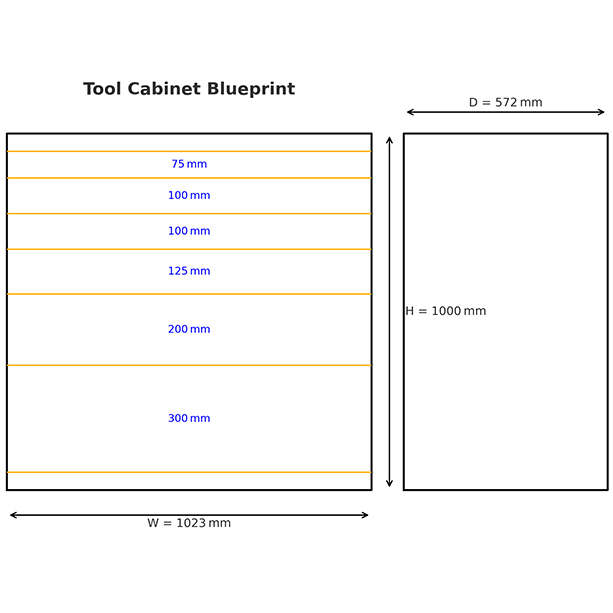

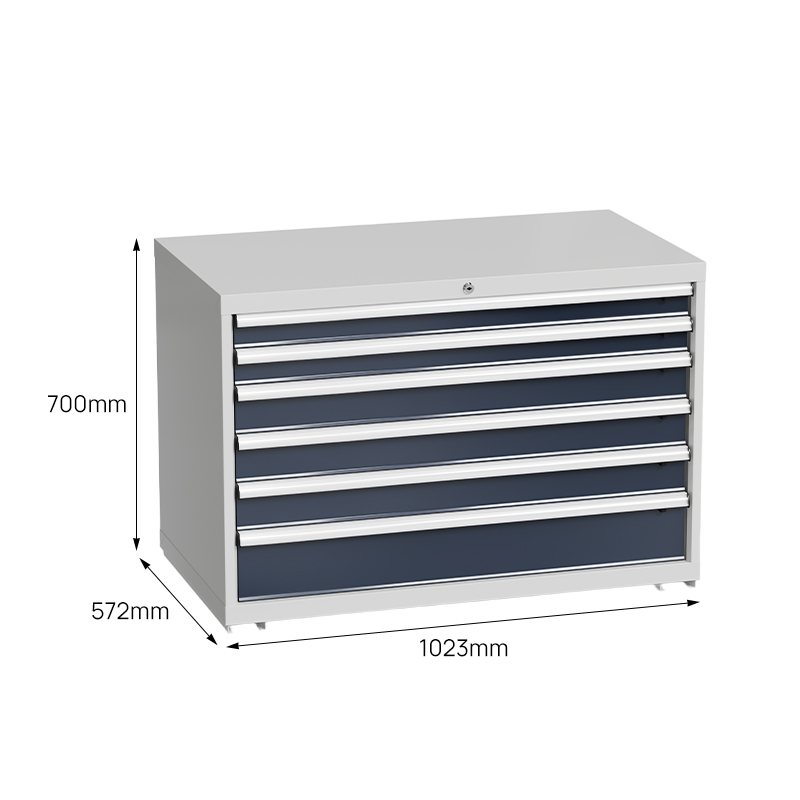

| GT1025710006E | W1023*D572*H1000 | 6 | Single Slide | 100KG | 85% | 111.2KG/117KG | 0.70 |
| GT1025710006V | W1023*D572*H1000 | 6 | Double Slide | 150KG | 100% | 131.6KG/138KG | 0.70 |

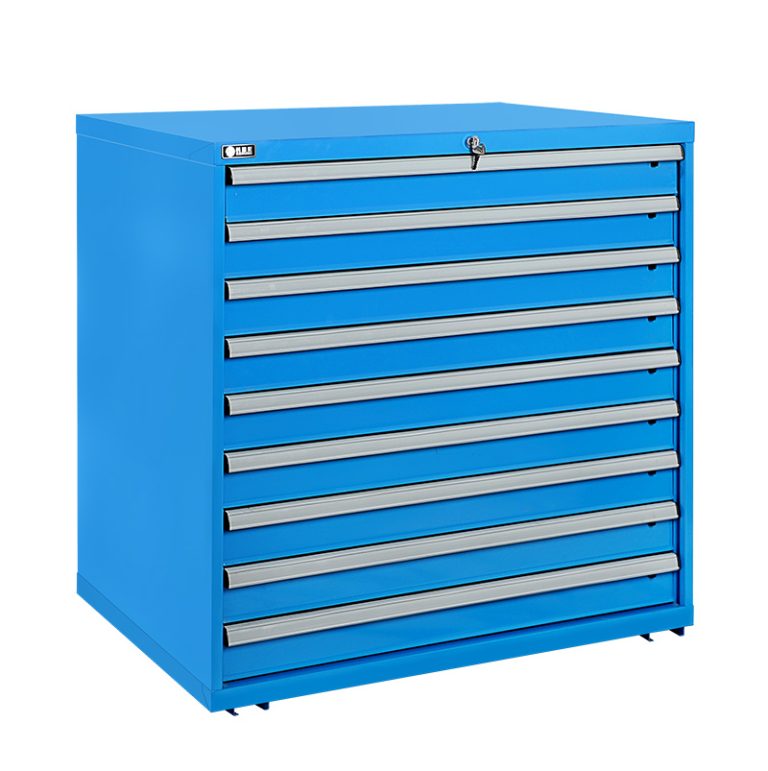

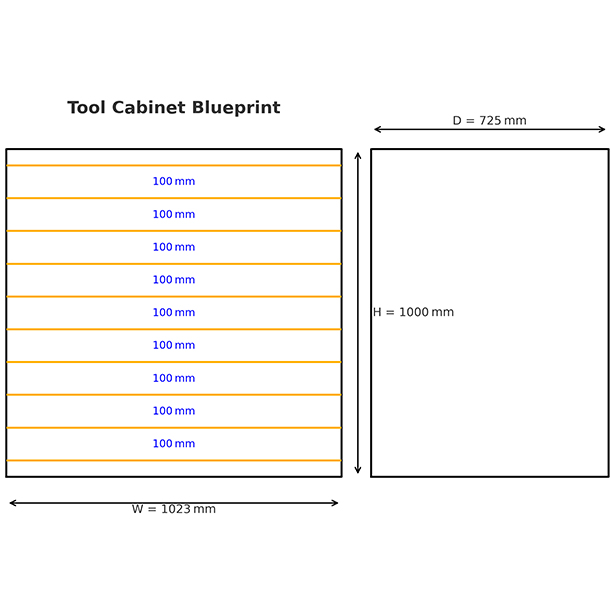

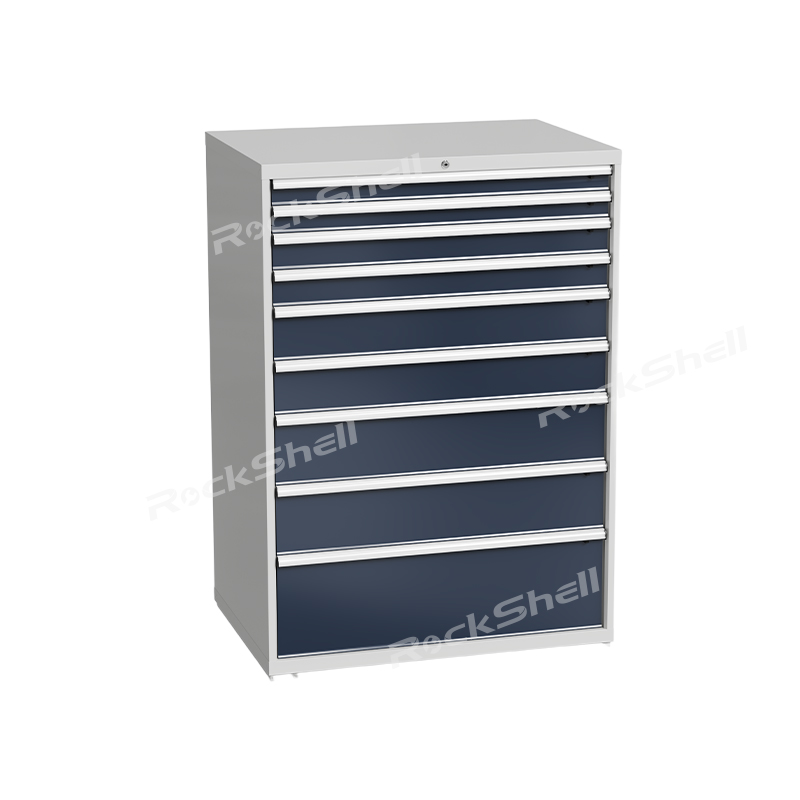

| GT1027210009E | W1023*D725*H1000 | 9 | Single Slide | 100KG | 85% | 155.8KG/163KG | 0.86 |
| GT1027210009V | W1023*D725*H1000 | 9 | Double Slide | 150KG | 100% | 212.4KG/219KG | 0.86 |
PRODUCT FEATURES
Single and double slide rail
Single slide drawer: Supports up to 100 kg with 85% smooth extension, ideal for standard industrial storage.
Double slide drawer: Double-slide design supports 150 kg with 100% full extension, perfect for heavy-duty storage and access.

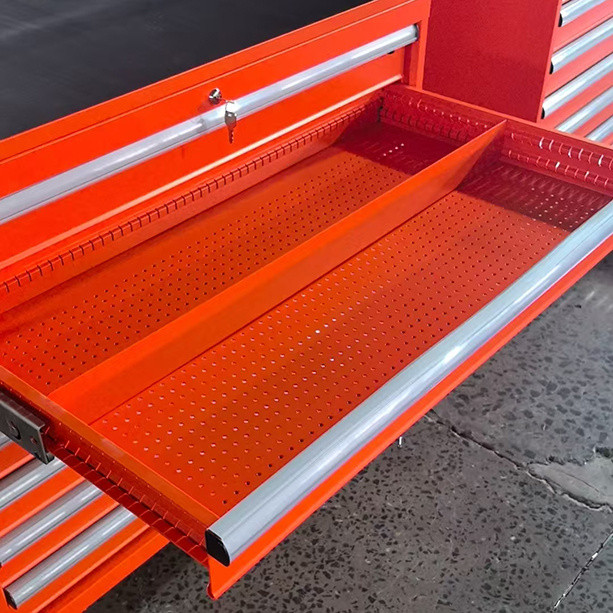

Drawer divider (optional)
Pre-formed divider holes are reserved in the drawer, and optional front-to-back adjustable dividers can be configured. Supports 3×3, 3×4, 3×5, and other customized partition layouts. The drawer space can be freely organized to maximize space utilization.
Centralized lock
Equipped with a central locking system, all drawers can be locked or unlocked with a single lock. Each lock comes with two keys.
Self-locking system
Equipped with self-locking buckle design, effectively preventing drawers from sliding off accidentally.
Interlocking system(optional)
Ensures that only one drawer can be opened at a time, thus preventing tipping and enhancing stability, providing additional security.
CRAFTED FOR PROFESSIONALS
Whether for small components or larger tools, our tool cabinets are designed to deliver reliable and efficient storage solutions, meeting the unique needs of workshops and industrial facilities with precision and excellence.
Trust ROCKSHELL for heavy-duty drawers that are built to endure and elevate your workspace efficiency.
