Durable construction
Multi-drawer design
Ergonomic metal handles
Central locking system
Environmentally friendly powder coating
PRODUCT SPECIFICATIONS

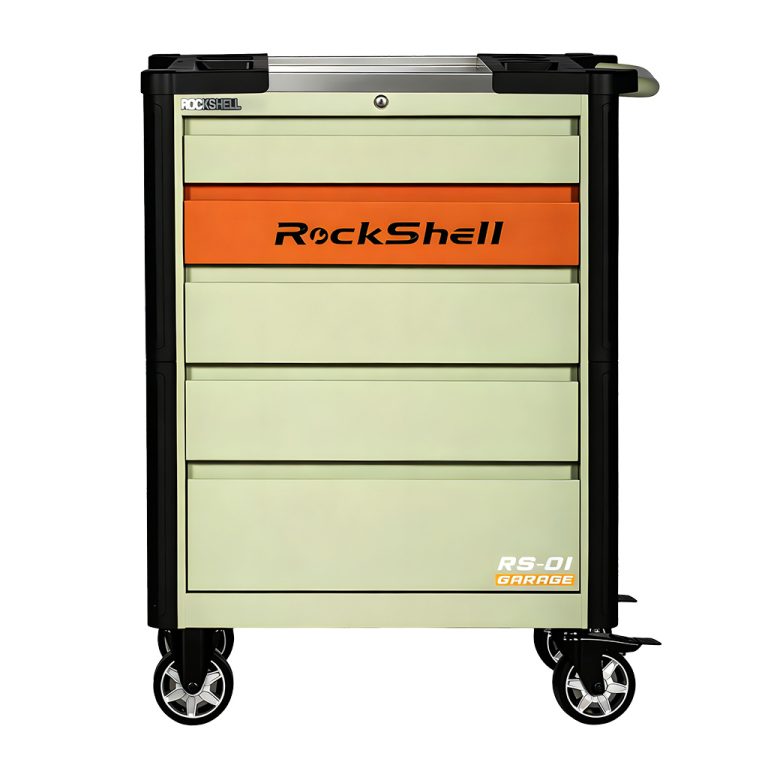

29.5 in 5 Drawer Rolling Tool Cabinet
| Model No. | Size(mm) | Drawer Qty | Slide | Single Drawer Load | Drawer Extension | N.W./G.W. | CBM(m³） |
| green-5 | W750*D503*H1013 | 5 | Three Slide | 45KG | 100% | 63KG/66KG | 0.45 |
| Model | W | D | H | Unit |
|---|---|---|---|---|
| green-5 | 29.5 | 19.8 | 33.7 | in. |
| 750 | 503 | 855 | mm | |
| Overall with casters and handles | 31.1 | 18.1 | 39.9 | in. |
| 790 | 503 | 1013 | mm | |
| Package | 33.66 | 22.36 | 36.2 | in. |
| 855 | 568 | 920 | mm | |
| Drawer Configuration | 1*100mm , 1*130mm , 2*150mm , 1*200mm | |||
| Net Weight | 138.6 lbs / 63kg | |||
| Gross Weight | 145.2 lbs / 66kg | |||
| Container Load | 20’GP: 60 pcs | 40’HQ: 147 pcs | |||
PRODUCT INFORMATION

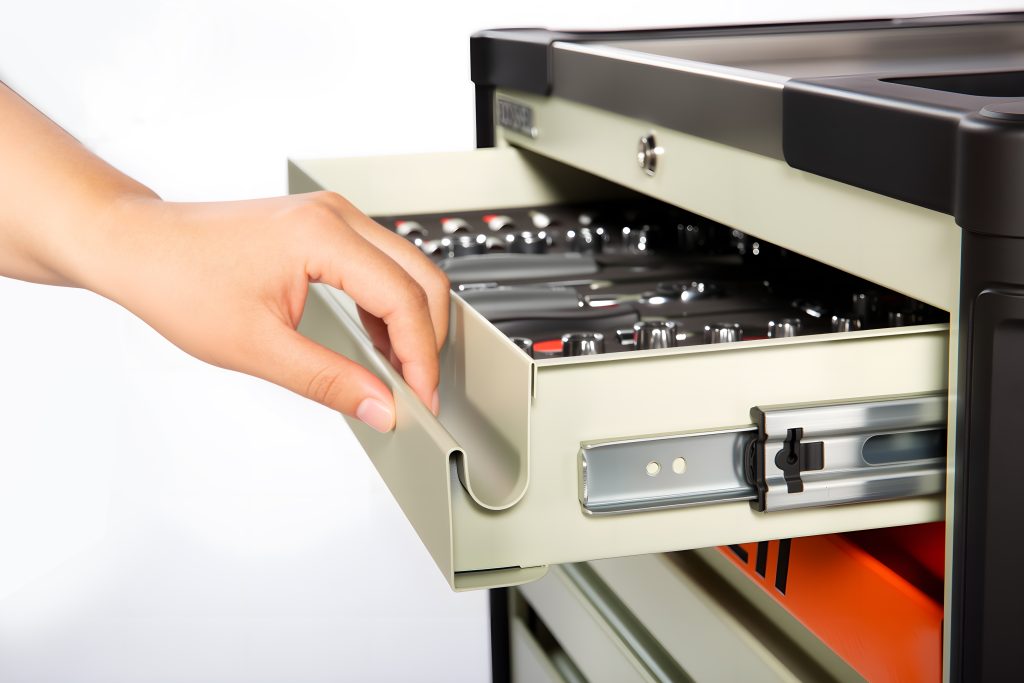

1. Full extension drawers providing easy access to stored items
2. Ergonomic metal side handle for easy gripping and handling
3. Single key lock secures all drawers
4. Soft-close slides help maintain organization, are esistant to accidental opening
5. 5″ x 2″ polyethylene casters (2 stationary and 2 swivel with toe brakes)
PRODUCT FEATURES

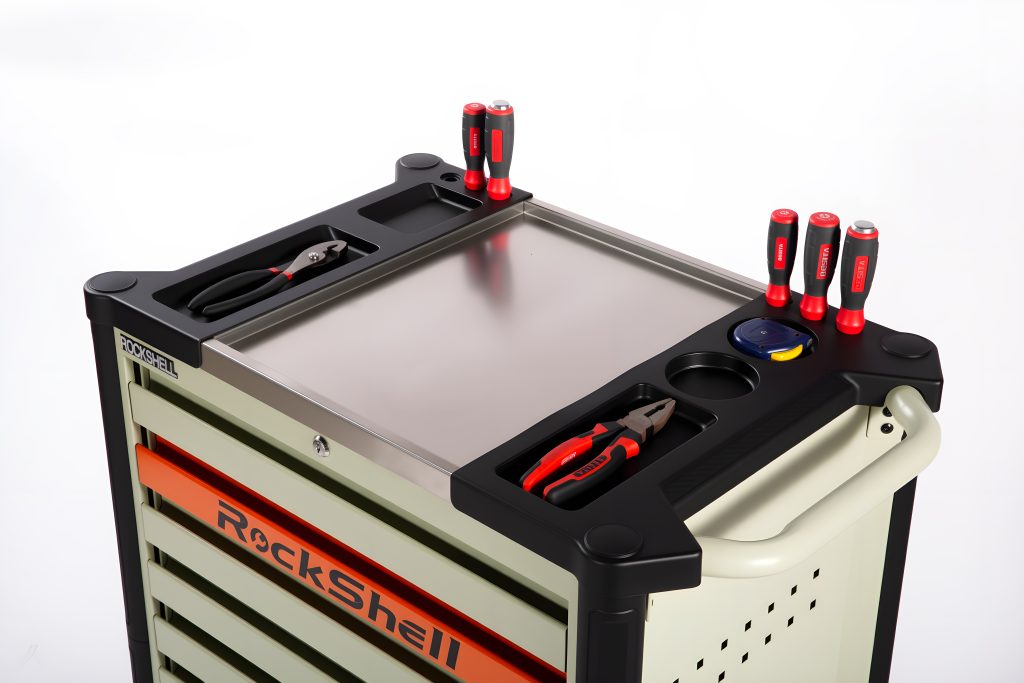

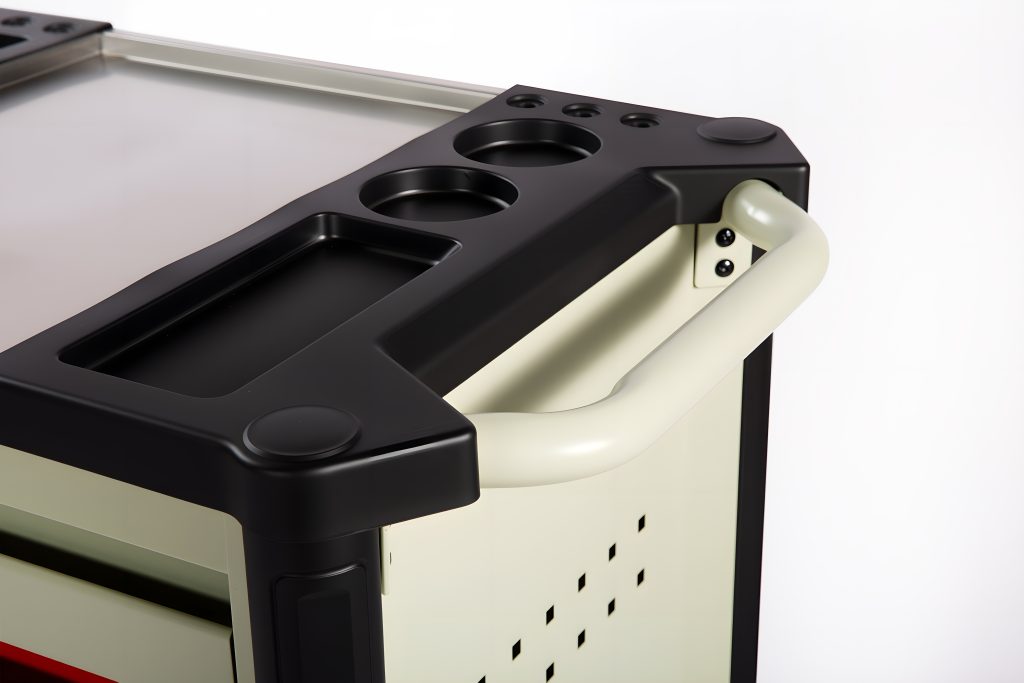

The top of the tool cart
The top of the tool cart is injection molded on both sides with a pre-installed divider frame for easy workpiece storage.
The middle section is made of 304 stainless steel, which is acid and alkali resistant and easy to clean.
Centralized lock
The drawer track adopts a self-priming interlocking mechanism.

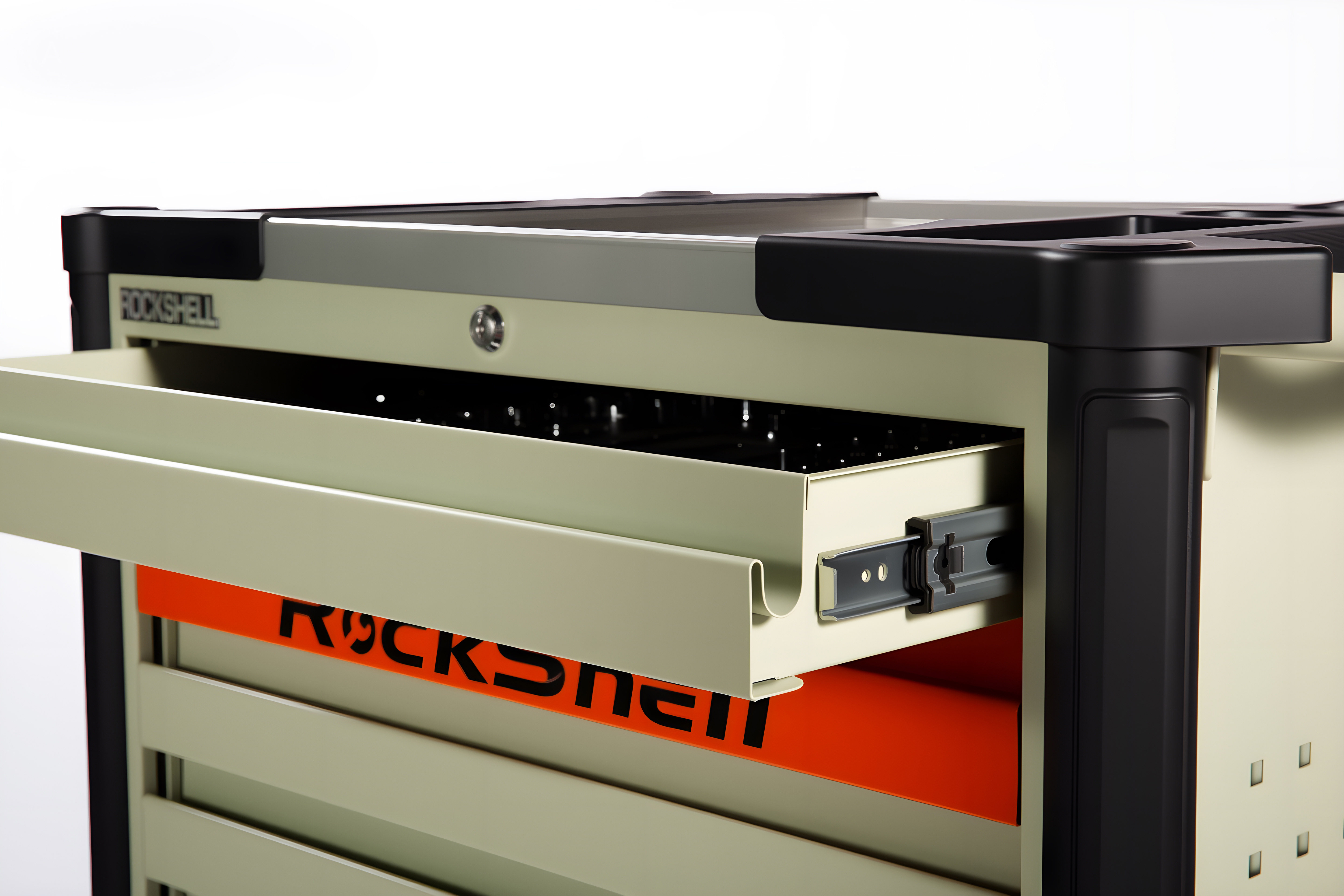

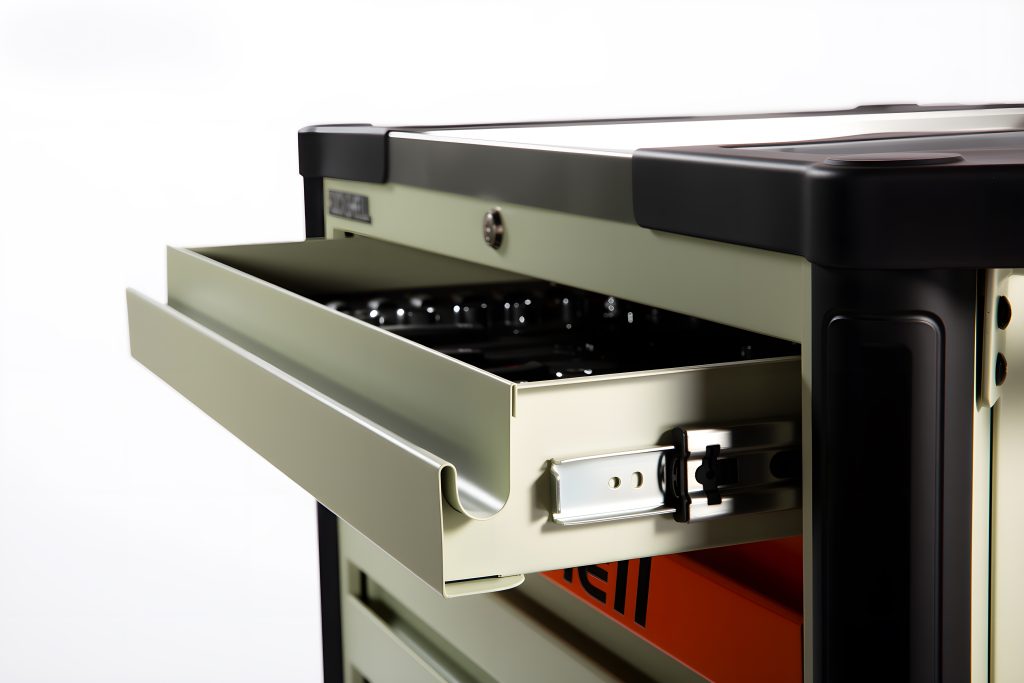

Slide rail
Ball-bearing slides more than 50.000 times of open&close.
Innovative inward-pressing handle
Drawers automatically engage when closing without the need for force, enhancing safety during use.
The drawers are equipped with an anti-tipping device, allowing only one drawer to be opened at a time for safety and stability.
Ergonomic handle
Portable design makes carrying tools less of a chore and easier to move around.

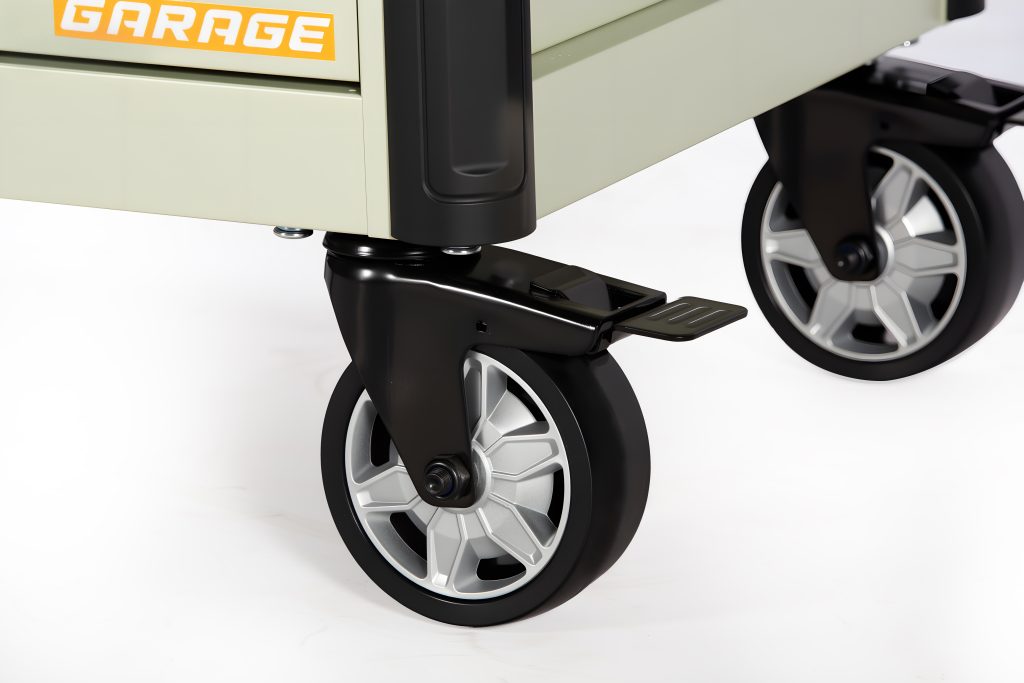

Heavy wheel
2 braked universal wheels and 2 directional wheels make pushing more effortless and more durable.
REGARDING PRODUCT FAQS
A: Yes. Most models feature a reinforced steel top, suitable for placing everyday work tools such as electric drills, pliers, and measuring instruments. Some models can support a top load of over 100 kg. For specific load recommendations, please refer to the product description or contact customer service for confirmation.
A: We polish welds and edges after assembly to improve appearance and safety.
A: Our prices are slightly higher than some competitors, but with a 98.9% pass rate, our products offer greater reliability and durability. It’s a worthwhile choice for users who value consistent quality.
