High stability
Easy installation
Effortless mobility
PRODUCT INFORMATION
-Thickened steel material: 1.0 – 1.5mm, the whole cart can bear 500kgs totally.
-Industrial casters: 3″ TPR material, silent when moving, bear 150kgs per caster.
– Rivet structure: high precision embedded rivet nut makes the cart more durable and easier to install.
– Larger size: 820mm height, 700mm width, 420mm depth.
– DIY support: various accessories are optional, pegboard, parts box, drawers, tools.
– OEM support: size, color, brand, carton design all can be customized.
PRODUCT SPECIFICATIONS

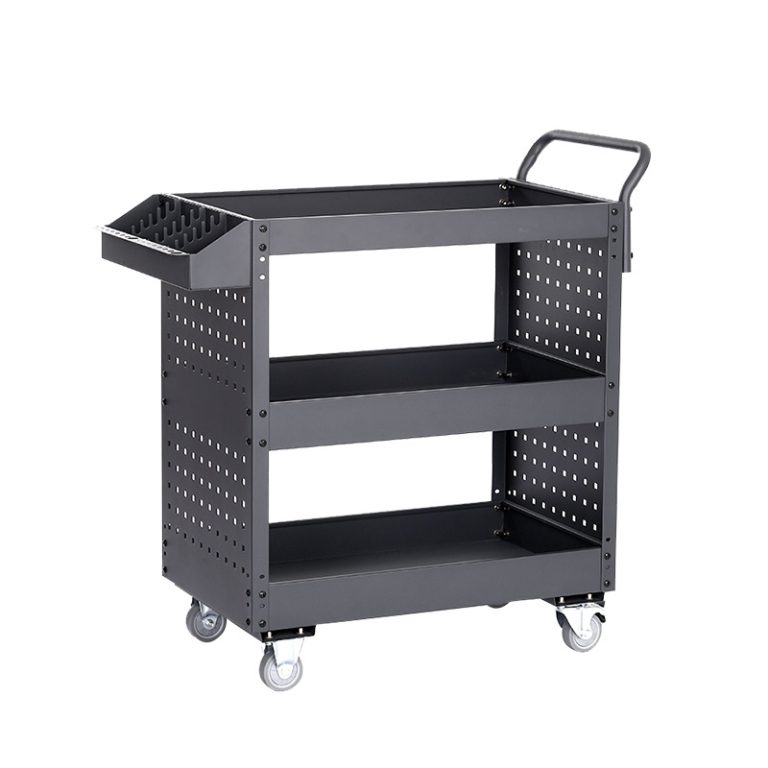

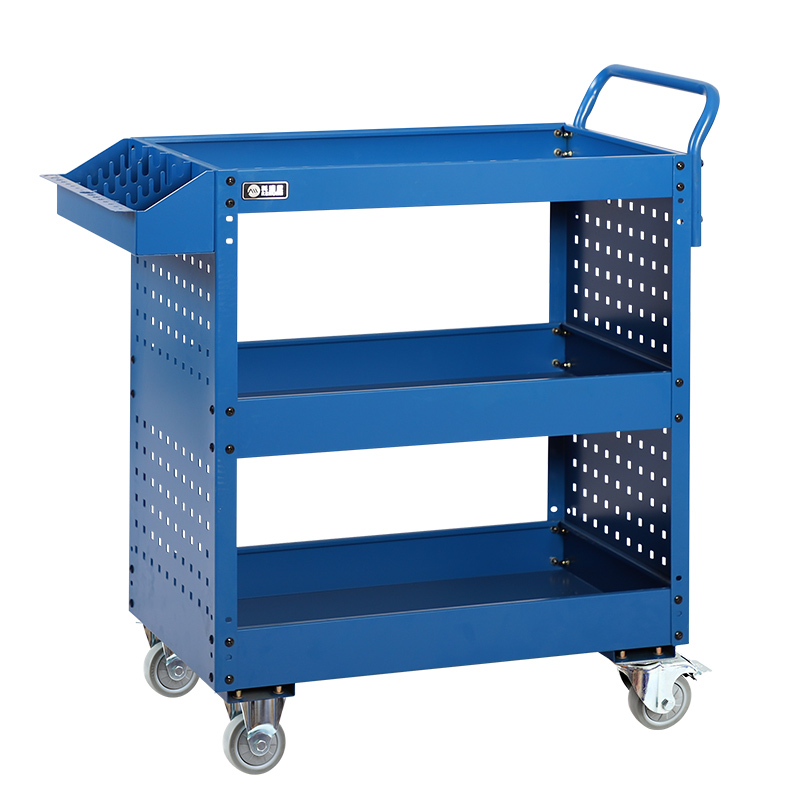

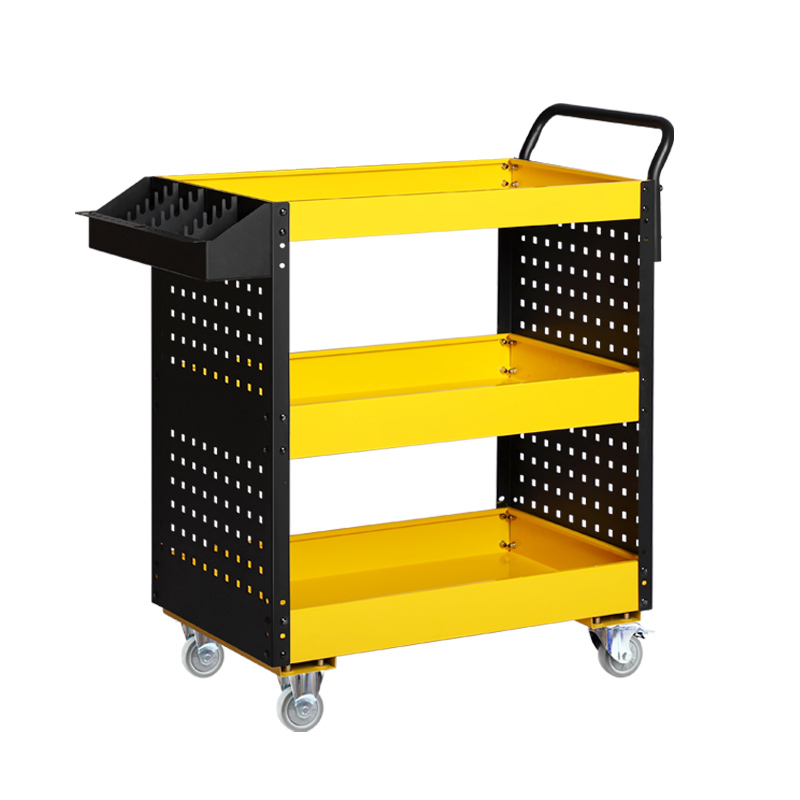

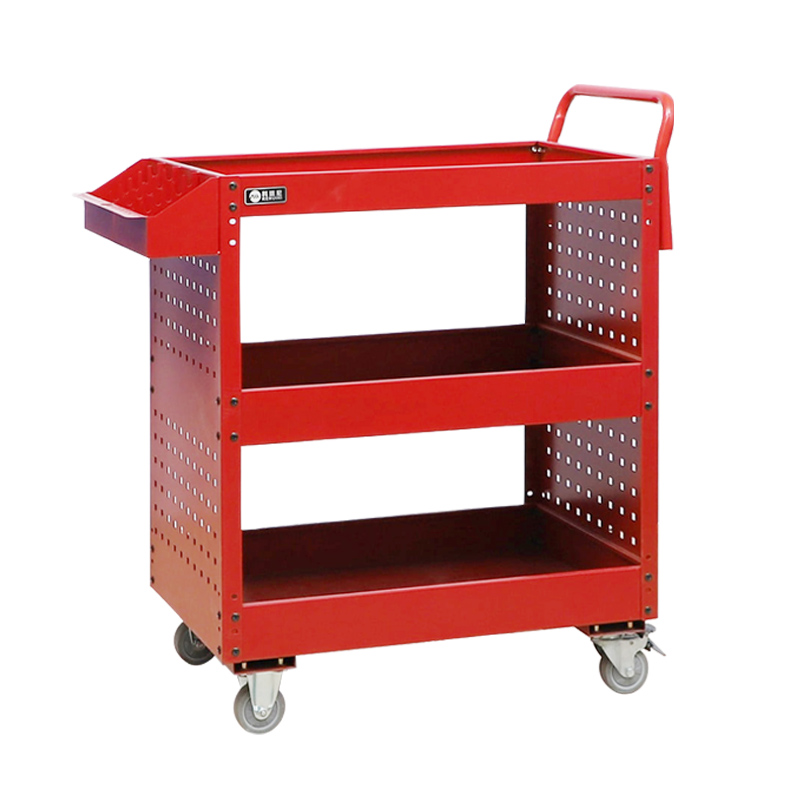

GH30201-7024 Series Tool Cart
| Model No. | Size(mm) | Side panel | Tool box | Color | Total load capacity | N.W./G.W. | CBM(m³) |
| GH30201-7024 | W700*D420*H820 | 2 | 1 | Blue, Gray, Red, Yellow | 500KG | 22.7KG/23.7KG | 0.09 |
PRODUCT FEATURES
Integrated handle
1.5mm bare thickness high-quality cold-rolled steel plate,comfortable to hold, in line with human body mechanics.The handle position is comfortable for users not to bend over while operating.
Rivet structure
The whole vehicle is equipped with high-precision embedded rivet nuts. The riveting is firm, durable and has strong locking force.You only need to fix the screws to install,which makes the installation more convenient.
Industrial casters
3-inch tpr material, double bead plate bracket structure,surface galvanized. Each caster can bear 150kg.
Wheel base
The independent thickened wheel base plate distributes the overall force from the point to the surface, ensuring the vehicle’s carrying capacity is stronger and more stable.
REGARDING PRODUCT FAQS
A: Regular thickness is 0.5-0.7mm, we can produce from 0.35 to 1.2mm.
A: 3 years quality guarantee.
A: Yes, we can produce by your samples or technical drawings. We can build the molds.
