Ergonomic height settings
Safe and environmentally friendly
Modular design
Conforms to industry standards
PRODUCT INFORMATION
-Humanized design, comfortable and beautiful, in line with ergonomic principles, improve work efficiency.
-Modular design, flexible and changeable, a variety of accessories can be combined at will.
-Standardized design, can meet customers’ customized products according to their needs.
-Imported high-quality countertops, with overall anti-static, fire-proof and wear-resistant characteristics.
-The metal surface is processed by pickling, phosphating, high-voltage electrostatic powder spraying and other processes, which is smooth and beautiful.
-The overall anti-static design fundamentally eliminates the threat of static electricity to the product.
PRODUCT SPECIFICATIONS
DWJ②Ⓐ Series Workbenches
| Model No. | Size(mm) | Drawer Qty | Slide | Total average load | N.W./G.W. | CBM(m³） |
| DWJ②Ⓐ15075ⓩ | W1500*D750*H800 | 2 | Three Section Slide | 500KG | 58.5KG/60KG | 0.26 |

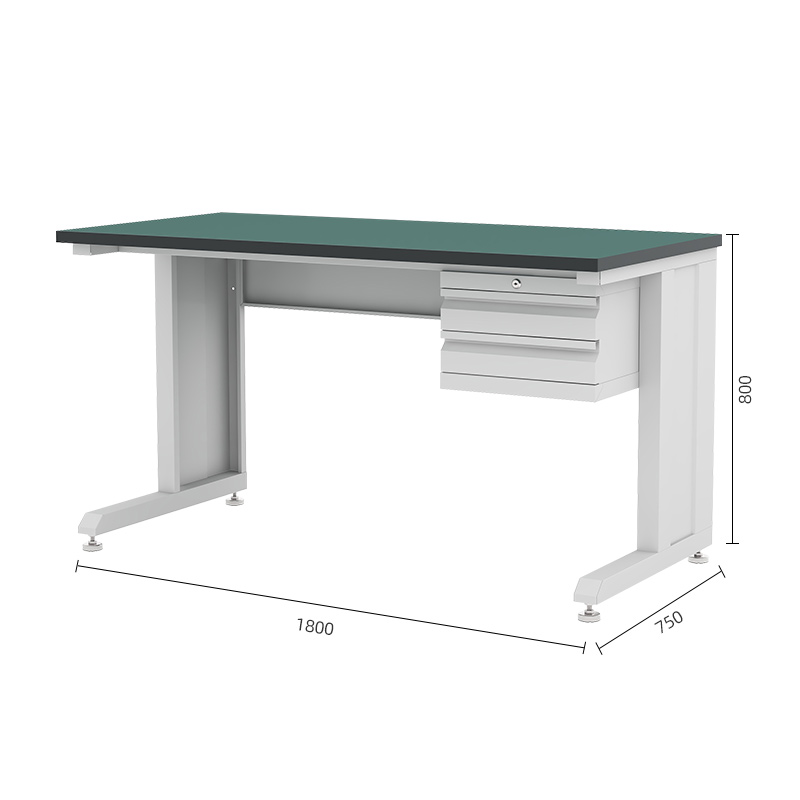

| DWJ②Ⓐ15075②ⓩ | W1800*D750*H800 | 2 | Three Section Slide | 500KG | 69KG/72KG | 0.27 |
PRODUCT FEATURES
Customizable countertop
The workbench surface is anti-static, featuring high flatness, vibration absorption, and impact resistance. Optional tabletop materials include stainless steel, solid wood, steel plate, and MDF.
Hanging panel (optional)
Height of the hanging panel is freely adjustable. Three types of panels—square-hole panels, louvered panels, and file panels—are available in two standard sizes.
Adjustable tilted shelf (optional)
The shelf height is adjustable,with a tilting angle adjustable up to 15°. A 20mm raised edge helps prevent items from slipping off.
Two drawer hanging cabinet（optional）
Equipped with a three-section rail slide, the drawer supports a 45kg load and allows 100% extension. The slide has been tested for 50,000 open-close cycles. It is designed with an integrated handle panel.
REGARDING PRODUCT FAQS
A: First, check that the grounding system is good. If there is no problem with the grounding, the performance may have deteriorated due to aging or contamination of the table material. You can try cleaning it. If there is still no improvement after cleaning, you may need to replace the table or the entire workbench.
A: If you have a drawing of your wanted workbench, You can show the drawing to our salesman, then will discuss with our engineer about the produce process, get the Detailed Quotation list.
If you do not have the drawing, pleas tell our salesman what the workbench size, functions, configurations and special needs, Our sales man will make a Drawing with our engineer. We will give you the quotation list when you confirm the drawing and details.
A: Table size and capacity: Choose the appropriate size and load capacity according to the work area and weight of the equipment to be placed.
Table material: Common materials include antistatic fireproof board, antistatic rubber, etc., which can be selected according to wear and corrosion resistance requirements.
Grounding system: Make sure the ground connection is reliable and convenient.
Optional accessories: Select appropriate accessories according to actual work needs to improve work efficiency.
Cost Budget: Consider cost effectiveness while meeting performance requirements.
Compliance with relevant standards: For example, ANSI/ESD S20.20, etc.
