Range of sizes 8 standard colors
※ All custom RAL available
Bespoke service for over-sized cabinets
Can be fully personalised
Safe, neat and orderly storage
Long-Lasting Warranty
PRODUCT INFORMATION
1.Modular and Customizable Storage: This heavy-duty cabinet system employs a modular design, allowing users to flexibly customize storage solutions based on their specific workflow and tooling.
2.Adjustable and High-Capacity Shelving: Internal shelves are adjustable in 25 mm increments, with each shelf capable of withstanding a uniform load of up to 150 kg for storing heavy items. An optional multi-drawer tool cabinet is available, with each drawer also having a 150 kg load capacity.
3.Choice of Heavy-Duty Drawer Slides: Users can select between single-rail and triple-rail drawer slides to accommodate different load capacities and desired smoothness of operation.
4.Optional Modular Back Panel for Enhanced Organization: An optional modular back panel can be added to effectively utilize the space behind the worktop, expanding tool hanging and storage capabilities for a more organized and efficient work area.
PRODUCT SPECIFICATIONS
41000 Series Industrial Storage Cabinet
| Model No. | Size(mm) | Number Of Configurations | Total Weight of Laminate | N.W./G.W. | CBM(m³） |

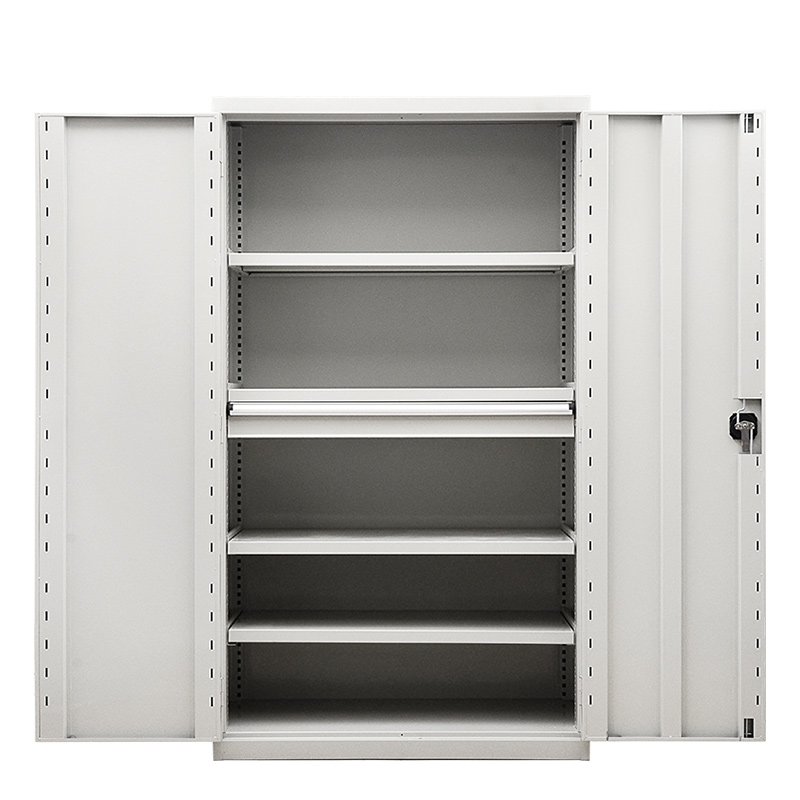

| GF41000-7035 | W1023*D500*H1800 | 5 | 150KG | 100.3KG/105KG | 1.00 |

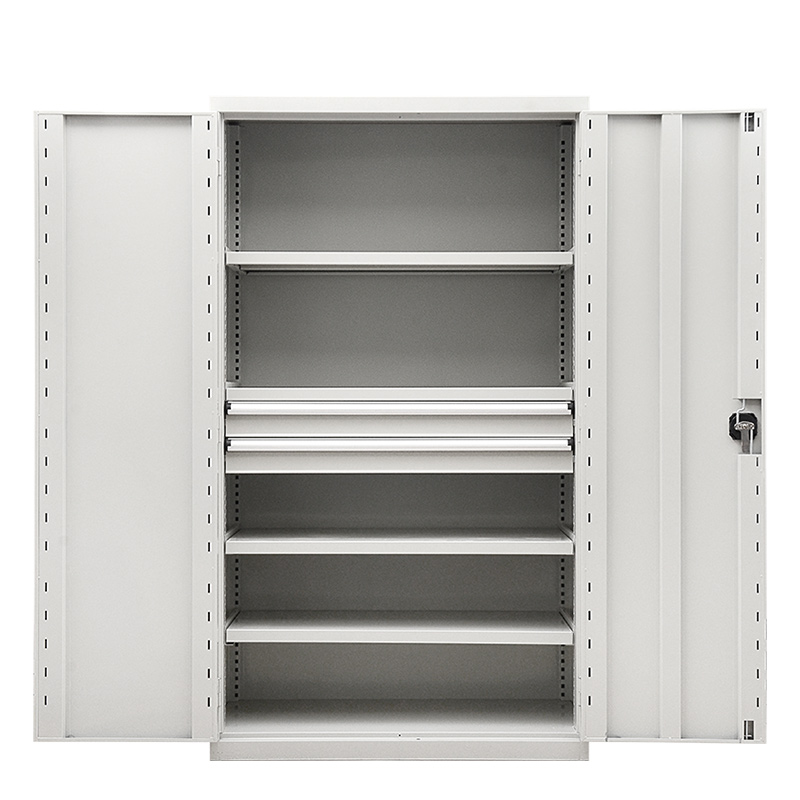

| GF42000-7035 | W1023*D500*H1800 | 6 | 150KG | 107.8KG/112KG | 1.00 |

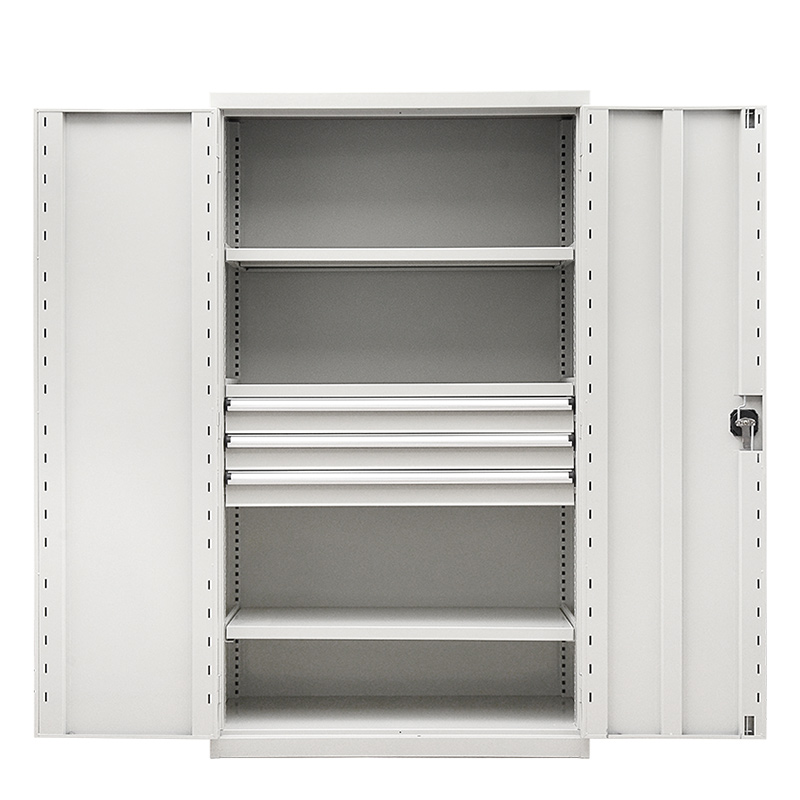

| GF33000-7035 | W1023*D500*H1800 | 7 | 150KG | 109.6KG/115KG | 1.00 |

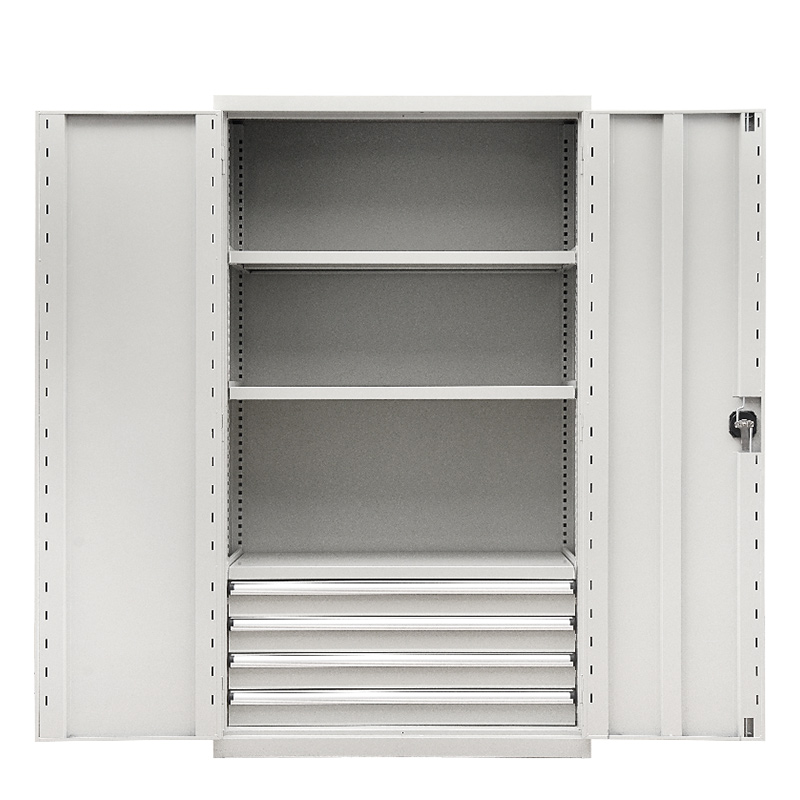

| GF34000-7035 | W1023*D500*H1800 | 8 | 150KG | 117.1KG/121KG | 1.00 |

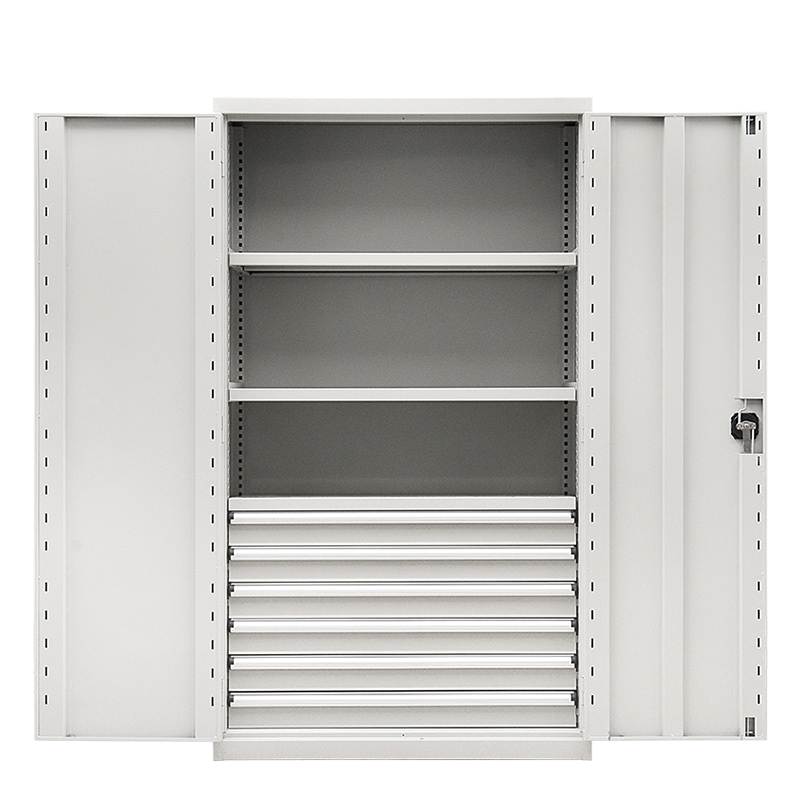

| GF36000-7035 | W1023*D500*H1800 | 10 | 150KG | 132.1KG/136KG | 1.00 |

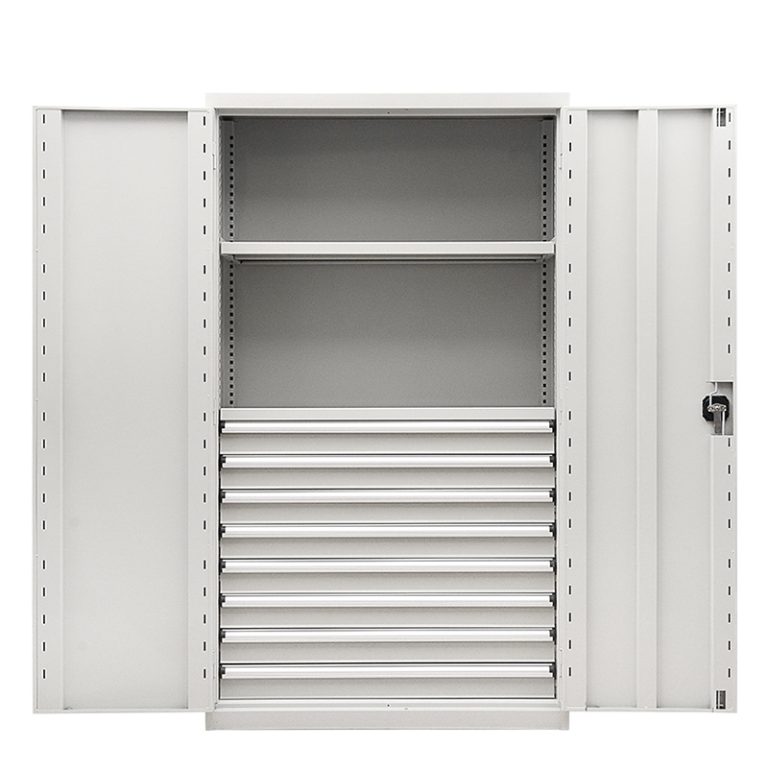

| GF28000-7035 | W1023*D500*H1800 | 11 | 150KG | 141.4KG/145KG | 1.00 |
PRODUCT FEATURES
Patented modular design
The hanging panel, louvered panel, and square-hole pegboard are freely removable and interchangeable. The back pegboard, adjustable shelf, and drawers can be configured as needed.
Drawer load capacity
The slide rail is made of 3mm high-quality cold-rolled steel plate. Standard single drawer has a load capacity of 100kg and 85% extension for daily access. For special applications, full-extension(100%) drawers are available with a 150kg load capacity.
Adjustable shelf
The shelf is supported by integrated front and rear laminate brackets. It can be adjusted up and down, with a maximum load capacity of 150 kg per shelf.
Refined copper core round lock
Brass lock cylinder, with the upper and lower lock rod connected locking mechanism, to ensure the smooth operation of the lock, high security.
Adjustable feet
Used to compensate for uneven floors and ensure stable placement of the storage cabinet.Adjustable range: 40–80 mm.
REGARDING PRODUCT FAQS
The overall material is steel, but this storage cabinet does not support hanging on the wall.
It depends on the specifications of the product you purchased. The fastest time is ten minutes to assemble.
T/T 30% deposit in advance, with the remaining 70% balance payable before shipment.
