Range of sizes 8 standard colors
※ All custom RAL available
Bespoke service for over-sized cabinets
Can be fully personalised
Safe, neat and orderly storage
Long-Lasting Warranty
PRODUCT INFORMATION
1.This industrial storage cabinet features a flexible modular design, allowing the number of drawer layers to be increased or decreased according to actual storage needs.
2.The internal partition system can be selected based on the size and type of tools to enable refined management and maximize storage space utilization.
3.The drawer tracks are precision-stamped from 3 mm thick high-strength steel and integrated with high-quality ball bearings, ensuring each drawer slides smoothly even under an average load of up to 150 kg.
4.For safe usage, a reliable safety latch is designed at the end of each track to effectively prevent drawers from accidentally falling out when fully extended.
5.The number of shelves inside the cabinet can also be freely configured based on storage requirements.
6.Additionally, two hanging board installation positions are reserved at the back, and eight optional positions are available on the inside of the cabinet doors. Users can choose between louvered or square-hole hanging boards for personalized tool organization based on tool characteristics and size.
PRODUCT SPECIFICATIONS

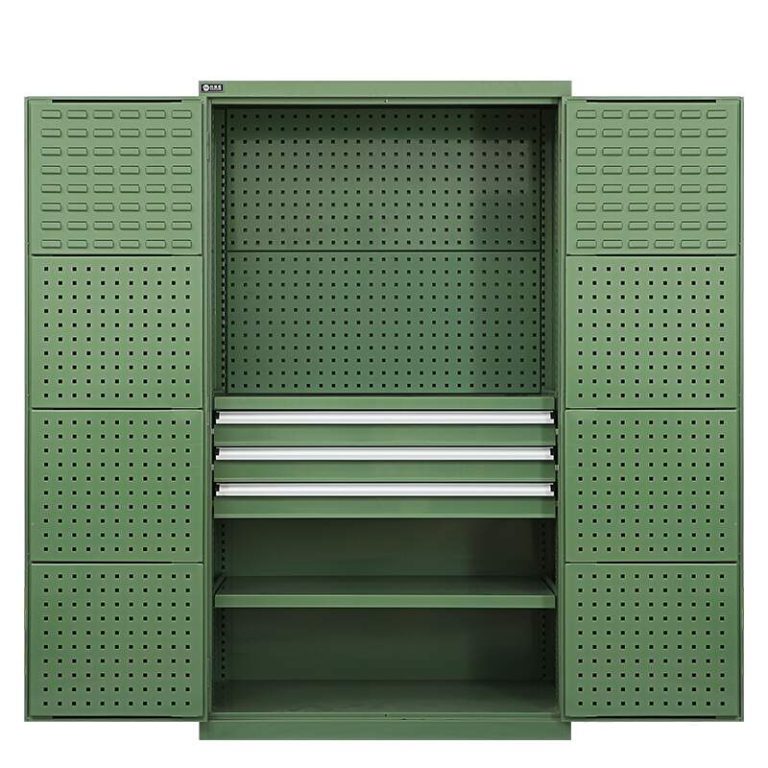

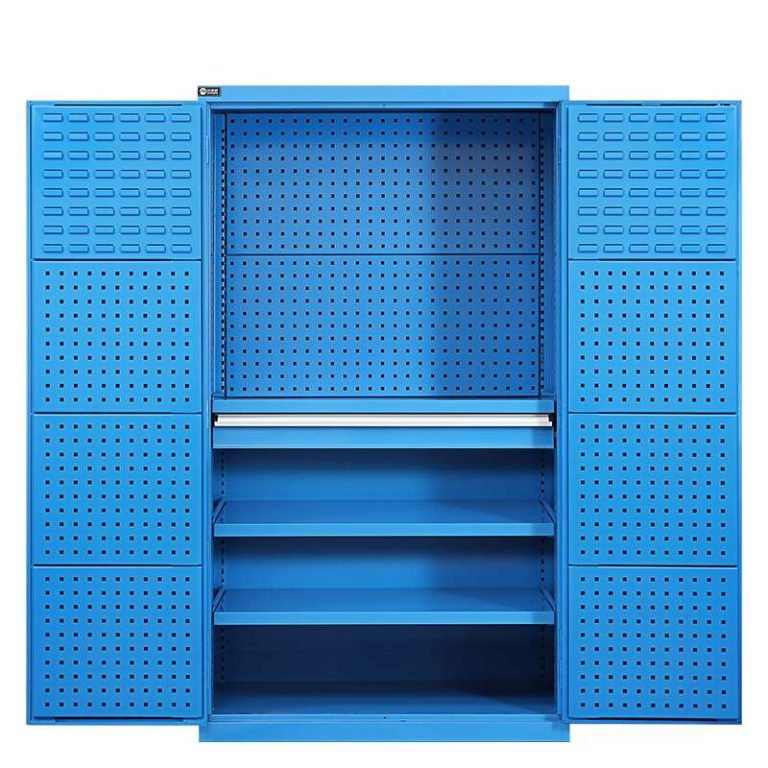

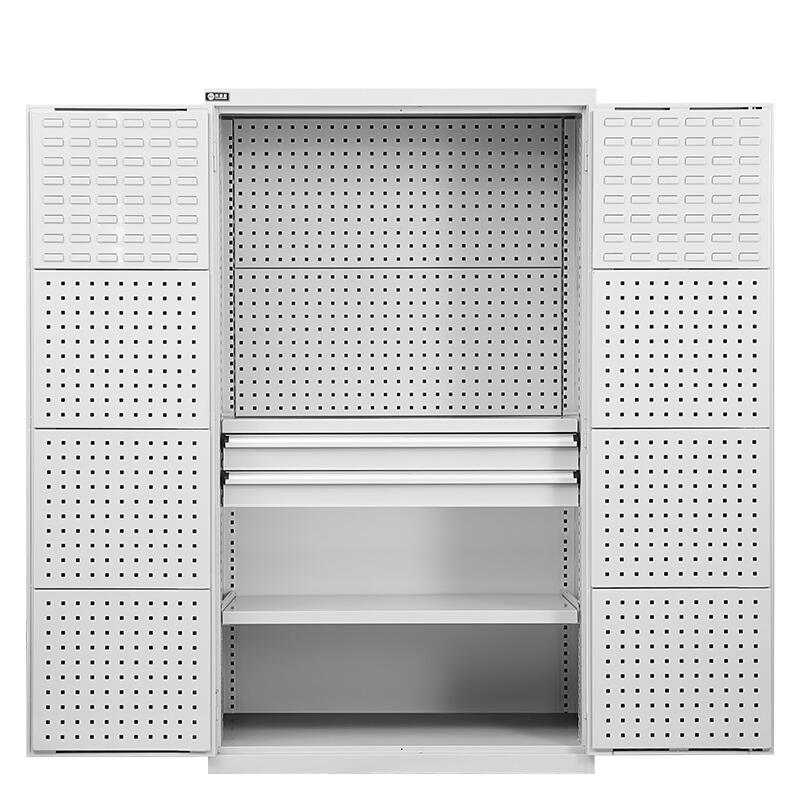

22262 Series Industrial Storage Cabinet
| Model No. | Size(mm) | Number Of Configurations | Total Weight of Laminate | N.W./G.W. | CBM(m³） |
| GF31262-5015 | W1023*D500*H1800 | 15 | 100KG | 125KG/130KG | 1.00 |
| GF31262-7035 | W1023*D500*H1800 | 15 | 100KG | 125KG/130KG | 1.00 |
| GF31262-6011 | W1023*D500*H1800 | 15 | 100KG | 125KG/130KG | 1.00 |
| GF22262-5015 | W1023*D500*H1800 | 15 | 100KG | 126.8KG/131KG | 0.93 |
| GF22262-7035 | W1023*D500*H1800 | 15 | 100KG | 126.8KG/131KG | 0.93 |
| GF22262-6011 | W1023*D500*H1800 | 15 | 100KG | 126.8KG/131KG | 0.93 |
| GF23262-5015 | W1023*D500*H1800 | 15 | 100KG | 131.8KG/136KG | 0.93 |
| GF23262-7035 | W1023*D500*H1800 | 15 | 100KG | 131.8KG/136KG | 0.93 |
| GF23262-6011 | W1023*D500*H1800 | 15 | 100KG | 131.8KG/136KG | 0.93 |
PRODUCT FEATURES
Patented modular design
The hanging panel, louvered panel, and square-hole pegboard are freely removable and interchangeable. The back pegboard, adjustable shelf, and drawers can be configured as needed.
Drawer load capacity
The slide rail is made of 3mm high-quality cold-rolled steel plate. Standard single drawer has a load capacity of 100kg and 85% extension for daily access. For special applications, full-extension(100%) drawers are available with a 150kg load capacity.
Adjustable shelf
The shelf is supported by integrated front and rear laminate brackets. It can be adjusted up and down, with a maximum load capacity of 150 kg per shelf.
Refined copper core round lock
Brass lock cylinder, with the upper and lower lock rod connected locking mechanism, to ensure the smooth operation of the lock, high security.
Adjustable feet
Used to compensate for uneven floors and ensure stable placement of the storage cabinet.Adjustable range: 40–80 mm.
REGARDING PRODUCT FAQS
Industrial lockers are lockers designed for use in industrial or similar environments for employees or visitors to store personal belongings, tools, equipment, or other items. They are typically more robust and durable than residential lockers to meet the demands of industrial environments.
Determine the number and size of compartments needed.
The type and size of items to be stored: For example, whether you need to store long tools, work clothes, etc.
Whether the environment is indoor or outdoor, wet, corrosive, etc.
Whether high security locks or other security measures are required.
The intensity of daily use needs to be withstood.
Lockers of different materials and designs have different prices.
Some items may require ventilation.
Whether a specific color or design is required.
Yes, we can send some sections of sample for your reference by express.
Just leave us an inquiry in the message box below. We will offer you best price with best quality and service..
