In modern machining environments, tool organization directly impacts productivity and operational efficiency. A well-designed CNC tool holder trolley ensures that tool holders are stored safely, transported easily, and accessed quickly during daily operations.
The BT50 Series CNC Tool Trolley is engineered specifically for heavy-duty industrial use, offering high load capacity, flexible angle adjustment, and professional-grade mobility.
Designed for BT50 Tool Holder Applications

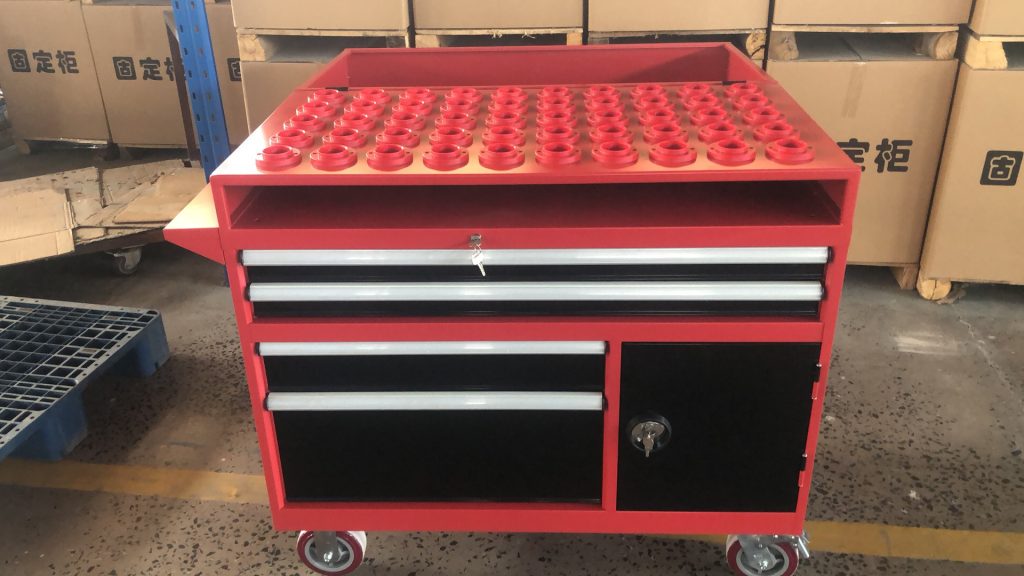

The BT50 Series CNC Tool Holder Trolley is purpose-built to accommodate BT50 tool holders commonly used in CNC machining centers.
Model Specifications (BT50-GⅠ / BT50-GⅡ)
- Size: W1060 × D606 × H880 mm
- Load Capacity: Up to 1000 kg
- Net Weight / Gross Weight: 50 kg / 51 kg
- Volume: 0.60 CBM
With a robust structural design, the trolley provides secure and organized storage while supporting heavy industrial loads.
Adjustable Zigzag Hanging Hole System
One of the key features of this CNC tool holder trolley is its zigzag hanging hole design.
This system allows operators to adjust the tool holder angle according to operational needs. Available positioning angles include:
- 0°
- 15°
- 30°
- 45°
Adjustable angles improve tool visibility and accessibility, making tool changes faster and more efficient in high-demand machining environments.
Heavy-Duty Structure with Integrated Handle
The trolley handle is manufactured using integrated welded round tubing, ensuring:
- Strong structural integrity
- Long-term durability
- Clean and professional appearance
This reinforced handle design enhances maneuverability while maintaining a robust industrial build.
Practical Tool Workbench Surface
The upper work surface of the CNC tool holder trolley is equipped with:
- Anti-slip rubber mat
- Raised edges on all sides
This design prevents workpieces or components from slipping during handling, providing a safe and practical temporary workspace directly on the trolley.
Integrated File Storage Slot
Efficient machining management often requires documentation close at hand.
The trolley includes a file storage slot designed to accommodate A4 folders or operational documents. This feature allows technicians to keep setup sheets, machining programs, or inspection documents organized and accessible.
Industrial-Grade Polyurethane Casters
Mobility is essential in CNC workshops.
The BT50 Series trolley is equipped with high-quality 4-inch polyurethane casters, supporting a total load capacity of up to 1000 kg.
Polyurethane wheels provide:
- Smooth rolling performance
- High wear resistance
- Floor protection
- Stable load distribution
This ensures reliable performance even in demanding industrial environments.
Why Choose a Professional CNC Tool Holder Trolley?
Compared to makeshift storage racks or stationary cabinets, a dedicated CNC tool holder trolley offers:
- Organized tool storage
- Faster tool change processes
- Improved workshop safety
- Mobile flexibility between machines
- Structured tool management
For CNC machining centers operating with BT50 tool systems, investing in a heavy-duty CNC tool holder trolley enhances workflow efficiency and protects valuable tooling assets.
